Amplificator integrat cu DAC Gato Audio DIA-250S

The Gato Audio DIA-250S is the school example of how to merge excellent sound quality, perfect design, profound electrical circuits and aptX Bluetooth technology.

S is for "Super"

- this brand new amplifier may look like the standard DIA-250 amplifier we introduced three years ago, but in fact we put more than a years work into improve every part of the DIA-250s already fantastic award winning performance. We changed and improved the electrical circuits and layouts in more than twenty ways, the most significant being:

• Optimized mains filter

• Improved general and local power supplies

• New input stage

• Improved output stage

• New analogue stages in the D/A converter

• Improved digital signal routing

• Updated firmware

• Improved connectors

• Incorporated aptX Bluetooth module

More details, better micro dynamics and more "air" around the performing musicians. Everything is served with naturalness and a musicality normally reserved big expensive class A/B amplifiers - the result is stunning!

Class-D with smooth analogue music

The DIA-250S amplifier offers a state of the art Class-D output stage with dedicated and optimized switch mode power supplies. The multiple stage power amplifier is built around proven technology from International Rectifier, optimized with a precision high frequency oscillator and PWM modulator. A pair of precision switching MOS-FET transistors, with super low on-resistance ensures the high frequency switching is done perfectly and with as little loss as possible. The output filters are made from quality PP capacitors and low DCR coils, converting the high power PWM signals back into detailed and smooth analogue music.

More than just an Amp

The built-in D/A converter offers real high end performance, enabled by the use of a dedicated power supply, a balanced-drive Burr-Brown PCM1794 D/A converter, an optimized high bandwidth I/V converter, and an analogue stage with low-Q, low pass filters. All digital inputs are upsampled to 24bit/192kHz. This D/A converter will upgrade any digital source - such as wired or wireless streaming from your computer or CD drive - to a high end level of detail and musical performance.

Versatility and Connectivity

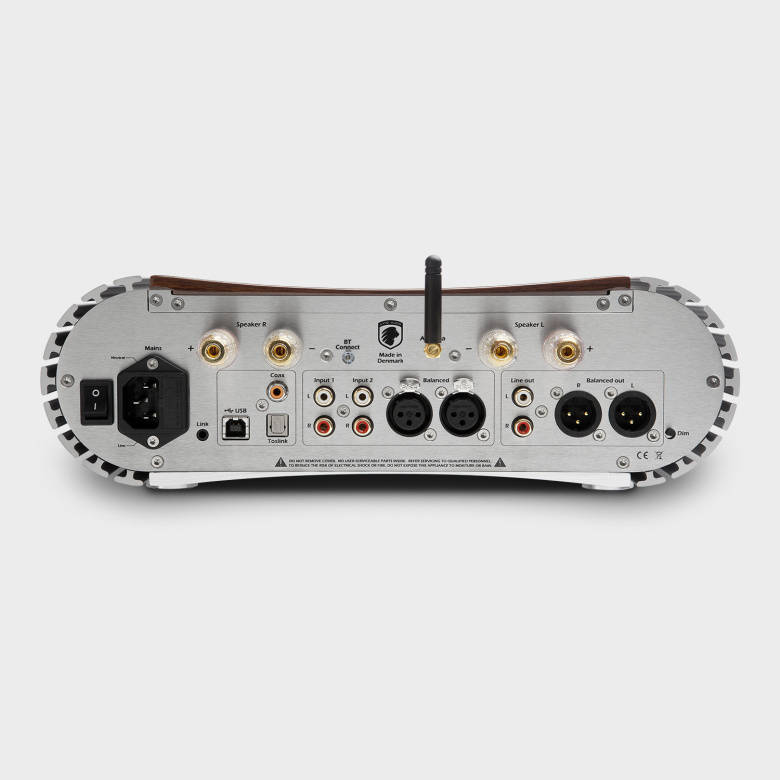

We had our eye on versatility and connectivity when designing this amplifier. The DIA-250S offers not only a wide range of digital and analogue inputs, but also line outputs, a trigger signal for external power amplifiers, and a configurable home theater input. The HT input can turn the amplifier into a fixed level power amplifier for use in a surround setup, without compromising the sonic performance.

Unlimited Digital Music Sources

This amplifier can be bend in more ways that you can imagine. With AptX Bluetooth, USB or Toslink input, you have direct access to all the music services the world has to offer.

Turn your DIA-250S into a High Performance Roon Ready Network Player

Adding a Network Player Module to your DIA-250S is a powerful way of transforming your amplifier into a High Performance Roon Ready network streamer.

Learn more about the NPM Upgrade

Bespoke Cover

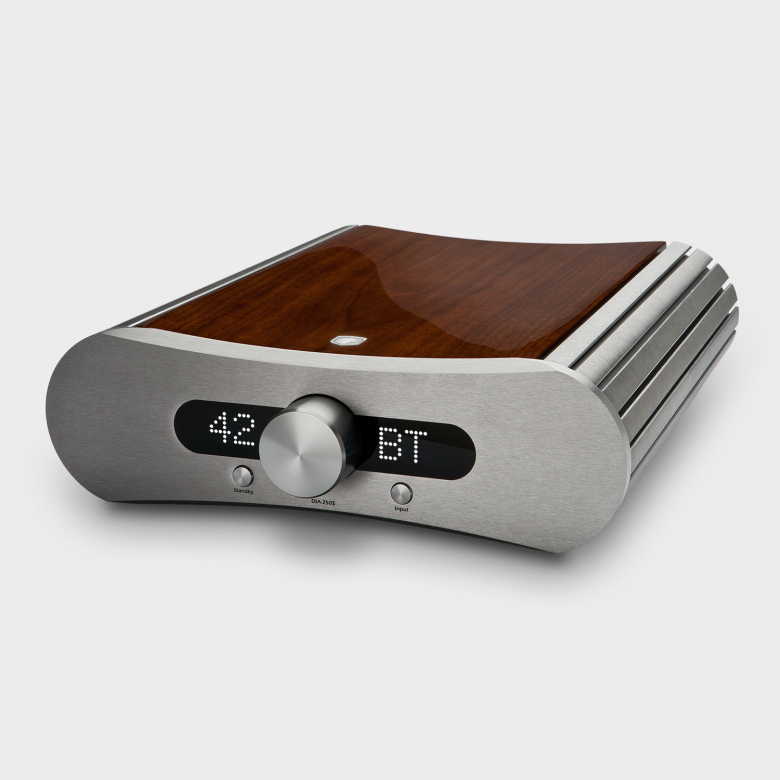

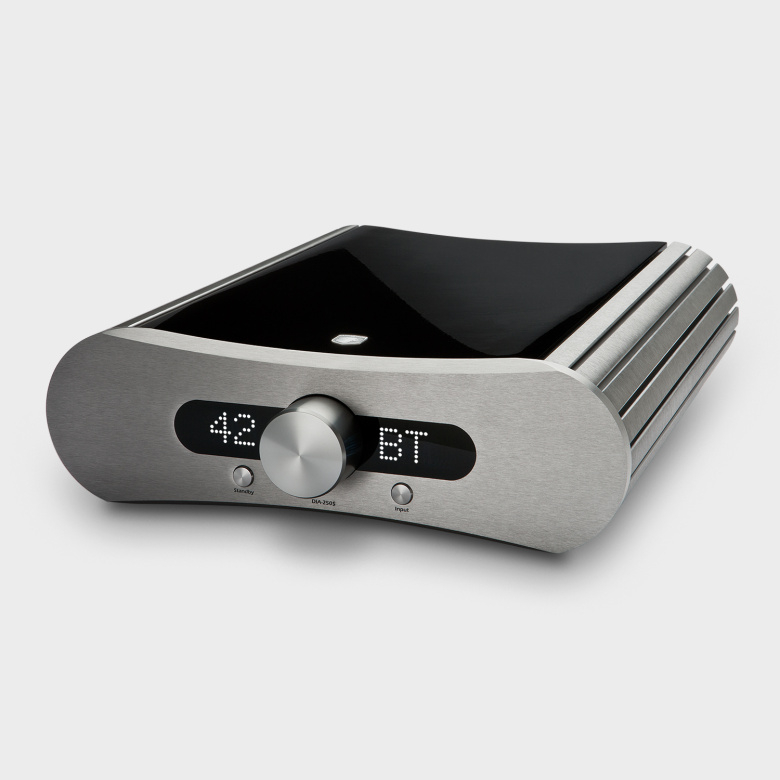

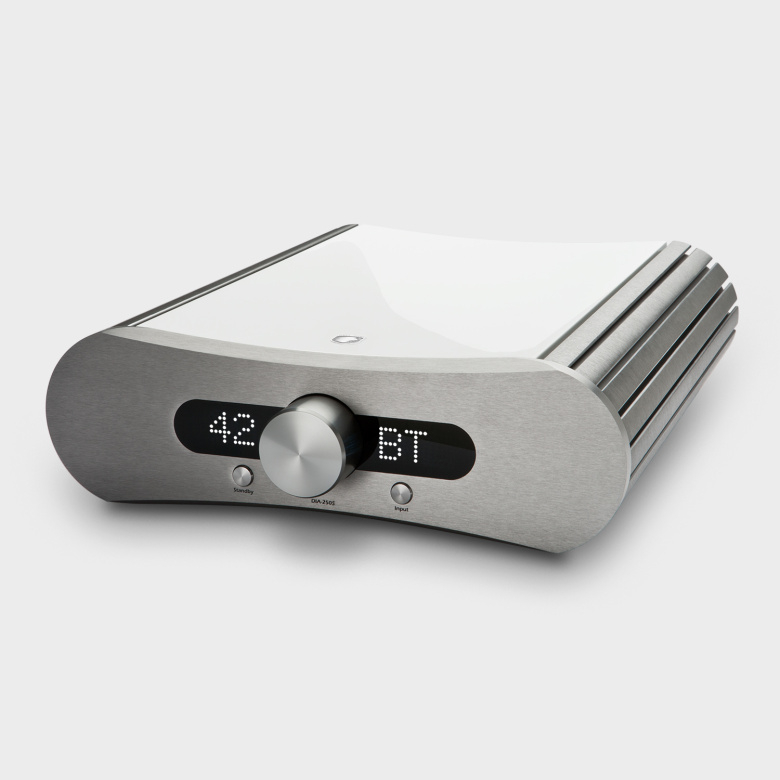

As standard we offer top covers in high gloss black, white and real walnut veneer to match the finish of our loudspeakers. But what if you prefer to have your DIA-250S match another brand of speakers or a piece of furniture or the color of your Lamborghini? Gato Audio offer to make bespoke top covers for you. We can paint them in virtually any color.

Features:

• 2x 250W@8ohm / 2x 500W@4ohm

• Class D output stage

• Built in 24bit/192kHz D/A converter with upsampling

• Coax and asynchronous USB digital input up to 24bit/192kHz, optical up to 24bit/96kHz

• aptX Bluetooth 4.0 receiver

• Accepts digital streaming directly from Apple iPhone or iPad

• Two unbalanced and one balanced inputs

• Nonmagnetic enclosure

• Direct function; enables use in home theater sytems

• Designed, developed and built in Copenhagen, Denmark
