Panouri de intercom RTS seria KP

Panouri de intercom RTS seria KP

Name: Panouri de intercom RTS seria KP
Brand: RTS Intercom Systems
SKU: RTS KP series
Availability: OutOfStock

KP-Series

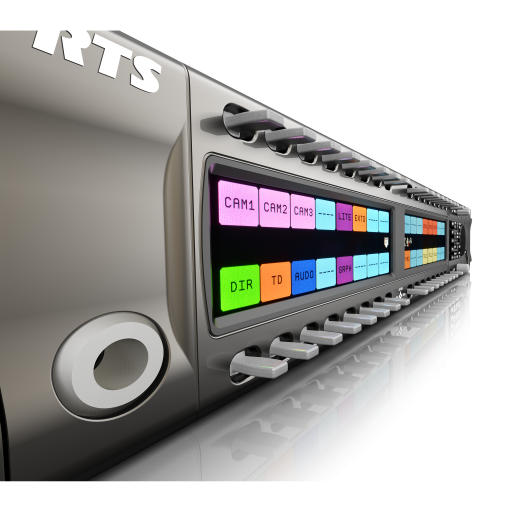

KP-Series are the first professional intercom keypanels featuring built-in OMNEO IP technology. Get superior quality, simplicity and flexibility for your professional needs.

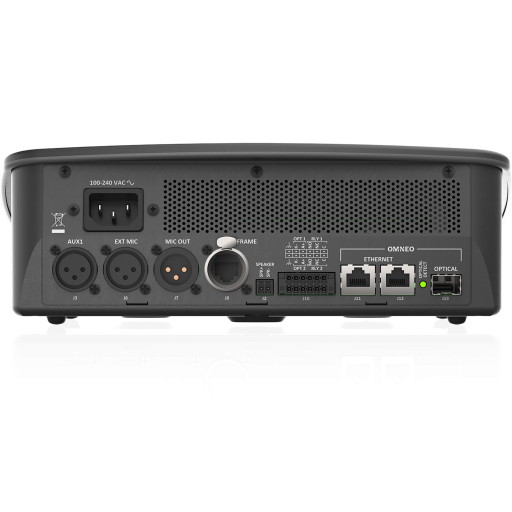

KP-Series keypanels deliver superior digital audio using the Bosch-developed OMNEO technology with Audinate's Dante audio over IP, via either copper or fiber. The KP-Series provides top-notch audio quality, free of noise, delay and other artifacts present in older technology. The family includes a rich set of connectors as standard, including GPIO and RC. As with other RTS products, emphasis has been placed on backward compatibility with previous generations of matrices, including analog technology. KP-Series keypanels utilize the latest generation of wide angle TFT displays, providing superior clarity, resolution and longer display life.

Cere Oferta

Cod Produs: RTS KP series Ai nevoie de ajutor? 0722428874

Adauga la Favorite

Descriere
Video (1)

Models

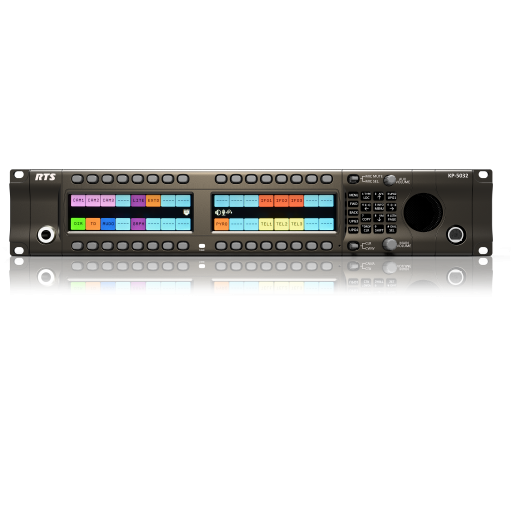

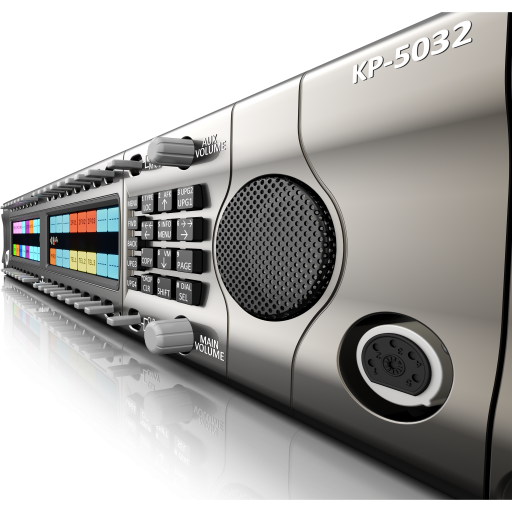

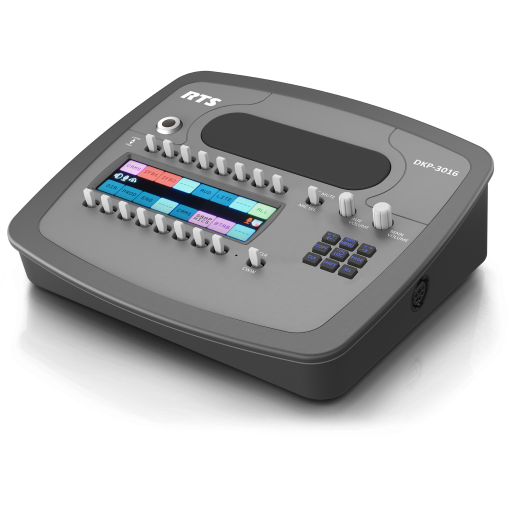

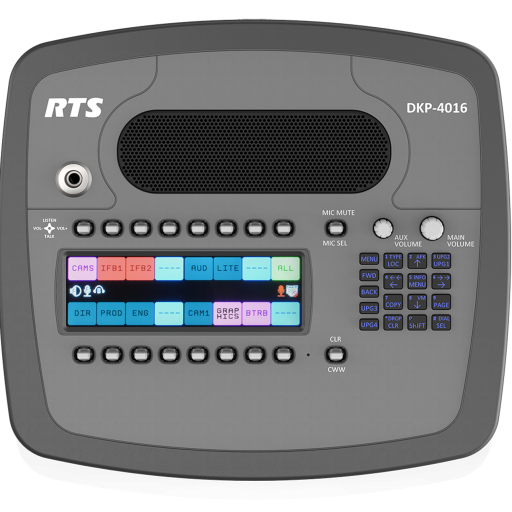

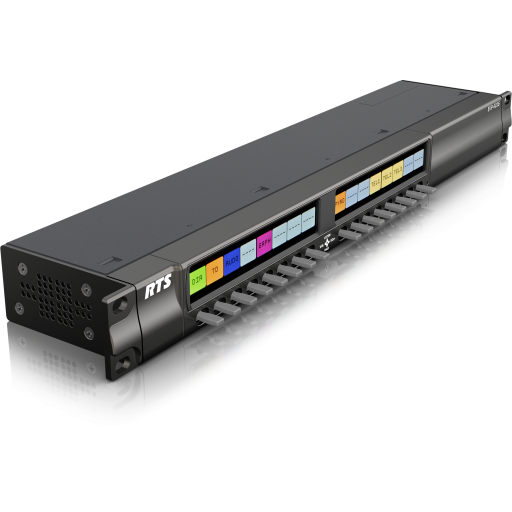

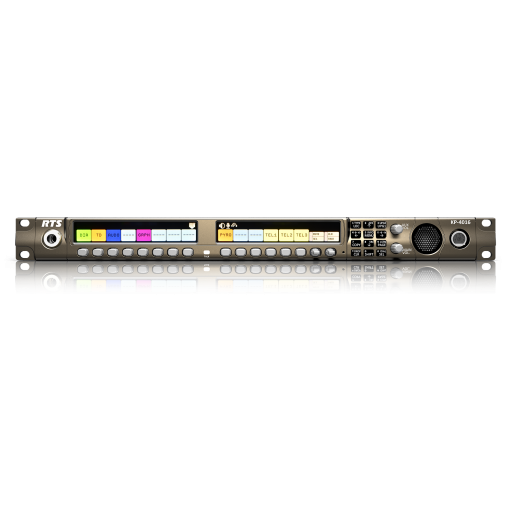

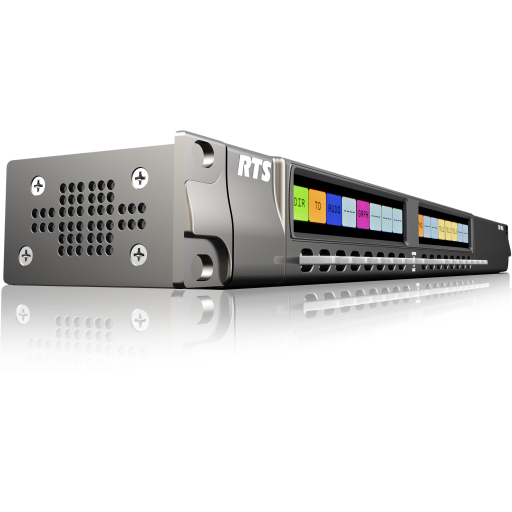

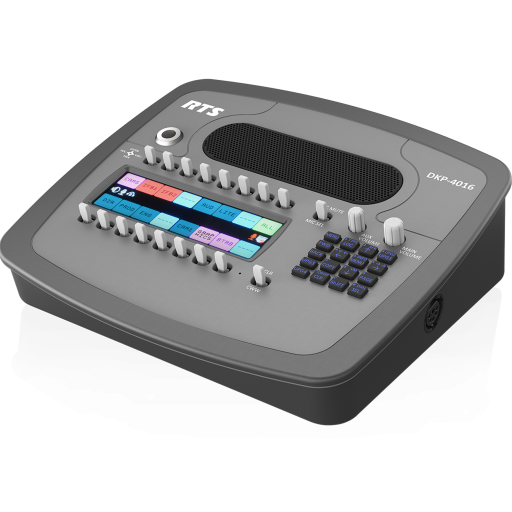

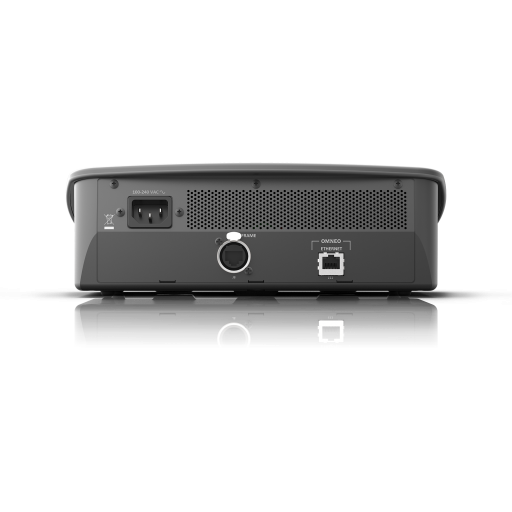

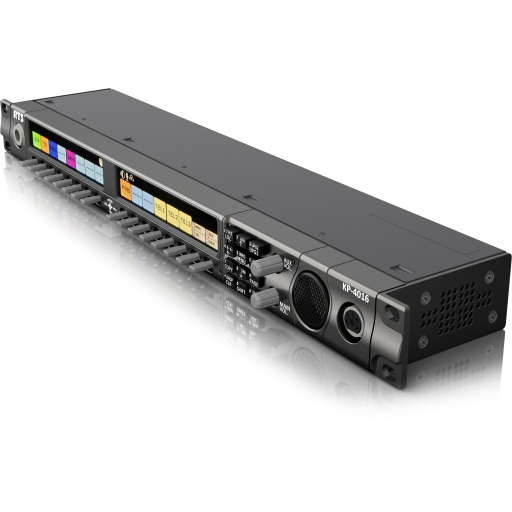

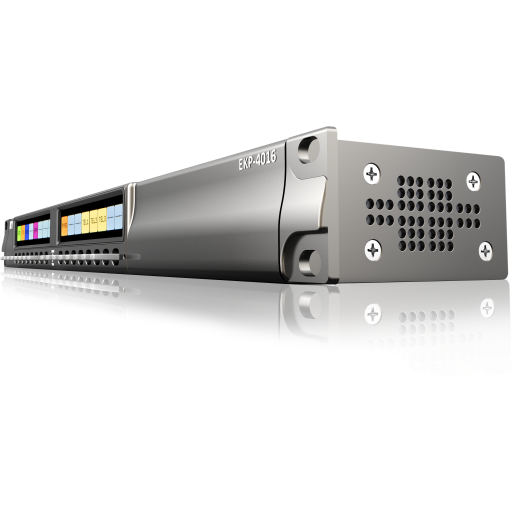

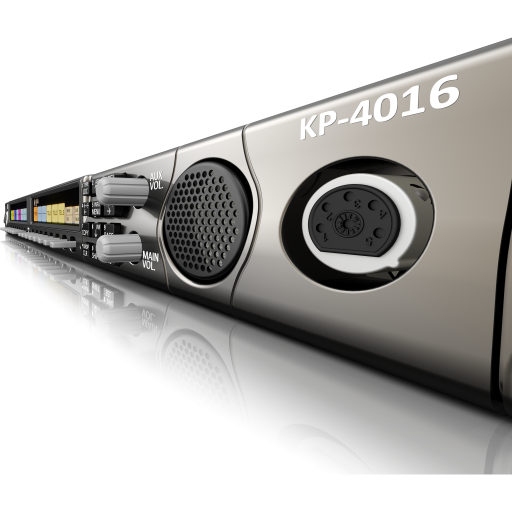

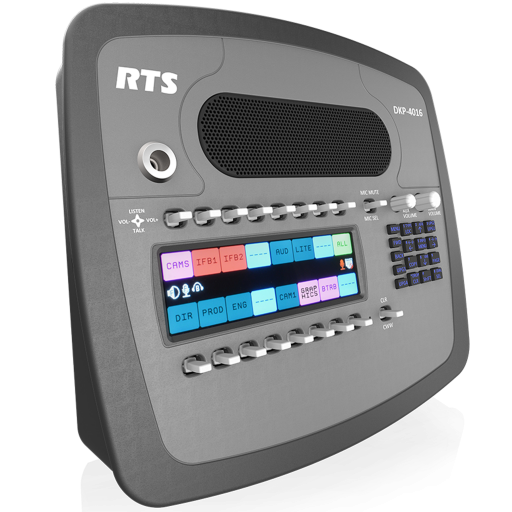

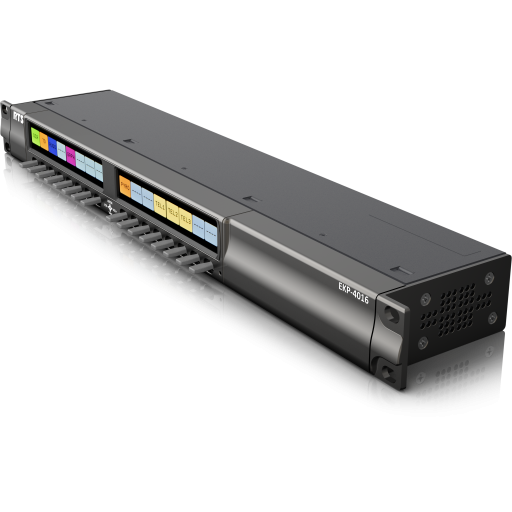

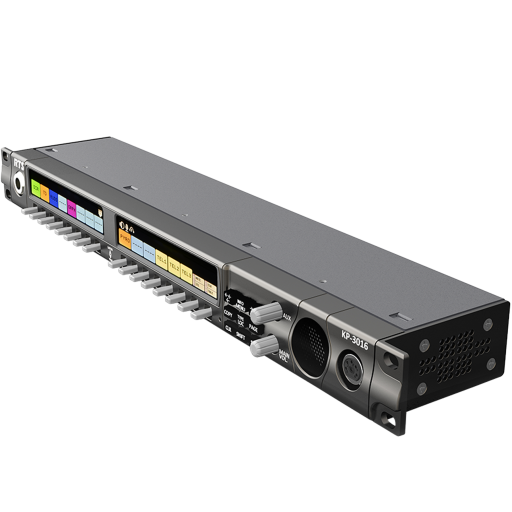

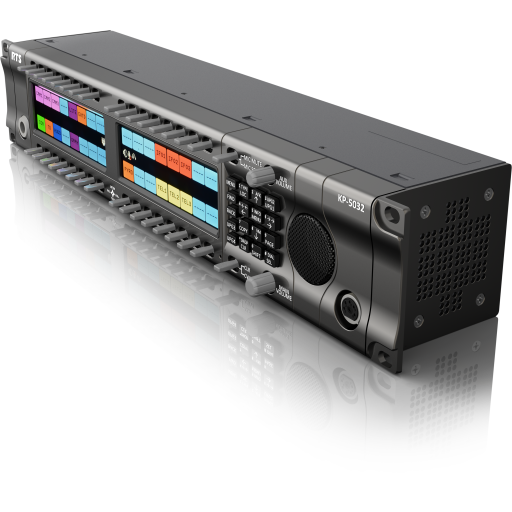

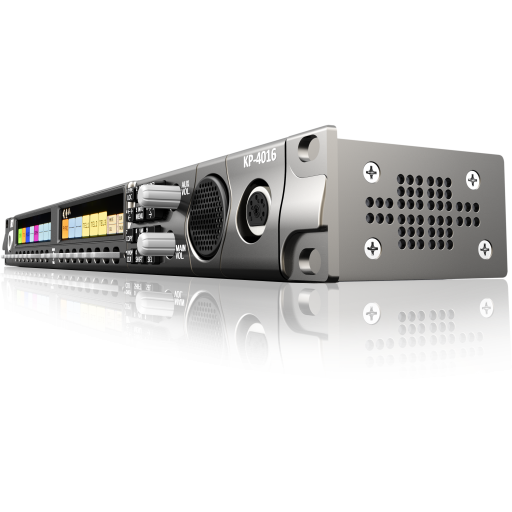

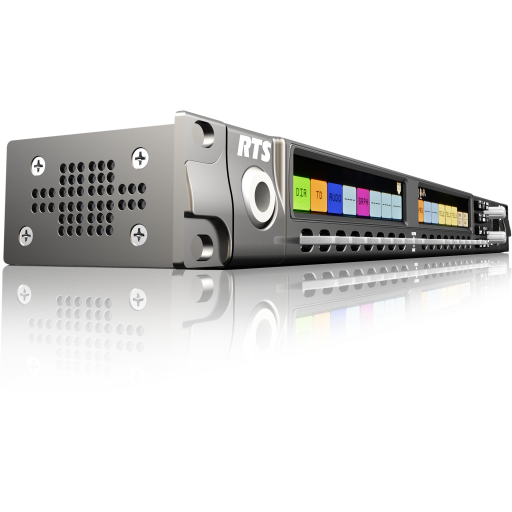

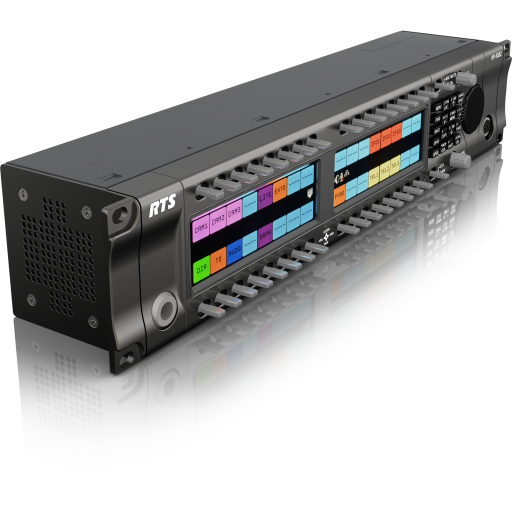

	KP-5032 2RU, 32 keys	KP-5032PB 2RU, 32 pushbutton keys	KP-4016 1RU, 16 keys	KP-4016PB 1RU, 16 keys (14 pushbutton keys & 2 additional lever controls)	KP-3016(A) 1RU, 16 keys & IP connection	EKP-4016 1RU, 16-key expansion unit	EKP-4016PB 1RU, 16-key expansion unit with push buttons	DKP-4016 Desktop/wall-mount, 16 keys	DKP-3016 / DKP-3016W Desktop/wall-mount, 16 keys	EKP-3016 1RU expansion keypanel with 16 operation keys for KP-3016
LCD Display Active Area	120.10mm (wide) x 35.86mm (high)	120.10mm (wide) x 35.86mm (high)	120.10mm (wide) x 18.77mm (high)	120.10mm (wide) x 18.77mm (high)	120.10 mm (wide) x 35.86 mm (high)	120.10mm x 18.77mm	120.10mm x 18.77mm	120.10 mm (wide) x 35.86 mm (high)	120.10 mm (wide) x 35.86 mm (high)	120.10mm x 18.77mm
LCD Display Dot Resolution	576 x 172 pixels	576 x 172 pixels	576 x 90 pixels	576 x 90 pixels	576 x 172 pixels	576x90	576x90	576 x 172 pixels	576 x 172 pixels	576x90
LCD Display Color Resolution	16-bit (64K)RGB color	16-bit (64K)RGB color	16-bit (64K)RGB color	16-bit (64K)RGB color	16-bit (64K)RGB color	16-bit (64K) RGB color	16-bit (64K) RGB color	16-bit (64K)RGB color	16-bit (64K)RGB color	16-bit (64K) RGB color
LCD Display View Angle	80 degrees (typical; all directions)	80 degrees (typical; all directions)	80 degrees (typical; all directions)	80 degrees (typical; all directions)	80 degrees (typical; all directions)	80° (typical; all directions)	80° (typical; all directions)	80 degrees (typical; all directions)	80 degrees (typical; all directions)	80° (typical; all directions)
Power Supply	External DC	External DC	External DC	External DC	External DC			External DC	External DC
AC Input	100–240VAC 50/60Hz	100–240VAC 50/60Hz	100–240VAC 50/60Hz	100–240VAC 50/60Hz	100-240 VAC 50/60 Hz			100-240 VAC 50/60 Hz	100-240 VAC 50/60 Hz
Output Connections	SPDT 1AMP @ 30VDC	SPDT 1AMP @ 30VDC	SPDT 1AMP @ 30VDC	SPDT 1AMP @ 30VDC	SPDT 1AMP @ 30VDC			SPDT 1AMP @ 30VDC	SPDT 1AMP @ 30VDC
Input Connections	Optically Coupled 5-18 VDC on A+		Optically Coupled 5-18 VDC on A+	Optically Coupled 5-18 VDC on A+
Connections		Optically Coupled 5-18 VDC on A+
Typical OMNEO Latency	1ms	1ms	1ms	1ms
OMNEO Frequency Response	20Hz - 20KHz	20Hz - 20KHz	20Hz - 20KHz	20Hz - 20KHz	20Hz - 20KHz			20Hz - 20KHz	20Hz - 20KHz
Power Requirements						100~240VAC, 50–60Hz	100~240VAC, 50–60Hz			100~240VAC, 50–60Hz
Operating Temperature	0° C to 55°C	0° C to 55°C	0° C to 55°C	0° C to 55°C	0°C to 55°C	0°C to 55°°C	0°C to 55°°C	0°C to 55°C	0°C to 55°C	0°C to 55°°C
Height						43.8mm	43.8mm			43.8mm
Width						441.82mm	441.82mm			441.82mm
Depth						98.5mm	98.5mm			98.5mm
Weight						2.91lb (1.32kg)	2.91lb (1.32kg)			2.91lb (1.32kg)
Certification	CE Compliant, UL Certified	CE Compliance: EMC, EN55022 Class A, VCCI Class A, ICES-003, FCC Part 15 Subpart B Class A, AS/NZS CISPR22 Class A,Korean KN 22, EN 55024, Korean KN 61000-4, BSMI Class B; Safety: UL 60950-4, EN60950-1, CB Report, PSE	CE Compliance: EMC, EN55022 Class A, VCCI Class A, ICES-003, FCC Part 15 Subpart B Class A, AS/NZS CISPR22 Class A,Korean KN 22, EN 55024, Korean KN 61000-4, BSMI Class B; Safety: UL 60950-4, EN60950-1, CB Report, PSE	CE Compliance: EMC, EN55022 Class A, VCCI Class A, ICES-003, FCC Part 15 Subpart B Class A, AS/NZS CISPR22 Class A,Korean KN 22, EN 55024, Korean KN 61000-4, BSMI Class B; Safety: UL 60950-4, EN60950-1, CB Report, PSE	CE Compliance EMC EN55022 Class A VCCI Class A ICES-003 FCC Part 15 Subpart B Class A AS/NZS CISPR22 Class A Korean KN 22 EN 55024 Korean KN 61000-4 BSMI Class B Safety UL 60950-4 EN60950-1 CB Report PSE			CE Compliance EMC EN55022 Class A VCCI Class A ICES-003 FCC Part 15 Subpart B Class A AS/NZS CISPR22 Class A Korean KN 22 EN 55024 Korean KN 61000-4 BSMI Class B	CE Compliance EMC EN55022 Class A VCCI Class A ICES-003 FCC Part 15 Subpart B Class A AS/NZS CISPR22 Class A Korean KN 22 EN 55024 Korean KN 61000-4 BSMI Class B
Storage Temperature	-20° C to 70°C	-20° C to 70°C	-20°C to 70°C	-20°C to 70°C	-20°C to 70°C	-40°C to 70°C	-40°C to 70°C	-20°C to 70°C	-20°C to 70°C	-40°C to 70°C
Connector Options						EXP IN EXP OUT	EXP IN EXP OUT			EXP IN EXP OUT
Power Consumption	Nominal: 13W, Maximum: 18W, Maximum Volt Amp: 48VA	Nominal: 13W, Maximum: 18W, Maximum Volt Amp: 48VA	Nominal: 12W, Maximum: 15W, Maximum Volt Amp: 48VA	Nominal: 12W, Maximum: 15W, Maximum Volt Amp: 48VA	Nominal: 11W, Maximum: 13W, Maximum Volt Amp: 36VA	@110VAC – @220VAC –	@110VAC – @220VAC –	Nominal: 12W, Maximum: 15W, Maximum Volt Amp: 48VA	Nominal: 12W, Maximum: 15W, Maximum Volt Amp: 48VA	@110VAC – @220VAC –
