ODIN - OMNEO digital intercom

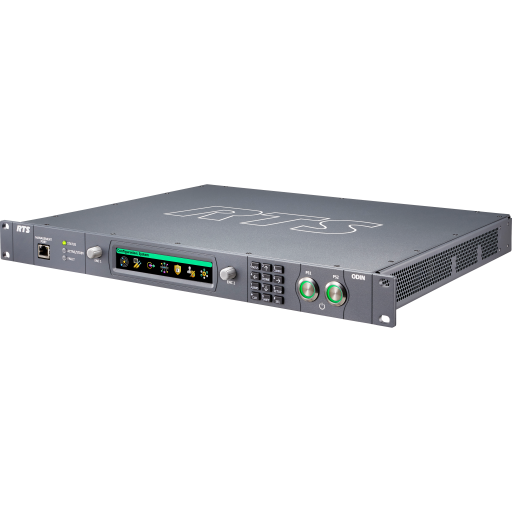

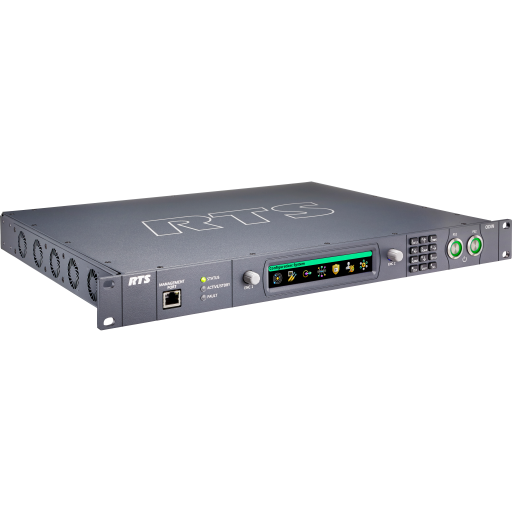

The ODIN Digital Intercom is a highly scalable intercom system in a 1RU (Rack Unit) package. As your capacity needs to evolve, a single ODIN can grow from 16 ports to a maximum of 128 ports. A maximum of eight ODIN units can be interconnected via an optical Inter-Frame Link creating a single matrix with up to 1024 ports. The total number of licensed ports may be allocated freely to any port hardware type supported by the unit.

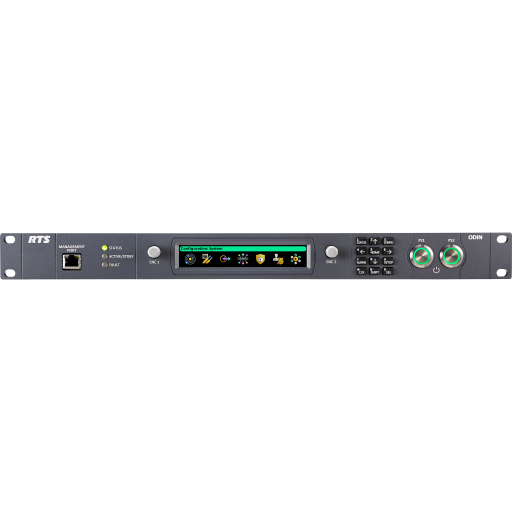

The front panel has been designed to incorporate a User Interface as an alternative option to AZedit that supports the most common setup and configuration tasks. The AZedit and IPedit software applications have been updated to support ODIN.

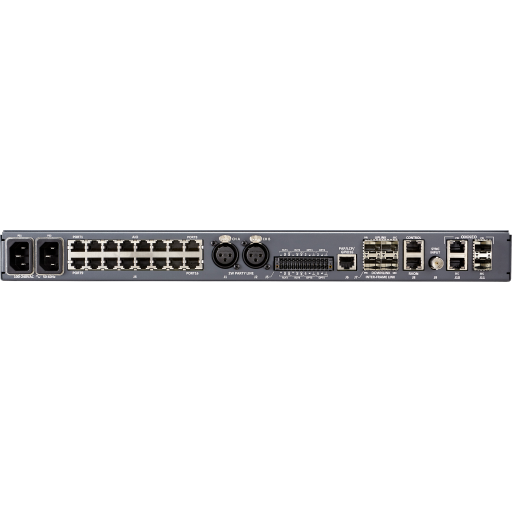

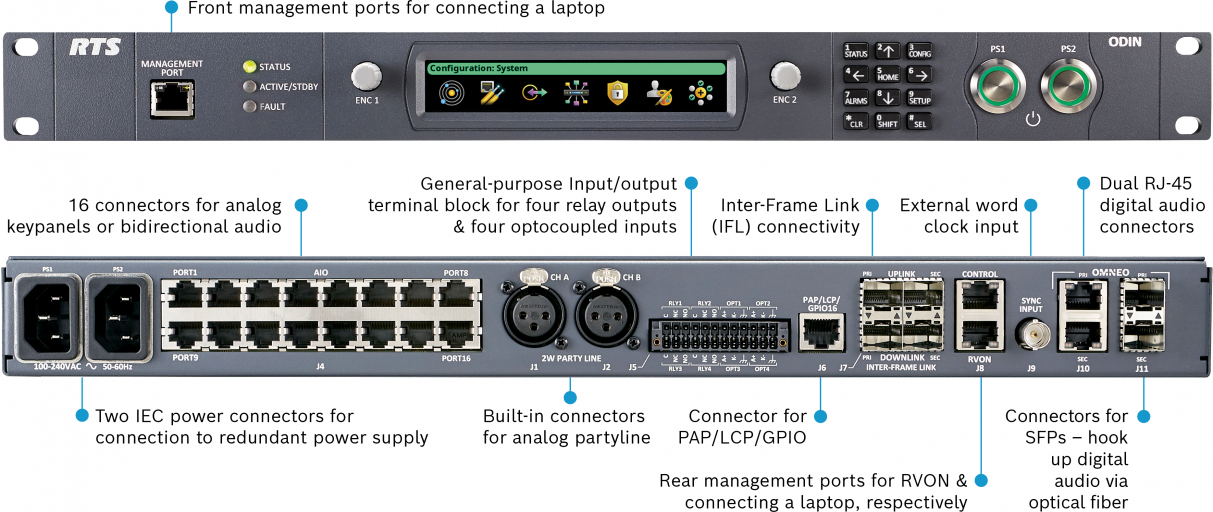

Featuring connectors for AIO, OMNEO and two-wire technology, ODIN supports keypanel technology going forward and, as always, RTS legacy keypanels. OMNEO is standard on RJ-45 connectors or is available using optional Optical Fiber SFP connectors.

Three flexible redundancy options are available for multiframe ODIN systems: Backup and Restore, Frame Swap and Redundant Frame Operation.

Specifications

Power Supply:
Type	Locking IE320 C14 style connector (2 connectors, fully redundant load-sharing power supplies)
AC Input	100VAC – 240VAC, 60/50Hz, 0.5A / 0.35A
Maximum Power Consumption	47W (based on 120VAC) Note: Lighted power buttons on front panel control DC voltage feed to internal circuitry; they do not disconnect AC from the internal power supplies. Power cords must be fully removed from unit to safely disengage internal power.

Environmental:
Operating Temperature	32°F – 113°F (0°C – 45°C)
Storage Temperature	-4°F – 158°F (-20°C – 70°C)
Dimensions:	19" w/ rack ears (17.3" w/o rack ears) W x 1.7" H x 14.3" D (including connectors) (482.6 mm w/ rack ears [439 mm w/o rack ears] W x 43.7 mm H x 363.5 mm D [including connectors])
Weight:
ODIN Matrix	11.5lbs (5.2kg)
Optional Mounting Bracket	0.86lbs (390grams)
AIO 4-Wire Analog:
Connectors	16 RJ-45 connectors
Signal Format	Differential RX/TX audio with differential RS-485 control data
Wiring Scheme	Both 568B & USOC supported
A/D and D/A Resolution	24bits
Max Input Level (balanced)	+20dBu w/o clipping
Digital Input Gain	Programmable (-20dB – +20 dB)
Input Frequency Response	+1dB/-3dB from 200Hz – 20kHz
THD+N (8dBu input, unity gain)	0.025% non-weighted@1kHz <0.075% non-weighted, 100Hz – 20kHz
Nominal Input Impedance	>22kΩ
Nominal Output Level	8dBu
Digital Output Gain	Programmable (-20dB – 20dB)
Maximum Output Level (balanced) @ 600 Ohms	20 dBu w/o clipping
Output Frequency Response	+1dB / -3dB from 200Hz – 20kHz
Output Noise Floor	<-70dBu
Crosstalk Isolation	>80dB
2-Wire Party Line Analog:
Connector	two 3-pin female XLR connectors
Modes/Port supported	RTS CH1, RTS CH2 Audiocom (1 channel) Clear-Com (1 channel) (Connections are DRY. NO dc voltage provided)
4W/2W Echo Return Loss	>30dB
Unbalanced Operation (RTS/Clear-Com)
Output Level	0 dBu (nominal)
Expected Termination Impedance	200 Ω
Noise Contribution	<-60 dBu
THD+N (w/ nominal input)	<0.5%, 200Hz– 8kHz
Bridging Impedance	>10kΩ
CALL Signaling	20kHz (RTS mode)
12VDC (Clear-Com mode)
MIC KILL Signaling 24kHz (RTS mode)
Balanced Operation (Audiocom)
Ouput Level	0 dBu (nominal)
Expected Termination Impedance	300Ω
Noise Contribution	<-60 dBu THD+N
(with nominal input)	<0.5%, 200Hz – 8kHz
Bridging Impedance	>10 kΩ
CALL Signaling	20kHz (Audiocom mode)
MIC KILL Signaling	24kHz (Audiocom mode)
General Purpose Input/Output Ports:
Relays
Type	SPDT
Contacts	Common (C)
Normally Closed (NC)
Normally Open (NO)
Contact Rating	1A @ 30 VDC
Inputs
Type	Optically Coupled
Input Voltage	5 VDC – 12 VDC on A+ Note: A+ is internally pulled to +5 VDC. Connect K to chassis ground to activate.
PAP/LCP/GPIO Port:
Connector	RJ-45
Format	RS-485 control data only (no audio)
Inter-Frame Link Port
(2 UPLINK/2 DOWNLINK): Note: Supports expansion and connection of up to eight ODIN frames.
Fiber Connector Type	Small Form
Factor Pluggable (SFP)
Multimode	Finisar FTLF8519P3BNL 500m / 2.125Gbps
Single Mode	Finisar FTLF1421P1BTL 15km / 2.67Gbps
Speed	2Gbps
LED Indicator	Optical Signal Present Note: SFF-8472 fiber diagnostics supported
Control Port:
Connector	RJ-45
Format	IEEE 802.3 compliant
Speed	10/100/1000 Mbps
LEDs	Speed and Link/Activity
Sync Input Port:
Connector	BNC
Termination Impedance	75 Ω
Input Frequency Range	48 kHz ±25 ppm
Input Level	5V TTL
Compatible OMNEO Port (primary and secondary):
Maximum Capacity	128 Full-duplex ports
Copper Connector Type	RJ-45
Format	IEEE 802.3 compliant
Copper Ethernet Speed	100/1000 Mbps
Fiber Connector Type	Small Form Factor Pluggable (SFP)
Multimode	Finisar FTLF8519P3BNL 500m / 2.125Gbps
Single Mode	Finisar FTLF1421P1BTL 15km / 2.67Gbps
Fiber Speed	100/1000Mbps
LED Indicator	Optical Signal Present
Note: SFF-8472 fiber diagnostics supported
TFT Display:
Active Area	120.10 mm (wide) x 18.77 mm (high)
Dot Resolution	576 x 90 pixels
Color Resolution	16-bit (64K) RGB color
View Angle	80° (typical, all directions)
Protective Lens	Anti-Glare / Anti-Reflective
Front Panel Management Port:
Connector	RJ-45
Format	IEEE 802.3 compliant
Speed	10/100/1000 Mbps
LEDs	Speed and Link/Activity
Agency Compliance:	Emissions (Class A) • EN 55032:2012/AC:2013 • KN32 w RRA Public Notification 2016-26 & RRA Announce 2016-79 • AS/NZS CISPR 32:2015 • VCCI-CISPR 32:2016 • ICES-003, Issue 6:2016, Updated April 2017 • FCC Part 15 Subpart B • Chinese National Standard 13438 (2008) Immunity • EN55024:2010 • KN32 w RRA Public Notification 2016-26 & RRA Announce 2016-79 Safety • UL 60950-1 and CAN/CSA C22.2 No.60950-1-07 • UL 62368-1 • Japanese PSE compliance

Cere Oferta

Cod Produs: RTS ODIN Ai nevoie de ajutor? 0722428874

Adauga la Favorite

Descriere
Video (1)

New Redundancy Options
Three flexible redundancy options are available for multiframe ODIN systems: Backup and Restore, Frame Swap and Redundant Frame Operation.

The Backup and Restore function in RTS AZedit software can be used to upload and save the complete configuration of an ODIN frame to a file, from where it can be applied to another frame. The backup includes not only the intercom setup, but also frame-specific data such as IP settings, RVON and OMNEO channel configurations, front-panel settings, port-allocation tables, etc. This option is useful when, for example, two frames in two separate OB trucks need to be linked together for a production; afterwards, each can be easily restored to their previous settings. It also allows a replacement frame to be quickly put into play if a backed-up frame needs to be removed from service.

Frame Swap is used to replace a single frame in a multi-frame ODIN intercom system. It is similar to Backup and Restore, but it is performed via the front control panel and does not involve AZedit. Instead, the replacement frame receives the intercom system configuration and frame-specific settings from another frame in the system. When the system is operating normally, frame-specific configuration is replicated across all frames. Therefore if one frame fails, the other frames already have an up-to-date copy of the failed frame’s configuration, and can make this available for Frame Swap. The replacement frame requires the purchase of an ODIN Intelligent Frame Swap license; however, the frames in the existing system do not require a license.

Redundant Frame Operation supports two modes: One-to-One Redundancy and Intelligent Redundancy. In either mode the system can be configured for automatic transfer of control (a redundant frame takes over automatically when it detects a failure) or manual transfer (a redundant frame only takes over at the direction of the user).

For One-to-One Redundancy, the customer purchases a backup ODIN frame for each core frame requiring redundancy. Redundancy options are activated and configured on the backup frame using the frame-mapping table, which can be accessed locally via the front control panel or remotely via AZedit. As no additional software license is needed, costs are frame-only.

For Intelligent Redundancy, one or more ODIN frames can be assigned as backup frames in a multi-frame system by purchasing an ODIN Redundancy Management license to support each core frame requiring redundancy. Each backup frame requires a license; core frames do not require a license. Dependent on the user’s redundancy safety preferences, a system might be configured with just one or two backup frames. For example, a 5+2 system would consist of five core frames plus two backup frames. In this case, the user would typically configure the backup frames so that each guards all five core frames.

All three modes described above require the following minimum firmware versions: ODIN v1.6.0 and AZedit v5.7.0.
Scalable
Easily expand system as needed by adding licenses or more ODIN units: start with 16 ports and extend up to 128 ports in a single unit, or connect eight units seamlessly for a 1024-port matrix. No competing product has this level of scalability.
Versatile
Supports Dante-compatible OMNEO IP technology*, four-wire and two-wire for the broadest connectivity to other components, all with the highest-quality audio.
User-Friendly
High-resolution icon-based front-panel color user interface for intuitive operation and immediate configuration directly from the unit.
Efficient
Requires less power, less space and less cooling for lower environmental impact and lower total cost of ownership.
Flexible
Reallocate ports to any hardware type with no adapters or special boards required – future proof for evolving system with audio over IP technology and backwards compatible with legacy products.
Glitch-free available for the most clear and reliable communication
Glitch-free is now available for the most reliable local communications. Redundancy and reliability are perhaps the most important factors when it comes to broadcast intercom. Glitch-free comms that connect team members in different locations, and often in different countries, systems that remain stable and online in the most challenging environments and working conditions.
