ROAMEO DECT-based wireless intercoms
The ROAMEO wireless intercom system from RTS is a professional, easy-to-use and future-proof solution based on the license-free DECT (Digital Enhanced Cordless Telecommunications) standard. ROAMEO provides high-quality audio and a large number of simultaneous users across wide areas over a seamlessly integrated digital wireless beltpack and associated access points. ROAMEO can solve a series of communication challenges by operating like a wireless keypanel in the field which is easy to use and easy to expand. Additionally, wireless beltpacks can be directly addressed as part of a wired RTS matrix intercom system.
Models
|
||
|

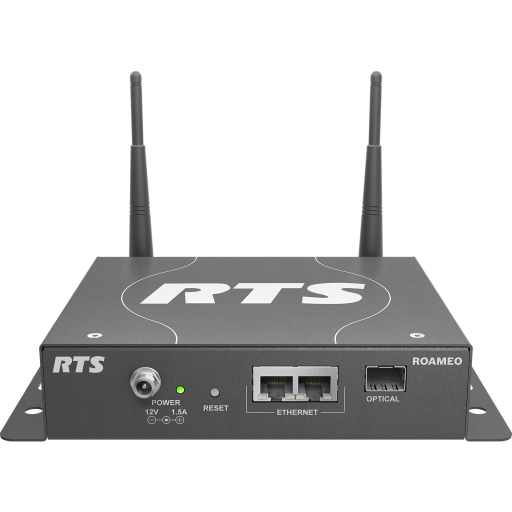

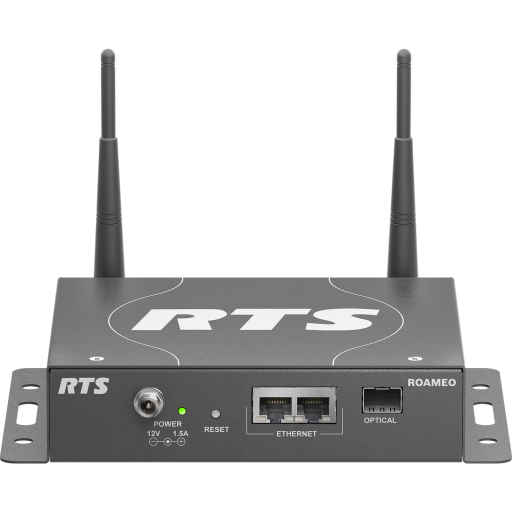

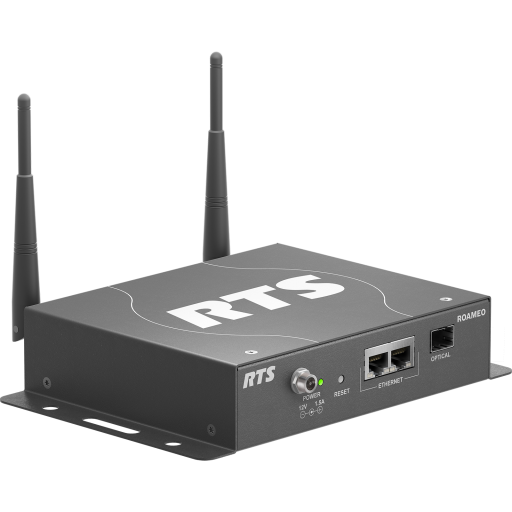

AP-1800 |

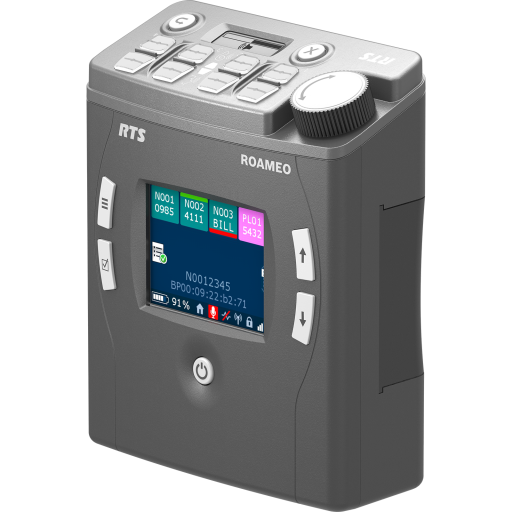

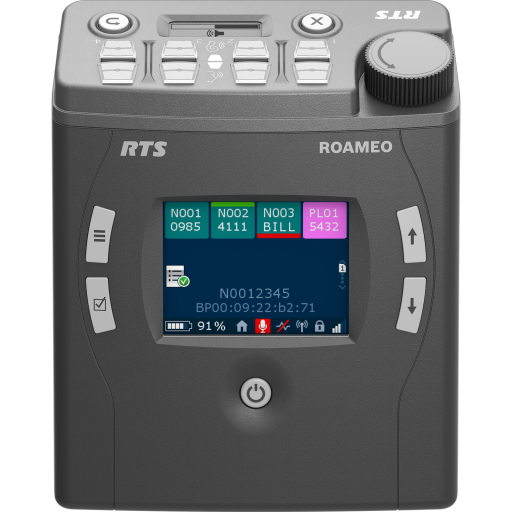

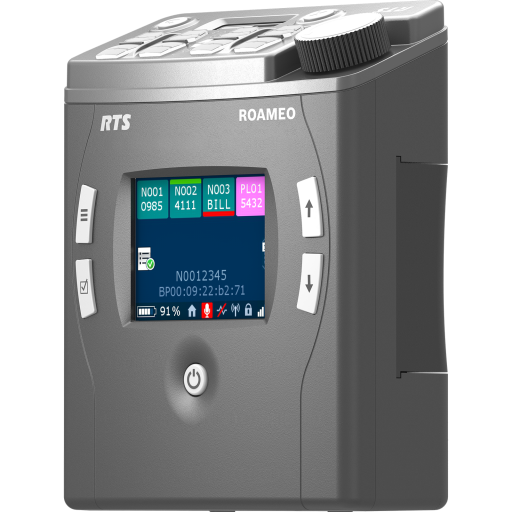

TR-1800 |
Display Type |
|
320x240 pixel color LCD |
Audio Bits |
OMNEO |
|
Frequency Band of Operation |
BP: 1880 – 1900 MHz (Europe), 1920-1930 MHz (North America) AP: 1880 – 1900 (Europe) MHz, 1920 – 1930 MHz (North America) |
|
Wireless Technology |
DECT |
|
Call Waiting Window |
|
Monochrome |
RF Frequency Range |
1880-1900 (EU), 1920-1930 (NA) |
1880-1900 (EU), 1920-1930 (NA) |
RF Standard |
DECT |
DECT |
RF range, typical |
50-75 m indoor, 150-200 m outdoor |
50-75 m indoor, 150-200 m outdoor |
Voice Codecs |
G.722 (wideband) / G.726 (narrowband) |
G.722 (wideband) / G.726 (narrowband) |
Voice latency (ms) |
Approx 40 ms BP to BP; 30 ms BP to matrix and matrix to BP |
Approx 40 ms BP to BP; 30 ms BP |
Width (Shipping) |
287 |
244 |
Height (Shipping) |
99 |
99 |
Depth (Shipping) |
194 |
144 |
Weight (Shipping) |
0.86 |
0.68 |
IP-rating |
Indoor only |
IP-52 |
Roaming |
|
Full, automatic |
Max BPs/AP |
|
5 (G.722), 10 (G.726) |
Max BPs/system |
|
40 |
User Interface |
|
Icons plus text |
Languages |
|
10 |
Menu keys |
|
4 |
Mounting |
Surface or pole (w. clamp) |
|
User Capacity |
5 Beltpacks (G.722) or 10 Beltpacks (G.726) per Access Point – Max 40 Beltpacks per System |
|
Battery Type |
17 hrs |
|
Frequency Response |
300 - 7000 Hz (G.722), 300 - 3500 Hz (G.726) |
300 - 7000 Hz (G.722), 300 - 3500 Hz (G.726) |
Antenna |
Detachable, adjustable |
Dual, internal |
Power |
6.5W |
|
Max APs/System |
10 |
|
Characteristics |
3dBi gain, omni-directional |
|
Voltage |
12 V DC, external |
|
Battery Life |
|
17 hours |

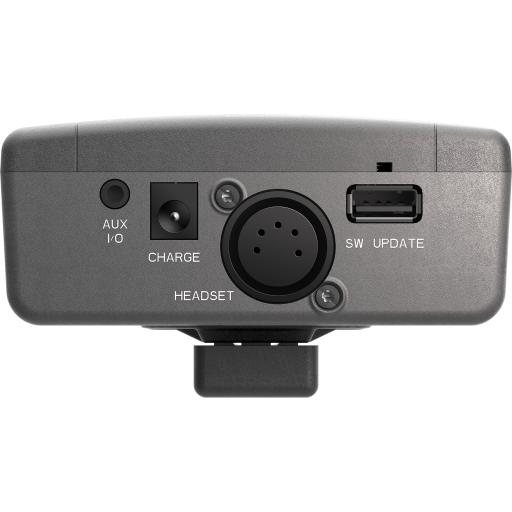

Headsets |
|
5-pin female XLR |
Keys |
|
4x2 + reply and clear |
|
