SK-UHD7000 High Performance UHD Production Camera

Name: SK-UHD7000 High Performance UHD Production Camera
Brand: KOKUSAI DENKI
SKU: SK-UHD7000
Availability: BackOrder

Broadcast UHD-4K television production camera

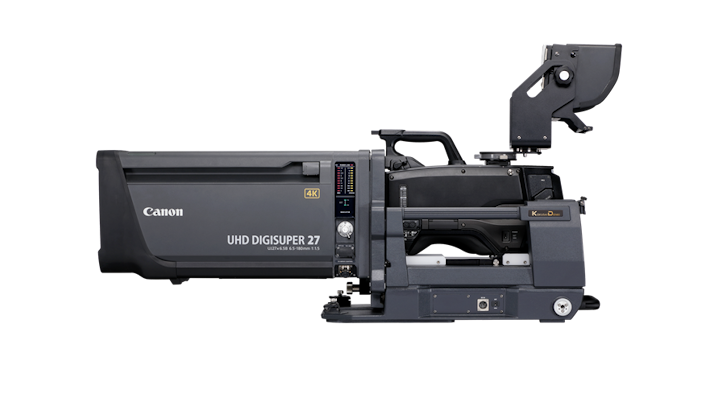

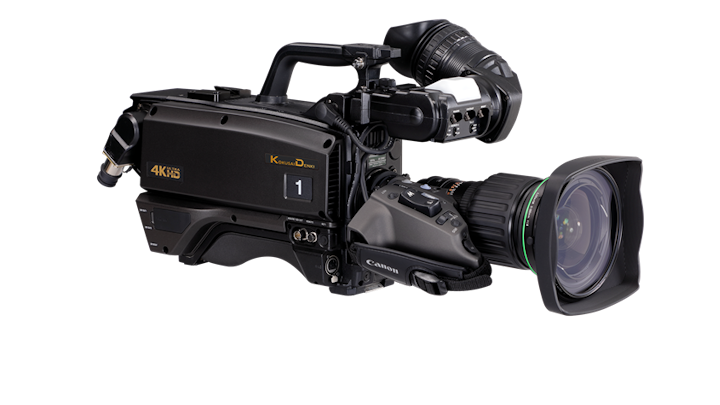

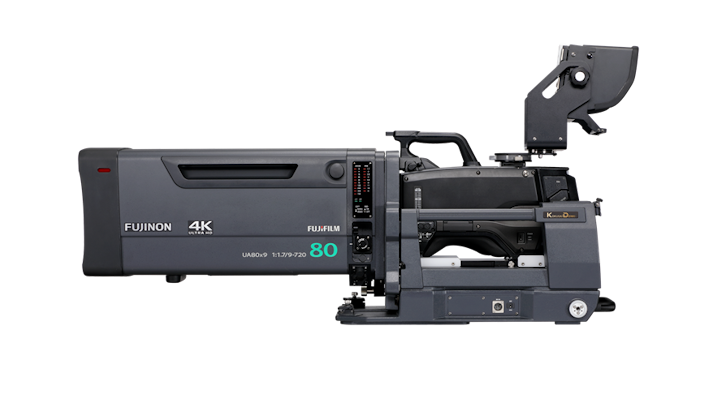

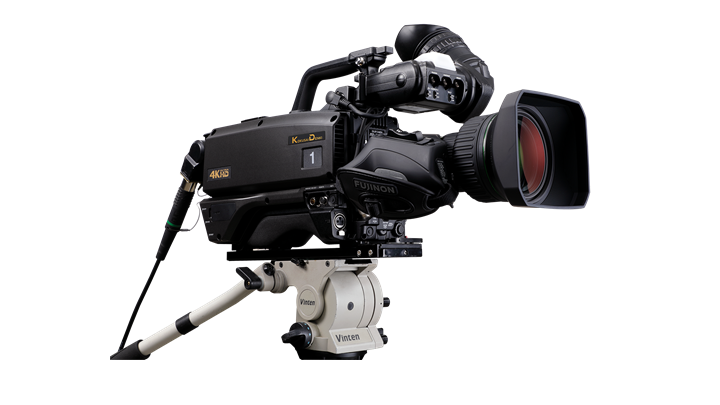

KOKUSAI DENKI’s next generation 4K Ultra HD broadcast and live production camera system incorporates three 2/3”, global shutter 9MPixel CMOS image sensors. Native 4K sensors enable pristine capture of 3840x2160 UHD video. Expanded spectral range with a new prism design and high-performance sensors enables full-range BT.2020 Wide Color Gamut. Dual 4K and HDTV workflow supports separate controls for three types of High Dynamic Range (HDR) and standard dynamic range (SDR), maximizing production versatility and efficiency. The SK-UHD7000 is ideal for a wide range of applications – from broadcasters archiving their productions, to live production companies striving to offer the utmost quality to their clients, to houses of worship future-proofing their facilities with life-like video.

Digital Processing

Digital signal processing in the SK-UHD7000 takes place in the Ultra-scale multiprocessor system on a chip. This new DSP is an advance and has many capabilities. The SDP devices provide 64-bit processor scalability while combining real-time control with soft and hard engines for video, and packet processing. Provides next-generation programmable engines, security, reliability and scalability from 32 to 64 bits.

Fiber Optical Transmission

Having (3) RGB sensors producing full, uncompressed UHD requires 12Gbps of optical bandwidth. The SK-UHD7000 supports 12Gbps up and down (Rx & Tx) using standard SMPTE 311M type Hybrid Fiber-optic cables for connection between the Camera Head and the Control Unit.

12G outputs on Camera head

From the camera Head 2x 12G Full 4K /HD-SDI Switchable signals are available for 4K and 2K stand alone and wireless operation, AUX -1080p-3G IN Trunk Video available which can be used also for HD –SDI PROMPTER and additional VBS PROMPTER available as standard.

2 x independent Return channel

2 separate Return line available for the Cameraman viewfinder (x4) and for Floor Monitors (x2) SK-HD7000 with New generation Global Shutter image sensors and Built in Low pass Filter (LPF) can easily adapt to a wide range of difficult LED lighting conditions. No Image Skew, No Flash, No Jitter and No Banding scanning effect as well as No Moire visible on the image.

Cere Oferta

Cod Produs: SK-UHD7000 Ai nevoie de ajutor? 0722428874

Adauga la Favorite

Descriere

Features

Three 2/3-inch, 3840x2160 effective pixels global shutter CMOS image sensors
4K UHD: Optional Days and Permanent License up-grade from HD available
4X 1080p HFR (Slow Motion) Days and Permanent License up-grade available
2.000 TVL UHD resolution, over 1,000 TVL HD resolution
60% Modulation dept. (1080p)
High Sensitivity of > F11
>62dB Signal to noise ratio
Single-link, 12G-SDI multi-format output directly from the camera head
Streamlined, one-piece lightweight camera chassis with low center of gravity
New state-of-the-art processors for future-proof, advanced 64 bit digital processing DSP technology.
Multi-format global design output signals for most TV broadcast and production standards
SMPTE-311M hybrid optical fiber cable provides transmission and camera power up to 2km
Single-Mode fiber can be used up to 10Km without external adapters or accessories (with external head power)
High performance HD down-conversion offers simultaneous 1080p, 1080i, and 720p output
Dual Workflow with simultaneous HDR and SDR
Auto/Manual HLG HDR /SDR Adjustment
High Dynamic Range with HLG, PQ and S-LOG 3 adjustable profiles
Motorized optical filter wheel
Low power consumption 70W (only camera)
230V/100W Utility Power out for external units
Independent HD-SDI VF output for crane or Jib installations
Independent return channel for floor Monitor
Focus assist and viewfinder zoom for critical focus at 4K resolution.
Remote Back focus adjustment with RU-2500JY Remote control unit (Lens should support)
Trunk Network and Trunk Video line is available for control external device and transfer video over camera.
2 independent CCU Returns; inputs can be HD-SDI single or dual link, or SD analog or digital selectable
Return SDI signal with embedded audio can be output at the camera head and be mixed in the intercom headset
RLAC (real-time lens aberration correction) improves the image captured by most modern digital lenses
Direct data transfer from SD memory cards used at camera head and control panels
UHD and HD signal linear masking and 12-vector color correction
Independent control of UHD and HDTV detail
Ultra-Gamma (Selectable Gamma table)
Full range ITU-R BT.709 and BT.2020 color space available all outputs (UHD and HD)
Preset Masking (6 settings: DEFAULT, ITU-709, SMPTE-240M, SMPTE-2020, NTSC, EBU)
User Gama, User Matrix
3 channel Flesh-tone masking and multiple memory. Flesh-tone detail correction settings
Color Knee, Knee saturation and Knee detail functions
Real-time and offline diagnostic system with character display superimposed on PIX video output
2CH Intercom,2CH Audio
BNC SDI 1/2 (12G*/6G*/3G/1,5G) OUT or HD Return or Prompter HD out *with License
BNC SDI-IN/OUT HD Trunk in or HD Return in (Standalone or for wireless operation)
BNC SDI OUT -MONITOR or RETURN or VF OUT
BNC Analog Prompter out or GL in (standalone Operation)
Operation Temperature -20°C to +50°C

Configuration

Optional Studio Adapter for use with large broadcast box lens, compact studio and hand-held 2/3-inch bayonet lenses
Maintains backwards compatibility with existing KOKUSAI DENKI HDTV control panels, cables, and viewfinders
Ethernet control and assignment of control panels and CCUs
SK-UHD7000 is available with integrated UHD/HD COFDM wireless transmitter with Mesh intercom and Return video option
SK-UHD7000 is available with CU-IP7000 ST-2110 IP CCU (Box ) for Remote IP Production
MOIP SMPTE 2110 25G/10G -JPEG-XS Interface Board CU7K available for CCU CU-UHD7000 optionally
