Mixer video profesional - Ross Carbonite Ultra Multi-ME HD/UHD Production Switcher

SDI Inputs (HD-BNC)

24

18 12G Single Link or 16 Single link +2 Single Link or Quad Link

(HD-BNC – Standard BNC Adaptors sold separately)

NOTE: Internal sources, including MediaStores, ME, MiniME or Aux Bus re-entries, etc. do not reduce the external SDI input matrix.

SDI Outputs (HD-BNC)

12
(10 Assignable &
2 Dedicated MultiViewer)

11
(10 Assignable &
1 Dedicated MultiViewer)

(HD-BNC – Standard BNC Adaptors sold separately)

Full MEs (Mix/Effects Banks)

Up to 3

Up to 2

MiniMEs

4

2

MultiViewers with Tally & Source Names

Up to 4
(Up to 16 windows each)

Up to 2
(Up to 16 windows each)

Pattern Generators

2 per Full ME

Internal Format Converters/Frame Synchronizers

8
(Assignable to any input or output)

2
(Assignable to any input or output)

Internal Proc Amp/Color Correctors

8
(Assignable to any input or output)

2
(Assignable to any input or output)

2D DVEs

8
(Assignable to Full ME Transition Engines
Full ME or MiniME Keyers)

4
(Assignable to Full ME Transition Engines
Full ME or MiniME Keyers)

Keyers per Full ME

5
(4 Full Keyers + 1 Transition Keyer)

Keyers per MiniME

2

UltraChromeTM Chroma-Keyers

4
(Assignable to any Full ME or MiniME Keyer)

2
(Assignable to any Full ME or MiniME Keyer)

MediaStores

4
(Shared 8GB capacity)

2
(Shared 8GB capacity)

Supported Media File Types

.bmp (no alpha)
.jpg (no alpha)
.tga (with or without alpha
.png (with or without alpha
48KHz .wav file

USB Media Player

Allows for playout of ITU-T H.264 (MPEG-4 AVC) codec 1280×720 video clips (SD/HD video modes only)

Animated MediaWipes

Available on all Full MEs

Effects Memories with Memory AI^TM

100 per ME and MiniME

Custom Control Macros

256

Tallies

24

GPI/O

24

AES Audio Outputs

2

Direct Transfer of XPression Stills to MediaStores via Ethernet

LiveEDL (generates a standard Edit Decision List for use in post-production)

LIVE CG XPression graphic creation software included
(Allows live transfer of XPression still graphics to Carbonite Ultra MediaStores)

Standard Definition

480i
576i

59.94 (4:3 or 16:9)
50 (4:3 or 16:9)

High Definition (1.5 Gb/s)

1080pSF
720p
1080i

23.98/24/25/29.97/30
50/59.94
50/59.94

High Definition (3 Gb/s)

1080p

23.98/24/25/29.97/30/50/59.94/60

UHD (12Gb/s)

2160p

23.98/24/25/29.97/30/50/59.94/60

1 (HD/BNC)

(Tri-Level HD or Analog SD Black Burst)

Independent Reference Output (HD/BNC)

1

(Used with LiveEDL or MultiViewer Clock features)

Ethernet

1

RS-422 Editor Port

1

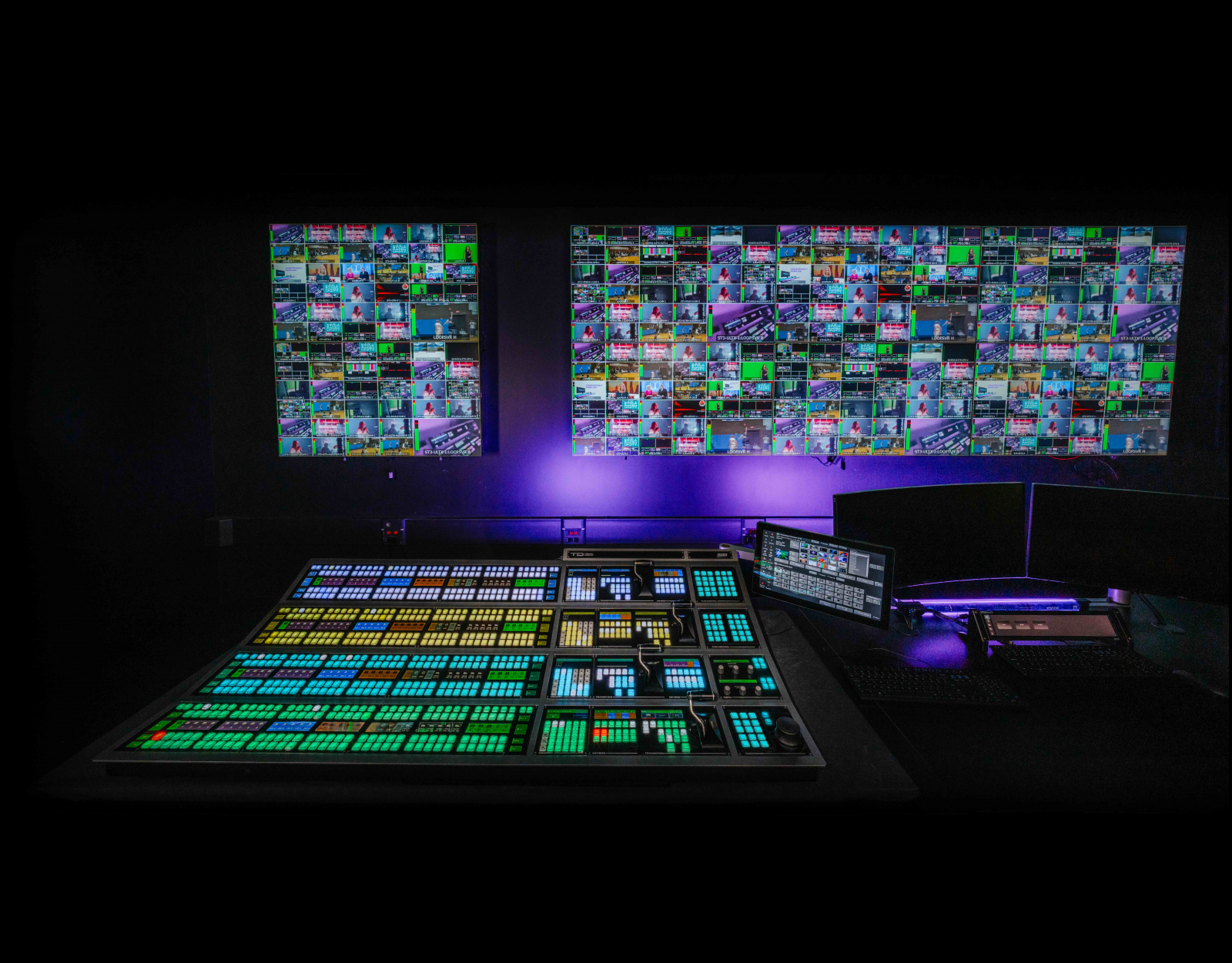

TouchDrive^TM Control Panels

DashBoard
(Virtual Panel or Ultritouch)

ViewControl^TM – Visual Production Control

External RCP Aux Bus Control Panels

RossTalk^TM

AMP
(Serial over IP)

Yamaha 01V96 & DM1000

TSL UMD 3.1

Ross CamBot

VISCA

Canon BU Series

Width (Front)

18.98

482.1

Width (Rear)

17.50

444.5

Height

1.63

41.4

Depth

10.00

254.0

Weight

Lbs.

Kgs.

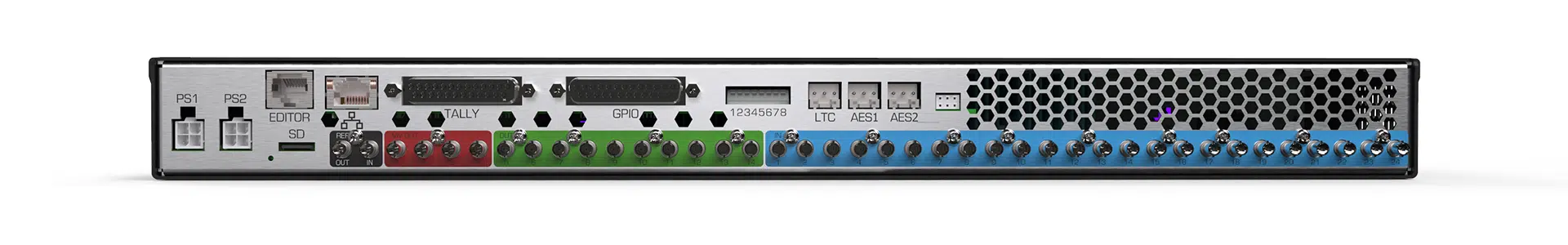

Carbonite Ultra 1RU Chassis

13

5.90

Power

Input Voltage

Power Consumption

Input Voltage

100~240V AC, 47-63Hz

114W – 7.6A – 15V

Carbonite Ultra Standard Power Supply (Brick)

ULTRIPOWER Rack-mount PSU

Enable ME 2 and UHD ME 1

Enable ME 3 and UHD ME 2

Enable MultiViewers 2 & 4 (SD/HD)

Enable MultiViewer 2

Enable Frame Sync/Format Converters, Proc Amps & Color Correctors on all inputs & outputs

Enable 7 assignable Frame Sync/Format Converters, 4 assignable output Format Converters & 7 assignable Proc Amp/Color Correctors

HDBNC to BNC adapter cable kit (8 cables)

Enables comprehensive audio mixing and processing capabilities, including:

16 audio channels per SDI input

16 audio channels per SDI output

Up to 24 analog audio inputs*

Up to 15 analog audio outputs*

Up to 3 AES Stereo audio inputs*

Up to 3 AES Stereo audio outputs*

Sample Rate Converters (16-Channel SDI & Stereo AES inputs)

*Requires external Audio Breakout Modules, support up to 3G SDI

48 Stereo Faders

Assignable to any SDI, AES or Analog source

Fader Volume

-∞db to + 20db

Pre/Post-Fade Audio Meters

Pre/Post-Fade Peak Indicators

Per-Channel EQ & Clip Indicators

Per Channel Mute, Solo, & Pre-Fade Listen (PFL)

Per Channel Mute, Solo, & PFL Clear

Per Fader Audio EQ Control

4-band (high-shelf, dual midrange, low-shelf)

Per Fader Compression/Limiting

Variable Attack & Release parameters
(Assignable pre- or post-EQ)

Per Fader Audio Follow Video mode

Aux Mixers

12 – assignable pre- or post-fader

Balance Control on Stereo Inputs

Pan Control on Mono Inputs

Mono Mode

Duplication of Mono channel (L or R) to create L-L / R-R channel pair

Analog Inputs

8

Analog Outputs

5

AES Digital Audio Inputs

1

AES Digital Audio Outputs

1

Adjustable Pre-Amps Gain on Analog Inputs

0-60dB

48V Phantom Power on Analog Inputs

Digital Pads on Analog Inputs

-20dB

Number of GPI/O

24

Number of Tallies

16

NOTE: All Ultra systems support up to three (3) 1RU Audio Breakout Modules which increases the total analog input matrix to twenty-four (24) and analog output matrix to fifteen (15).

The 1RU Audio Breakout Modules support up to 3G SDI, and are not compatible with Carbonite Ultra in UHD

All Carbonite Ultra systems carry a one-year, full transferable hardware and software warranty. Extended hardware warranties are available on an annual basis. Software maintenance and upgrades are included for the life of the product.
