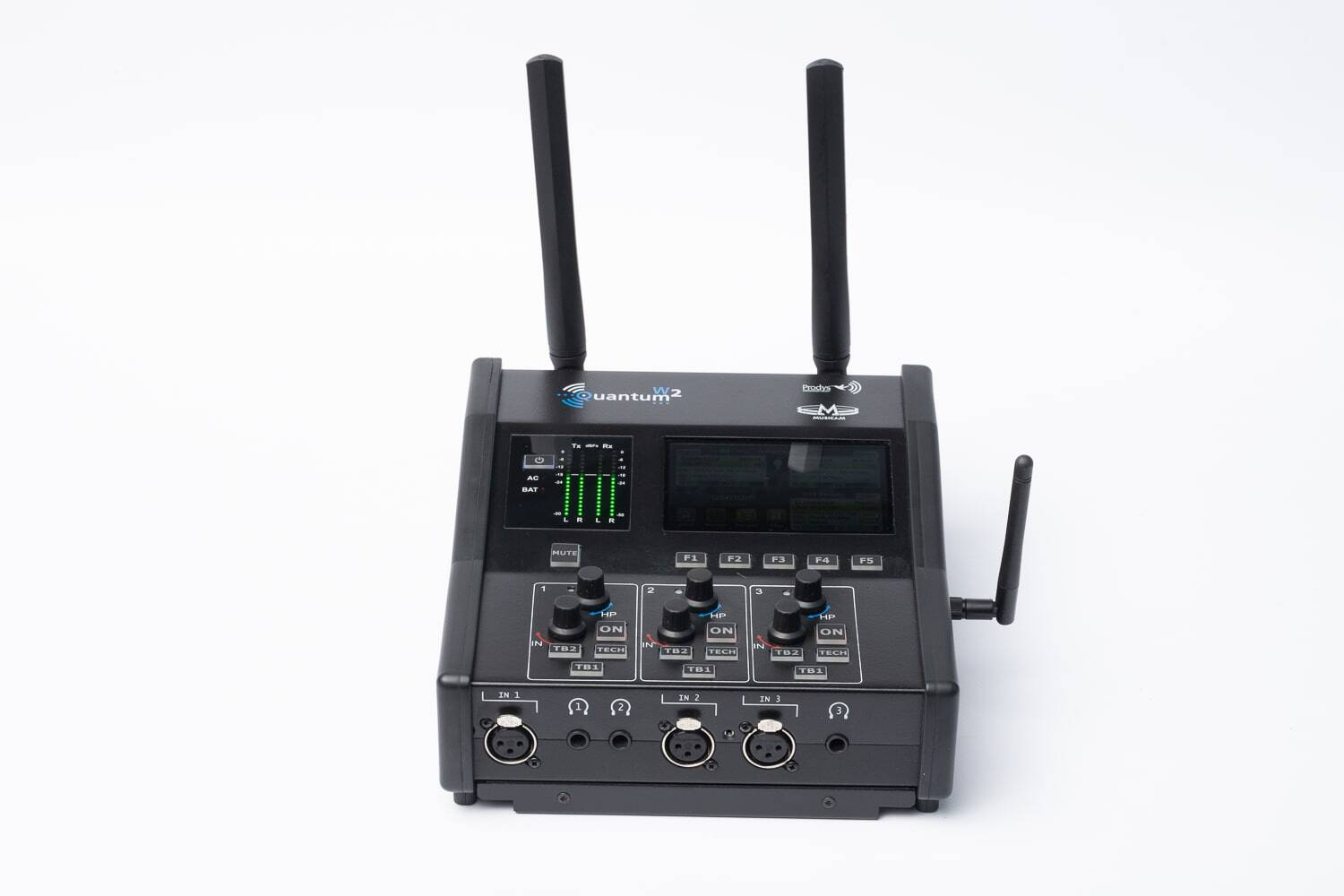

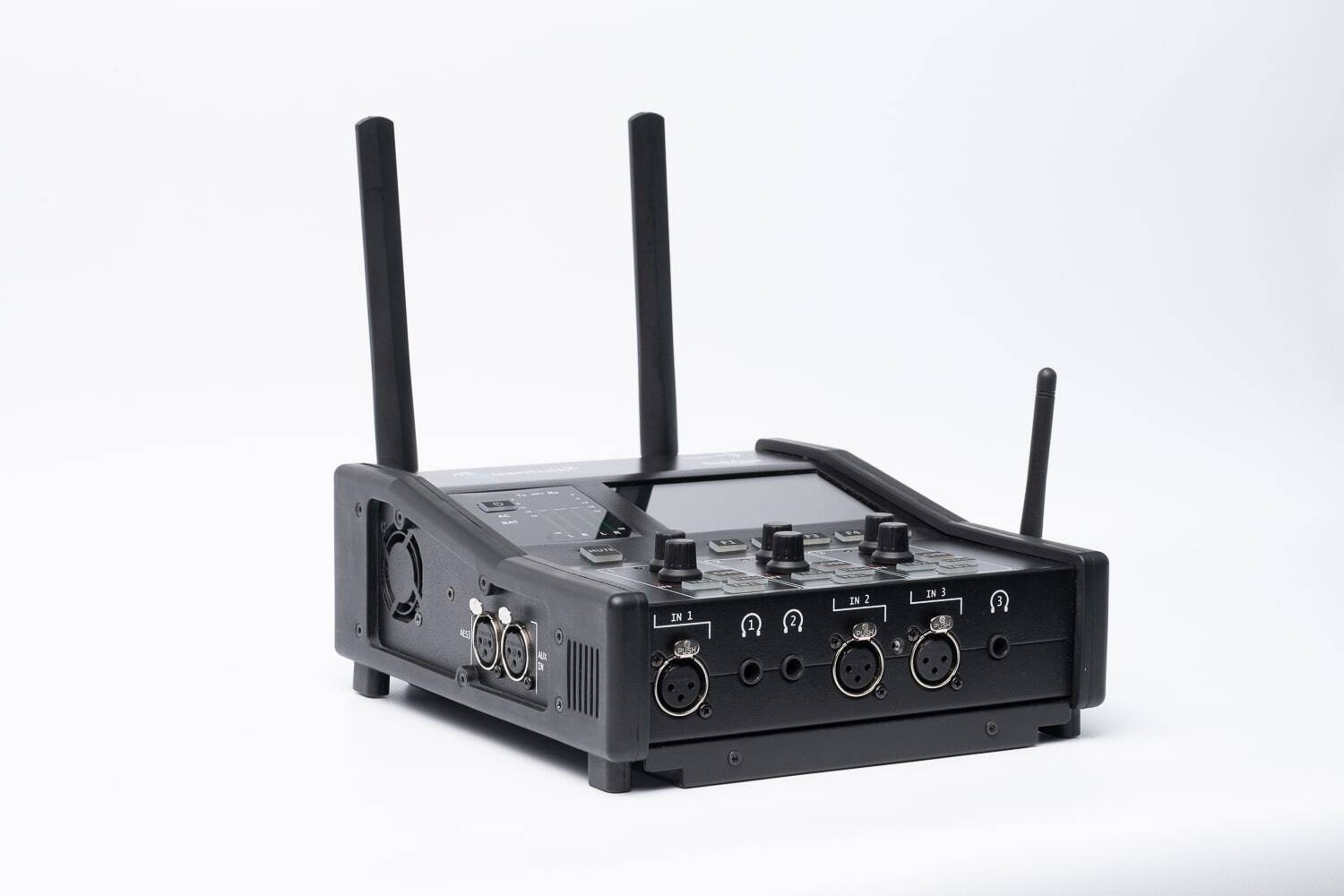

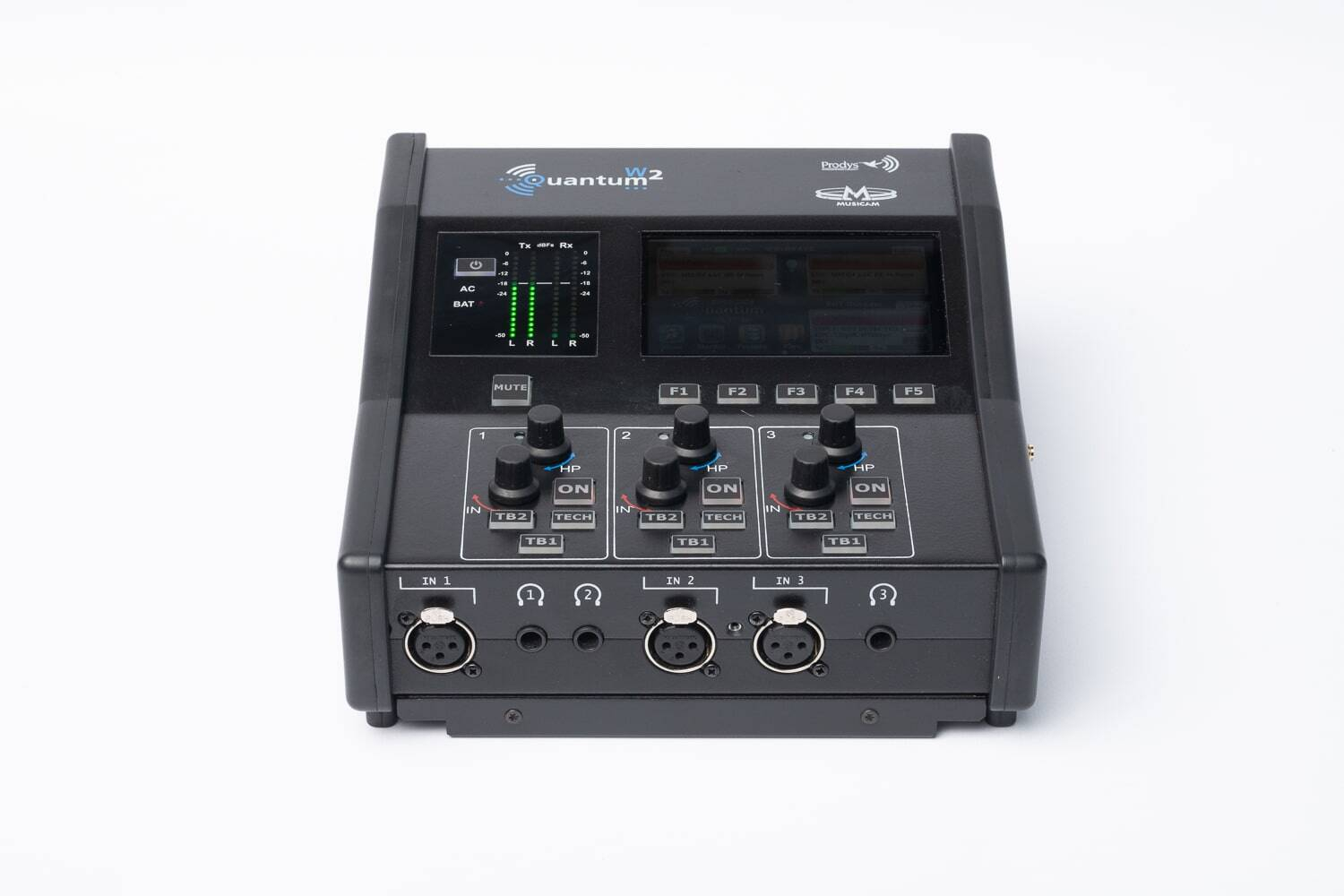

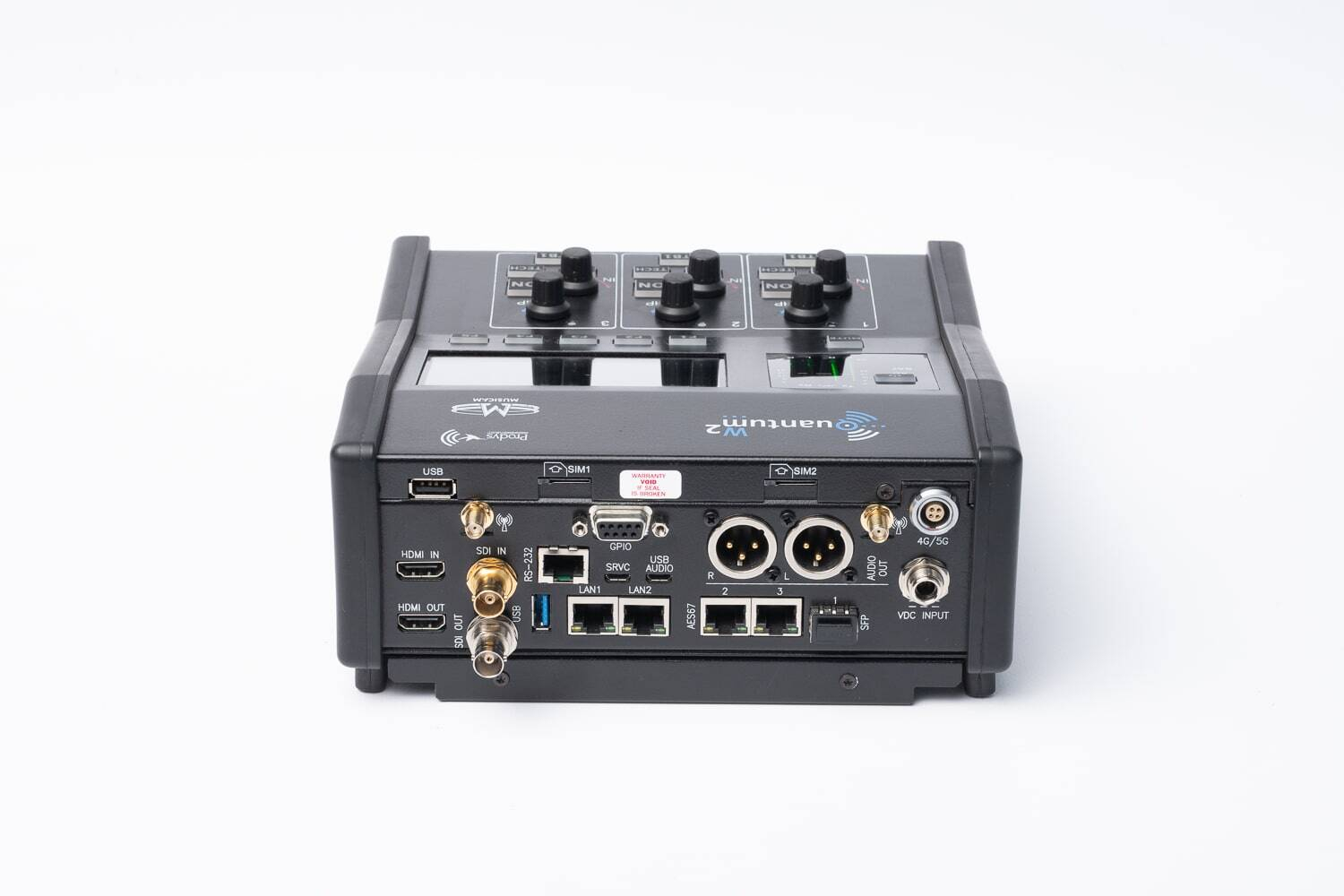

Unitate portabila comentator Prodys Quantum2 W

AUDIO

• 3 x Mic/Line Audio Inputs available to be mixed, encoded and streamed in Stereo mode.

• Additional audio inputs: USB stereo, AES/EBU, Line.

• Support Mpeg1/2 LayerII, AAC, apt-X, G711/G722, OPUS, SRT and PCM.

• Dante/AES67 or Ravenna/AES67 available.

VIDEO

• H.264 and H.265 Video Encoder for commentator’s camera.

• H.264 and H.265 Video Decoder for remote commentary scenarios.

• SRT protocol available.

• Streaming Video Forwarding with Audio Embedding.

COMMUNICATIONS

• Inherits world-class IP technology from the Prodys Audio/Video codec family:
  – Automatic Jitter buffer. This adjustable buffer avoids audio dropouts in the IP connection.
  – Automatic synchronization adjustment with the transmitter site rate, to give a constant delay in IP communications.
  – Prodys NAT Traversal Streaming Protocol permits router firewall pass-through with zero configuration.
  – Prodys Real time Network Analyzer: to monitor critical network parameters in real time during the connection.
  – FEC (Forward Error Correction). Up to 24 different schemes are available, to fit to the desired delay and available bandwidth.
  – Error Concealment mechanisms on Mpeg audio modes are supported to reduce the impact of packet losses.

• Bonding or Diversity with up to 7 IP links for secure audio streaming and the best audio quality possible.

• 2 x Ethernet interfaces: Either to split streaming and control or for bonding/diversity with 2 IP links.

• LTE/5G IP data links with bonding capabilities. 2 x Internal modem or External LTE/5G module with 4 modems.

• Wi-Fi interface 802.11b/g/n compatible Bonding with Ethernet or LTE/5G.

• IP Compatibility: SIP/SDP/RTP/STUN protocols are supported according to the standard defined by the N/ACIP project within the EBU group.

• Local or remotely (TCP/IP) upgrading of one or several units at once using the same utility. Factory software upgrades can be downloaded.

OPERATION

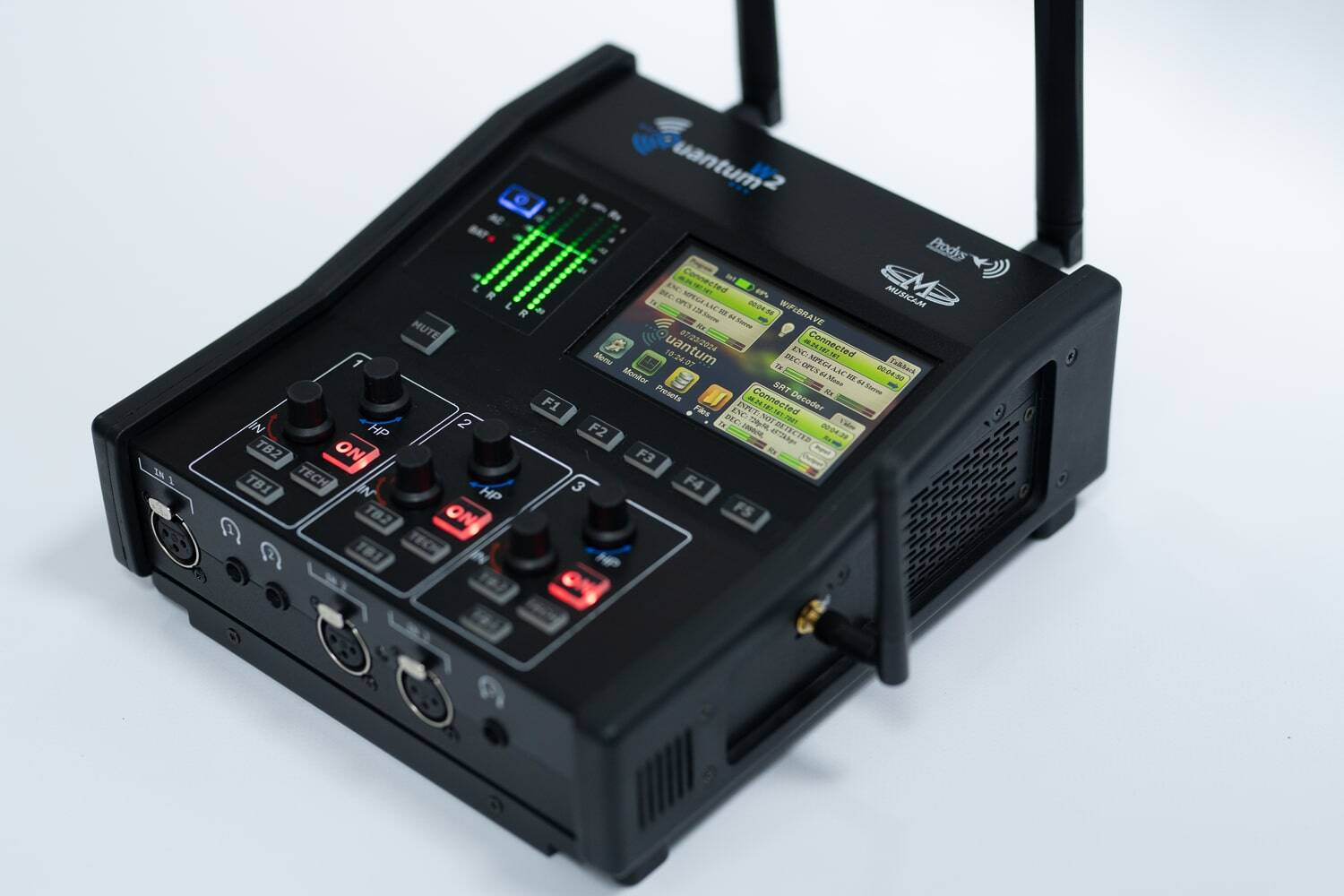

• User friendly interface via touch panel, built-in Web Server or ProdysControlPlus application.

• User Access Control to define different access restrictions in a per user basis.

• Configuration presets to define different configurations for all or some specific parameters.

• Alarms: Real Time alarms management.

• Serial port to transmit/receive ancillary data along with the audio.

• GPIO port: 2 inputs/outputs. User configurable with multiple functions such as remote contact closures.

• Long duration battery with charge and status indications. It can be charged on system.

• Internet Sharing, so external devices can access the Internet through a Wi-Fi hotspot.

• Ethernet Tunnel to link two remote local networks.

3 x Mic/Line Audio Inputs

• XLR connectors.
• Electronically balanced inputs.
• Independent Level Control (local or remote).
• 48V Phantom powered.

1 x Auxiliary Audio Input

• XLR connector.
• Electronically balanced input.

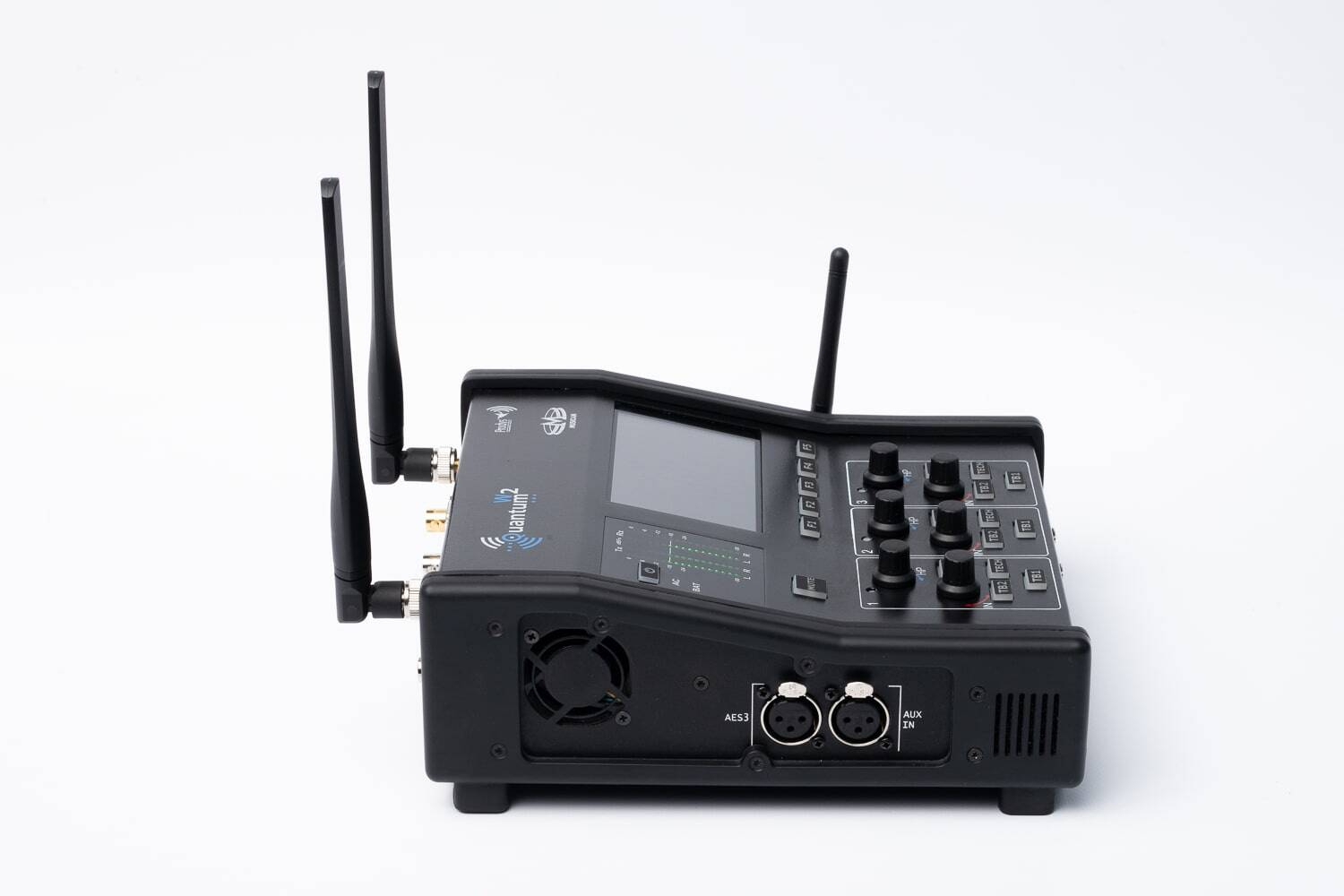

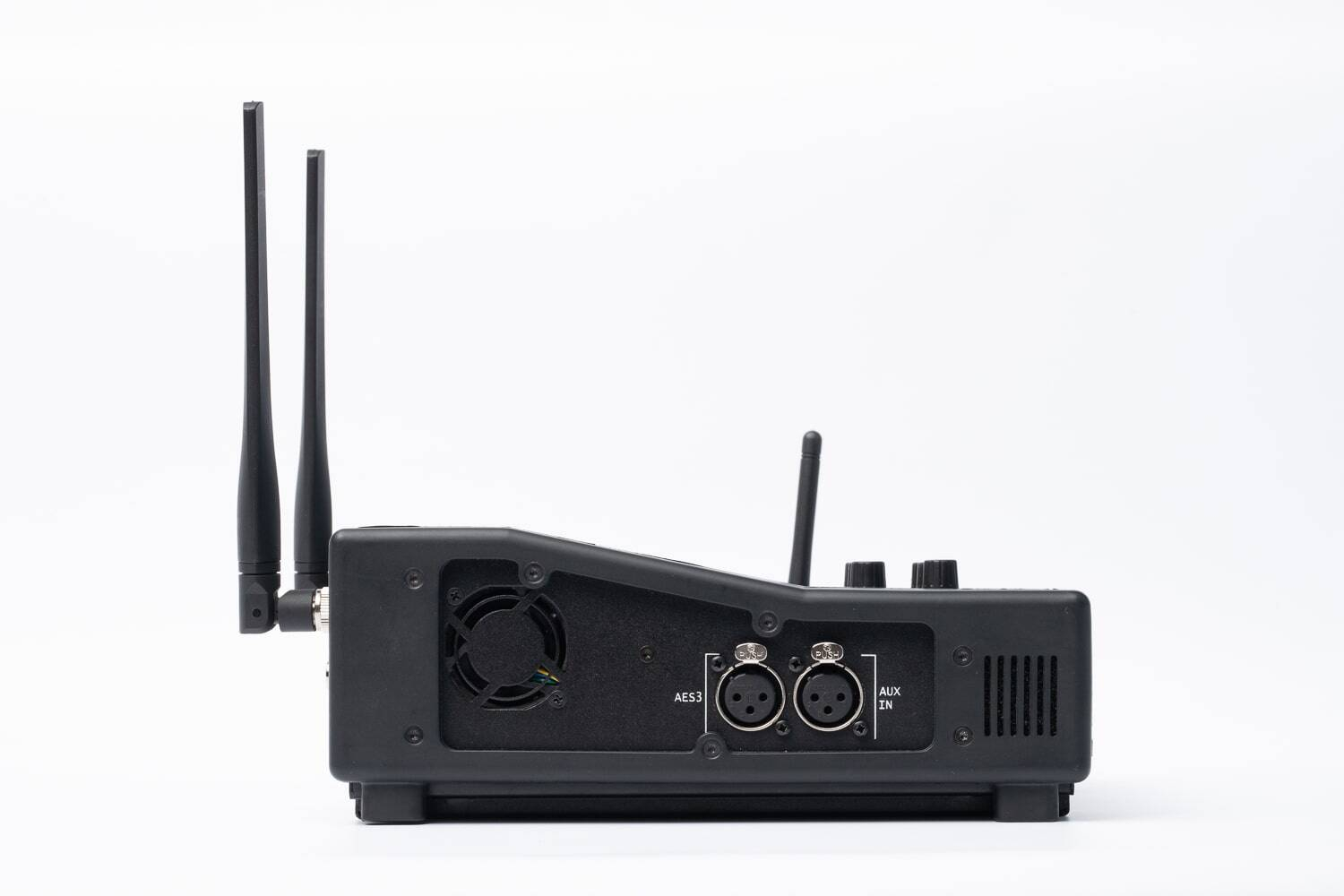

1 x AES/EBU Audio Input

• XLR connector.

3 x Headphone stereo outputs

• 6,35 mm jack connectors.
• Independent Level Control.
• User configurable.
• Tx/Rx audio level balance control.

1 x Aux Stereo Audio output

• XLR connectors.
• User configurable.

1 x USB Stereo Audio Input/Output

8 x Dante/Ravenna/ AES67 Audio Inputs/Outputs (optional)

Audio Compression

• PCM (16,20 & 24 bits)
• G722, G711 A/μ Laws
• MPEG 1,2 Layer II
• OPUS
• Enhanced apt-X™
• MPEG AAC LC, LD, ELD & HE
• SRT Audio (optional)

Video (optional)

• HDMI or SDI video input
• HDMI or SDI video output
• H.264 & H.265 video encoding and decoding
• SRT, BRAVE, MPEGTS or RTMP video protocols

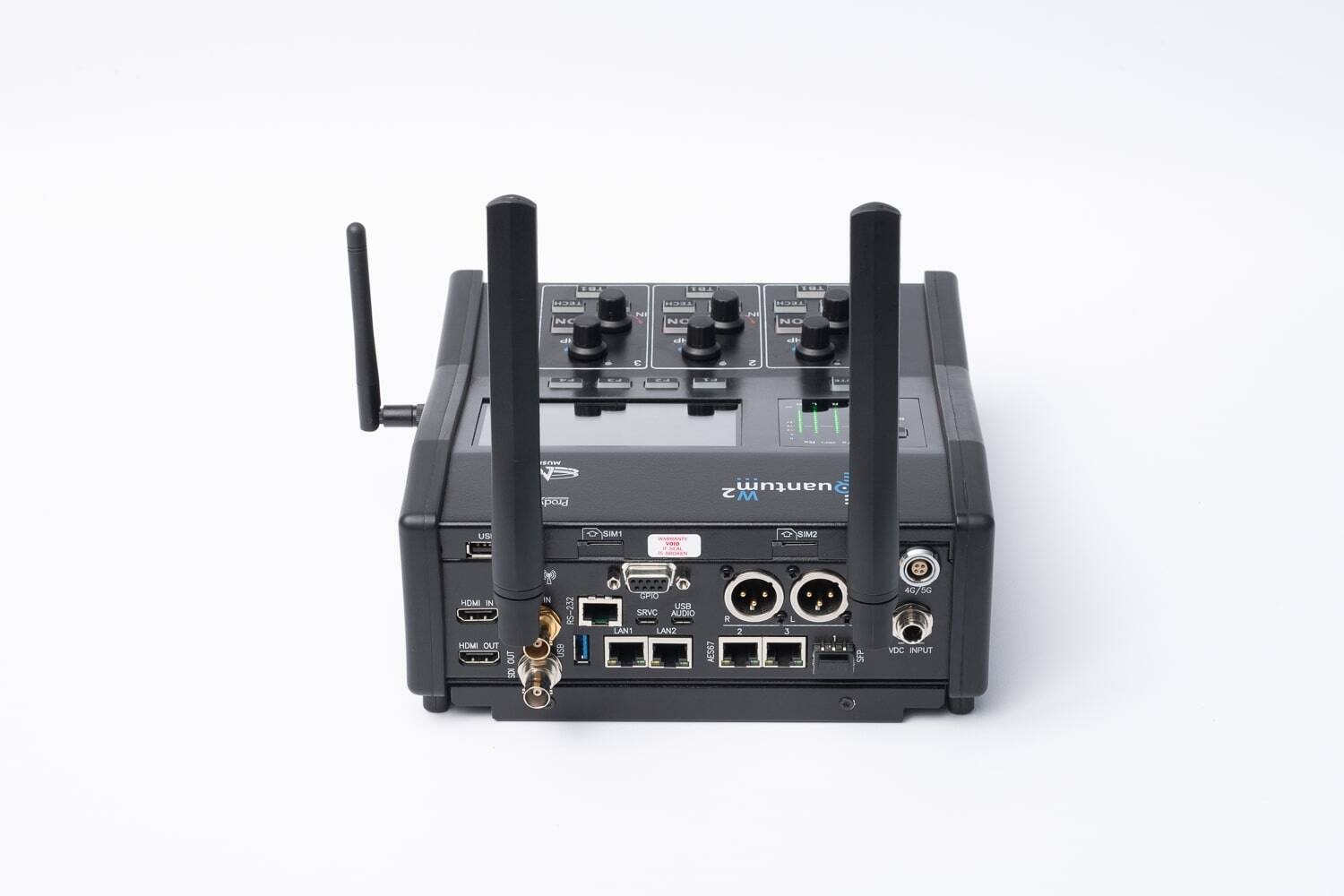

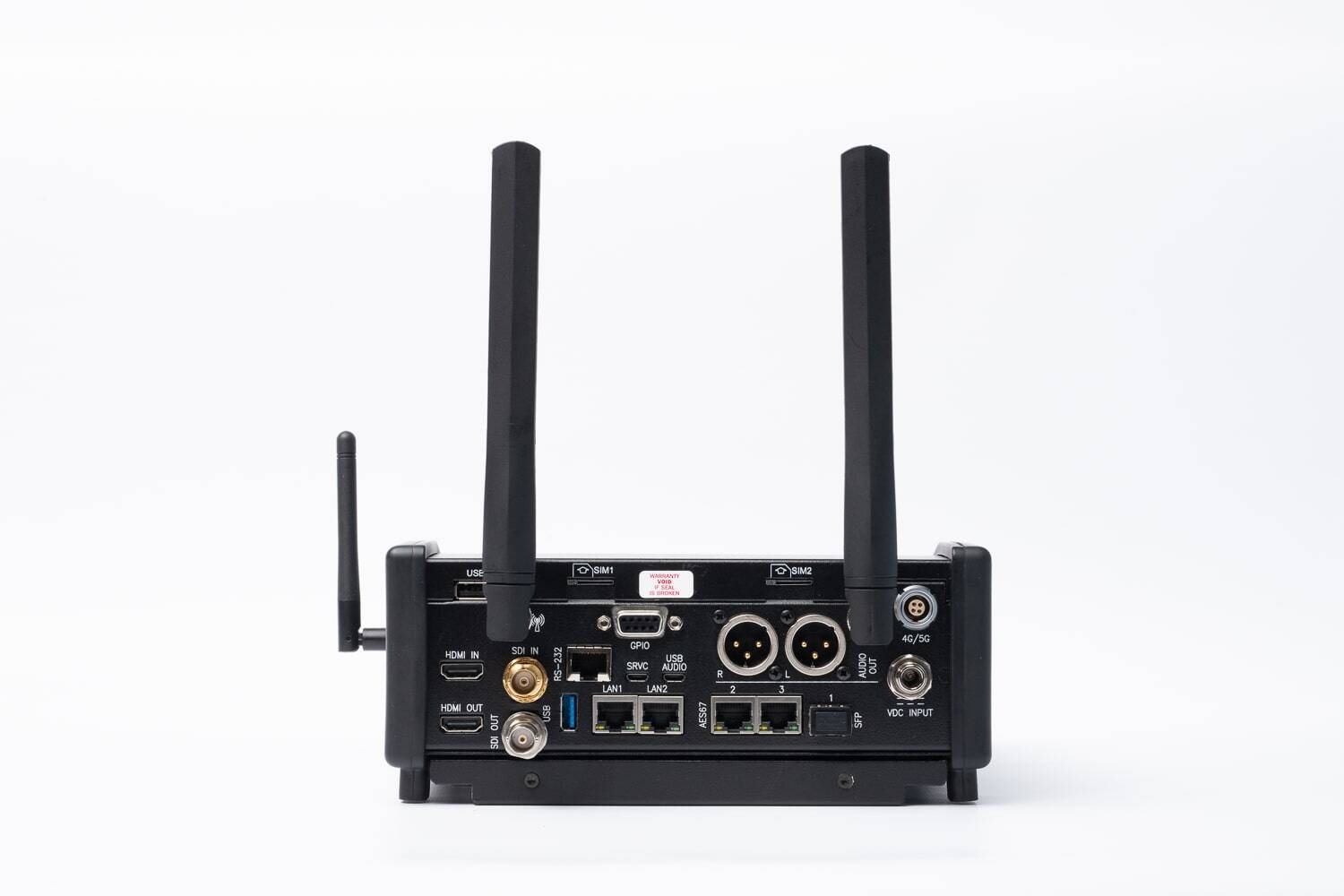

LAN

• 2 x Ethernet ports for bonding, diversity or splitting control and audio stream.
• 2 x RJ45, 10/100/1000BaseTx Ethernet connectors.
• TCP/UDP/IP, Unicast, Multicast & Multi-Unicast.
• DHCP, SNMP, DNS, SNTP, SMTP, HTTP, IGMP, ICMP, VLAN.
• SIP/SDP/RTP/STUN comprising Tech 3326 EBU N/ACIP standard.
• SIP Diversity with two IP interfaces according to Tech 3368 EBU N/ACIP standard.
• FEC as per RFC 2733.
• Error Concealment.
• Prodys NAT Traversal Streaming Protocol.

Wi-Fi

• Wi-Fi interface 802.11 b/g/n compatible.
• Available for bonding or diversity with Ethernet and/or LTE/5G.
• Hotspot for Internet Sharing

LTE/5G (optional)

• Streaming over LTE/5G networks with two options:
  • 2 x Internal modems.
  • External Communications Module. with up to 4 x LTE/5G SIM cards.

GPIO and RS232 Ports

• 2 x contact closure inputs and 2 x relay outputs.
• User configurable. Remote contact closures.
• 1 x serial port (DB9F connector).
• Tx and Rx of ancillary data along with the audio.

External Power Supply & Battery

• Input: 100-240VAC, 1.8A / Output: 19VDC, 3.42 A.
• Li-Pol battery pack (optional)

Dimensions & Weight

• Width: 210 mm; Height 85 mm; Depth: 235 mm.
• Weight: 1,9 Kg.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
