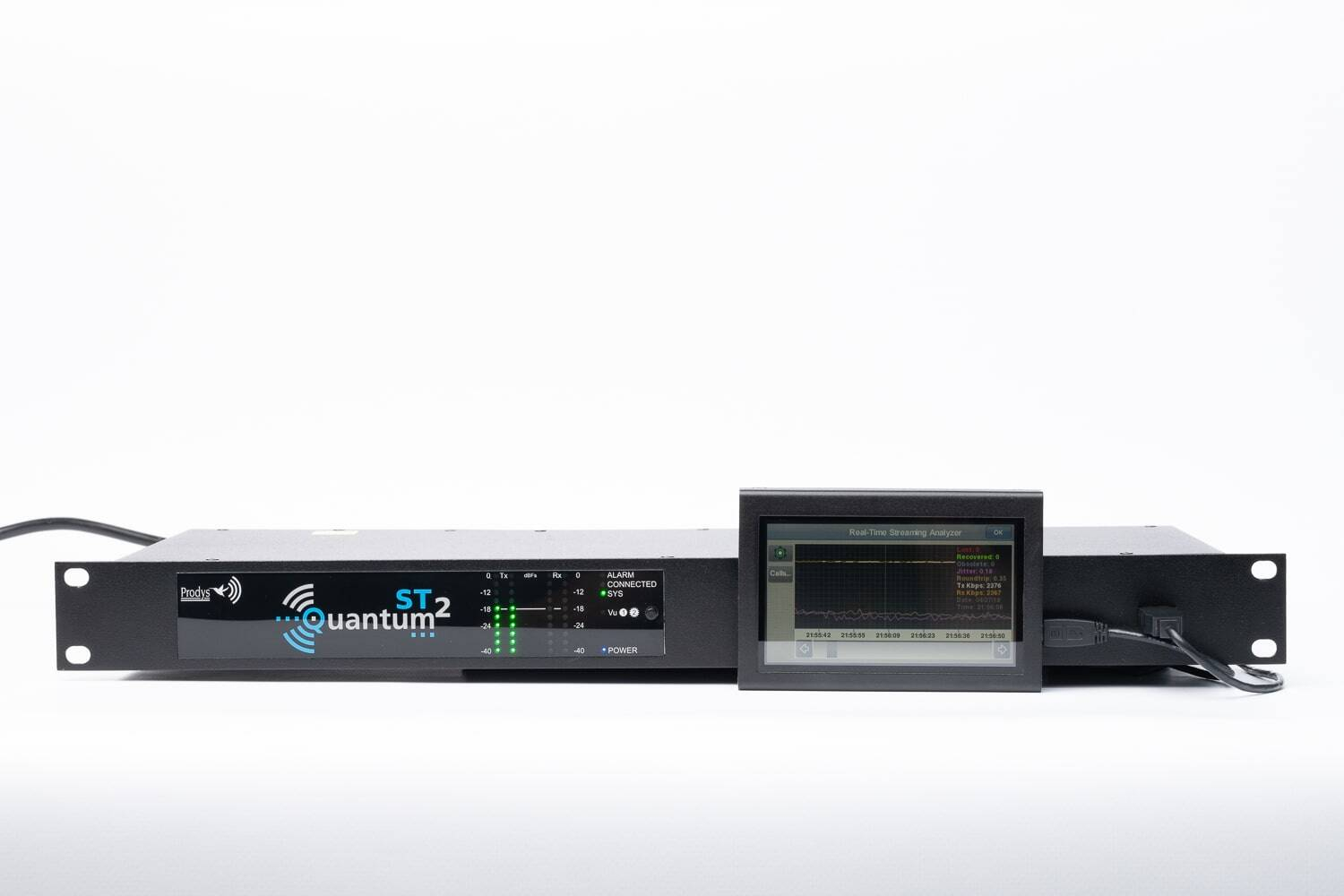

Codec audio studio Prodys Quantum2 ST

AUDIO

• Available with One or Two Stereo Audio Inputs/Outputs with XLR connectors.

• Analog and Digital (AES/EBU) outputs and inputs.

• Supports Mpeg1/2 LayerII, AAC, apt-X, G711/G722, OPUS, SRT Audio and PCM.

• Optional Dante/AES67 or Ravenna/AES67 to provide an uncompressed digital audio interface in a single Ethernet cable.

COMMUNICATIONS

• Inherits world-class IP technology from the Prodys Audio/Video codec family:
  – Automatic Jitter buffer. This adjustable buffer avoids audio dropouts in the IP connection.
  – Automatic synchronization adjustment with the transmitter site rate, to give a constant delay in IP communications.
  – Prodys NAT Traversal Streaming Protocol permits router firewall pass-through with zero configuration.
  – Prodys Real time Network Analyzer to monitor critical network parameters in real time during the connection.
  – FEC (Forward Error Correction). Up to 24 different schemes are available, to fit to the desired delay and available bandwidth.
  – Error Concealment mechanisms on Mpeg audio modes are supported to reduce the impact of packet losses.

• 2 x Ethernet interfaces: Either to split streaming and control or for bonding/diversity 2 IP links.

• IP Compatibility: SIP/SDP/RTP/STUN protocols are supported according to the standard defined by the N/ACIP project within the EBU group.

• Local or remotely (TCP/IP) upgrading of one or several units at once using the same utility. Factory software upgrades can be downloaded.

OPERATION

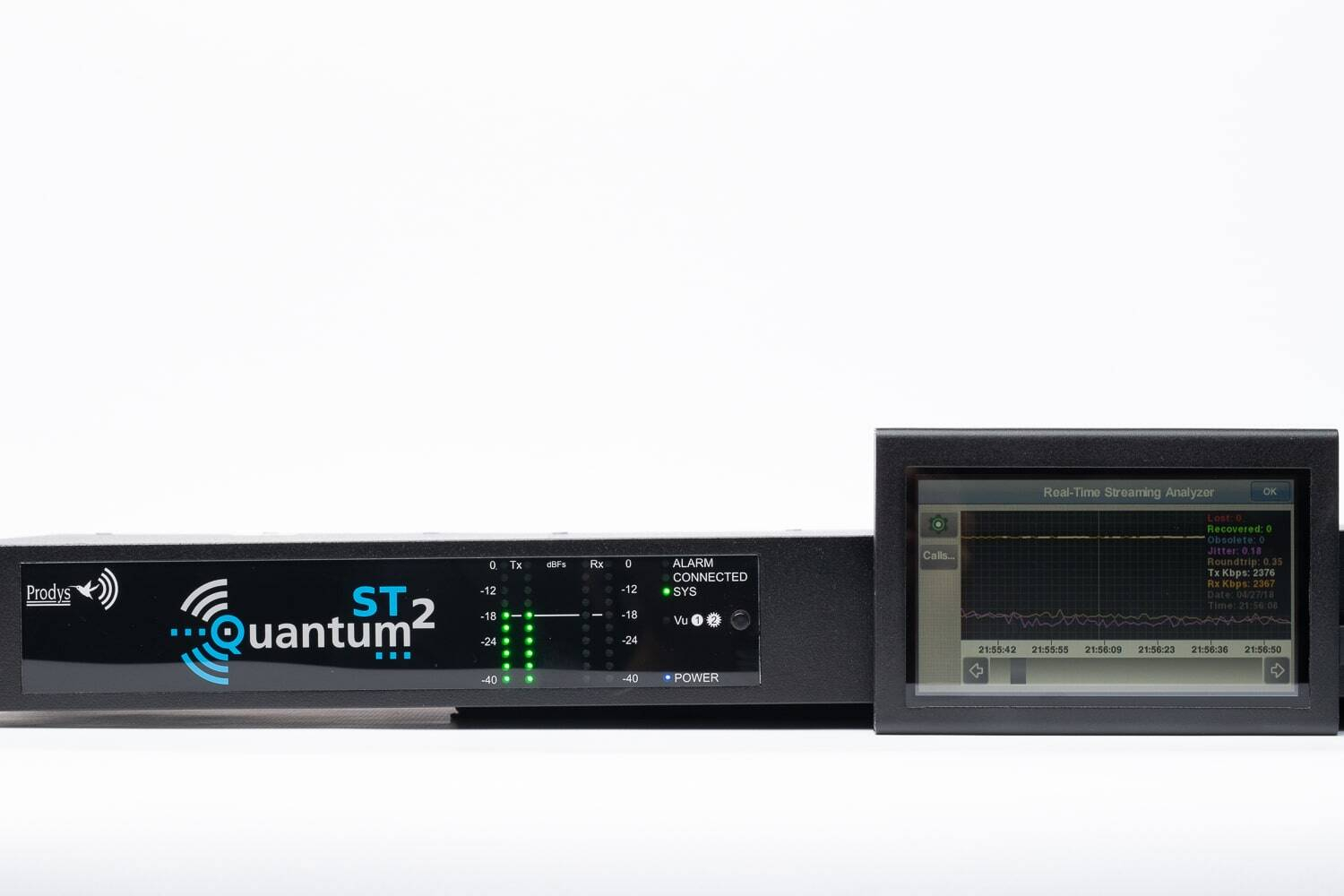

• User friendly interface via touch panel, built-in Web Server or ProdysControlPlus application.

• User Access Control to define different access restrictions in a per user basis.

• Configuration presets to define different configurations for all or some specific parameters.

• Alarms: Real Time alarms management.

• Serial port to transmit/receive ancillary data along with the audio.

• GPIO port: 7 inputs/outputs. User configurable with multiple functions such as remote contact closures.

• WEBCALL license to provide ad hoc audio links from Internet browsers in laptops and smartphones.

• WEBMONITOR license for remote audio monitoring.

• Ethernet Tunnel to link two remote local networks.

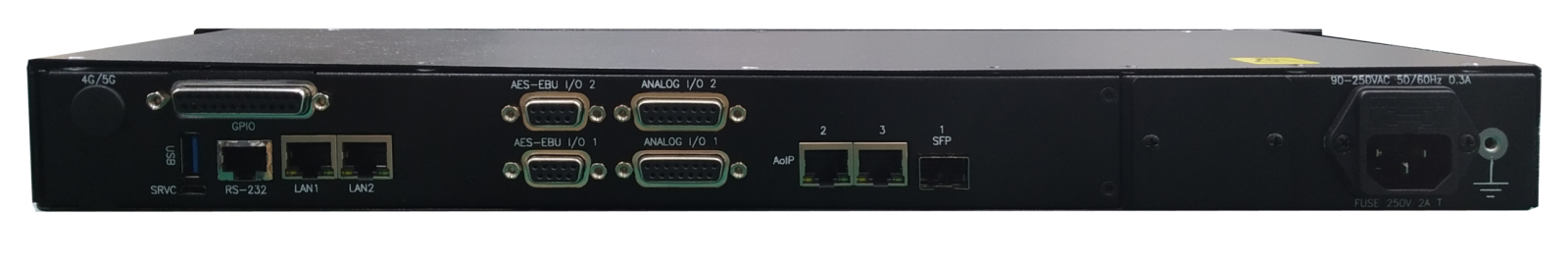

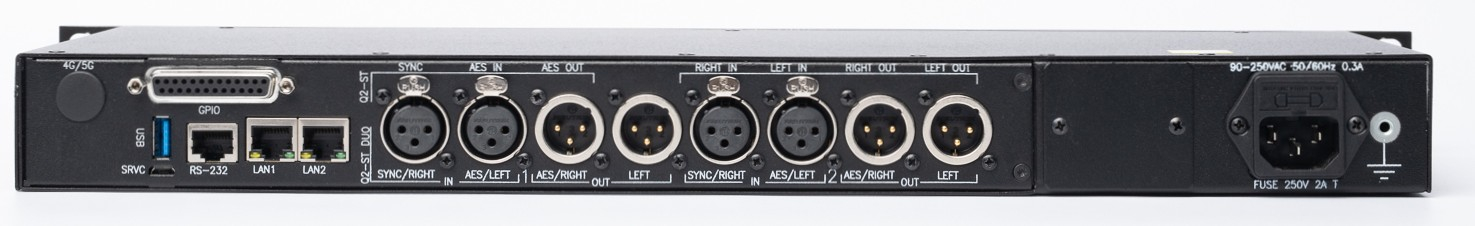

2 x AES/EBU Stereo Input/Output

• Available with one or two Input/Outputs (XLR connectors).

• AES/EBU: EIAJ CP-340 type I/IEC-958 Pro

• Rate Converter: 1:3 to 3:1.

2 x Analog Stereo Input/Output

• Available with one or two Input/Outputs (XLR connectors).

• Maximum level: +22 dBu.

• Input Impedance: 20 Kohm.

• Output Impedance: 50 ohm.

Audio Compression

• PCM (16,20 & 24 bits)

• G722, G711 A/μ Laws

• MPEG 1,2 Layer II

• OPUS

• Enhanced and Standard apt-X™

• MPEG AAC LC, LD, ELD & HE

• SRT Audio (optional)

LAN

• 2 Ethernet ports for bonding, diversity or splitting control and stream.

• 10/100/1000BaseTx Ethernet, RJ45 connectors.

• TCP/UDP/IP, Multicast & Unicast.

• DHCP, SNMP, DNS, SNTP, SMTP, HTTP, IGMP, ICMP, VLAN (optional).

• SIP/SDP/RTP/STUN comprising Tech 3326 & 3368 EBU N/ACIP standard.

• FEC as per RFC 2733.

• Error Concealment.

• Prodys NAT Traversal Streaming Protocol.

LTE/5G (optional)

• Streaming over LTE/5G networks through a external communications module. Up to 4 x LTE/5G SIM cards.

GPIO and RS232 Ports

• 7 General Purpose Inputs/Outputs.

• User configurable. Remote contact closures.

• 1 serial port (RJ45 connector).

• Tx and Rx of ancillary data along with the audio.

Power Supply

• 90 – 250VDC [@ 47-65Hz]. Power consumption less than 50W (average ~20W)

Dimensions & Weight

• 1U x 19” rack system: 43.4 x 482.5 x 180mm (H x W x D)

• Weigth : 2.4 Kg.
