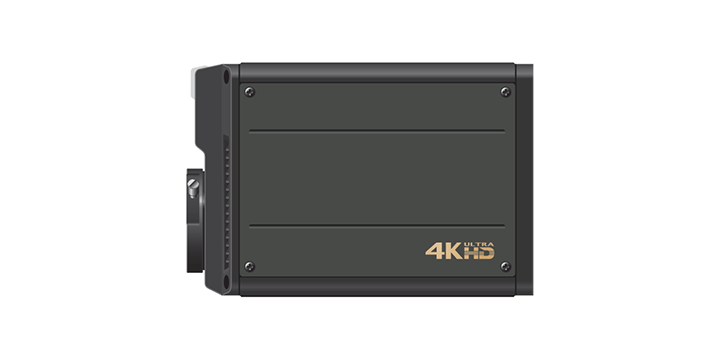

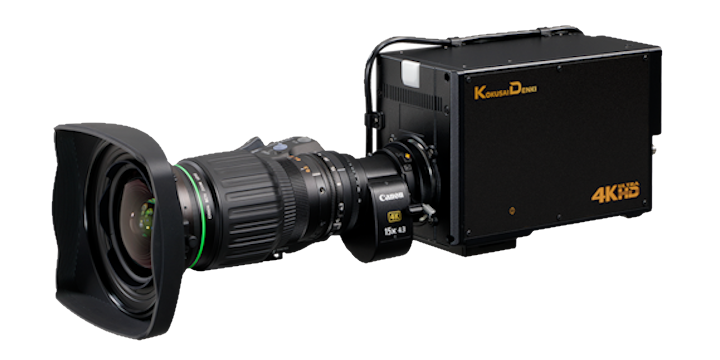

DK-H700E UHD-4K/HDTV Box Camera

Features

• New developed 3-chip 2/3-inch CMOS image sensors with global shutter make effective 4K 8,3 million pixels. Also, global shutter with Build in Low pass filter (LPF) eliminates jitter when shooting LED panel and skew when shooting fast moving object and unwanted Moire effect.

• New developed optical block adopts the prism which conform to the wide color gamut standard BT-2020 and offers wider color of 4K video.

• Low-noise circuit technology provides a signal to noise ratio better than - 62dB.

• The standard sensitivity over F10(59.94Hz) / F11(50Hz) at 2.000 lx. In addition, the high gain mode can increase the gain up to +36dB and two second frame accumulation mode to reproduce dark images with a minimum illumination of 0,001 lx at F1.4.

• Image Sensor: 3-chips, 2/3-inch, 9 Mpixel CMOS image sensor with global shutter

• Bayonet lens mount

• Effective pixels: 3.840 (H) × 2.160 (V)

• Multi-format output: 2160p, 1080psf, 1080p, 1080i, 720p

• Frame Rate: 59,94 Hz, 50 Hz

• 2.000 TVL UHD over 1,000 lines of HDTV resolution

• HDR conforms to Hybrid Log-Gamma (HLG) and Perceptual Quantization (PQ) and S-LOG-3

• Real-time Lens Aberration Correction (RLAC)

• Motorized ND filter wheel and ECC Filter

• Remote Back focus adjustment with RU-1500JY-S11 Remote control unit (Lens should support)

• All other features are same as SK-UHD7000 portable type studio camera

• Dimensions: 110 (W) x 140 (H) x 205 (D) mm

• Power Supply Voltage: DC 12 V (10,5 V to 17 V)

• Weight: approx. 2,5 kg, power consumption approx. 70W

• Operation Temperature: -20°C to +45°C, -4°F to +113°F

• Low fan noise ideal to use at Theaters & Music Halls

• Remote control: via ethernet or multi connector

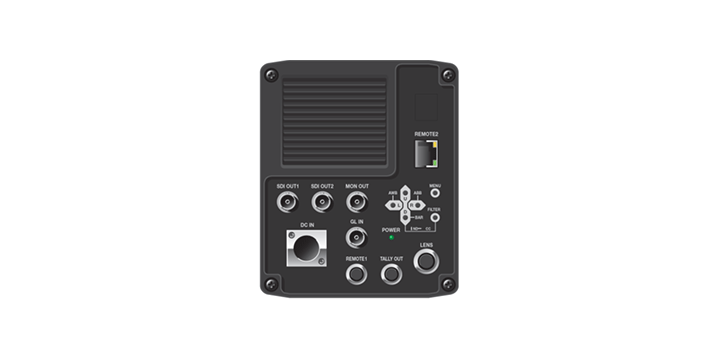

• Video Output: 2XBNC: 12G/6G/3G/HD-SDI, 1xBNC MONITOR: HD-SDI

System example:

Stand alone

Robotic Control
