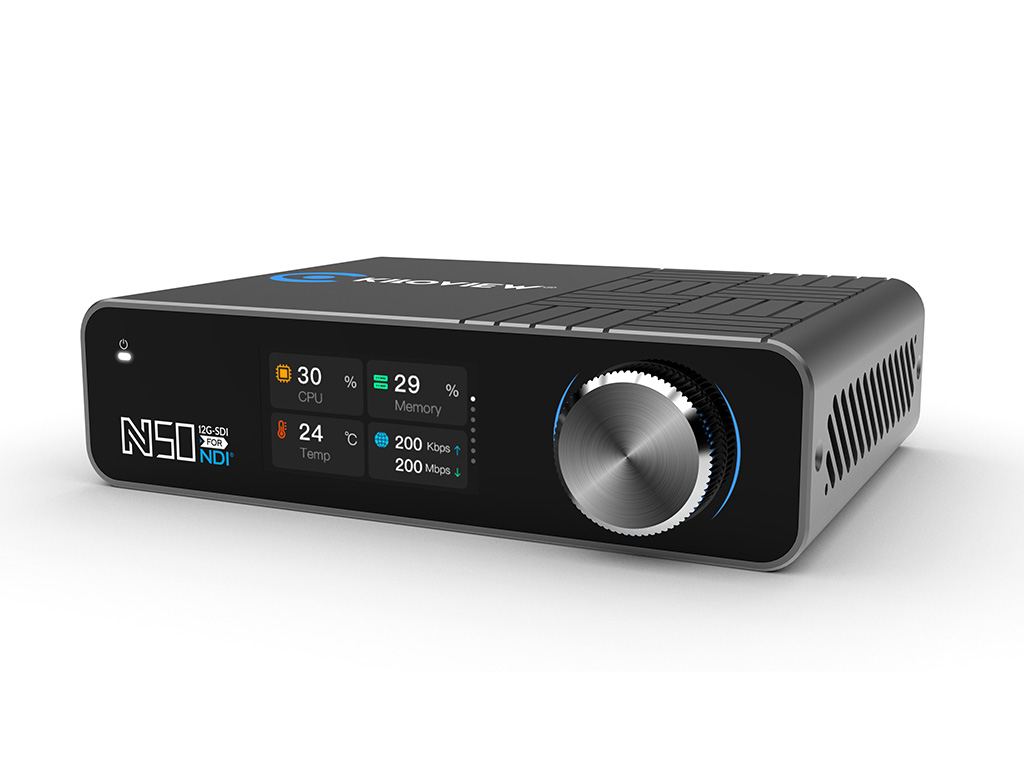

Kiloview N50 (4Kp60 SDI/USB to NDI Encoder/Decoder)

Bi-directional Encoding & Decoding Converter

The N50 is a versatile converter that integrates both encoding and decoding functionalities in one compact unit.

• In encoding mode, the N50 easily converts a 4K 12G-SDI video into NDI High Bandwidth, NDI HX2/HX3, SRT or RTMP video streams.

• In decoding mode, it automatically detects and adapts to incoming NDI High Bandwidth, NDI HX2/HX3, SRT, or RTMP streams. A loop-out also allows monitoring on a display or projector for easy video signal check in real time.

With its dual-mode flexibility, the N50 is ideal for a wide range of professional AV workflows.

4K HDR Tier-1 Image Quality

Kiloview N50 delivers 4:2:2 10-bit HDR 4K video, providing exceptional color accuracy, rich tonal range, and lifelike, vivid visuals. This high-end image quality is ideal for professional applications such as broadcasting, medical imaging, and content creation.

Comprehensive Protocol Support for Seamless Format Conversion

The N50 supports all major IP transmission protocols—NDI High Bandwidth, NDI HX2, NDI HX3, SRT, RTMP, RTSP, HLS, UDP, and RTP, allowing effortless conversion and interoperability between different streaming formats.
Whether you’re pushing a high-quality NDI feed to the network or pulling an SRT or RTMP stream for local output, the N50 bridges protocols and devices, ensuring smooth operation in any hybrid workflow.

Broadcast-Grade Interlaced and Progressive Signal Handling

The N50 fully supports 1080i60 interlaced signals throughout the entire processing chain:
• 1080i50/i60 in → 1080i50/i60 out
• 1080i50/i60 in → 1080p50/p60 out
This flexibility ensures smooth operation in studios working with both interlaced and progressive formats.
N50 supports injection of SEI timecode and synchronization of multi-camera feeds to embedded system time or source device time.​

*N50 supports processing of 1080i50/i60 signals, with the capability for native 1080i50/i60 output. This feature is available when the device utilizes ​ NDI HB or H.265 codec, but is ​not supported under the H.264 codec.

Flexible Audio Options,
Just the Way You Need

The N50 offers comprehensive audio integration to suit a wide range of production scenarios:
• SDI audio de-embedding for direct mixer connection
• Real-time analog audio embedding via 3.5mm input
• Up to 8-channel synchronized audio decoding transmission

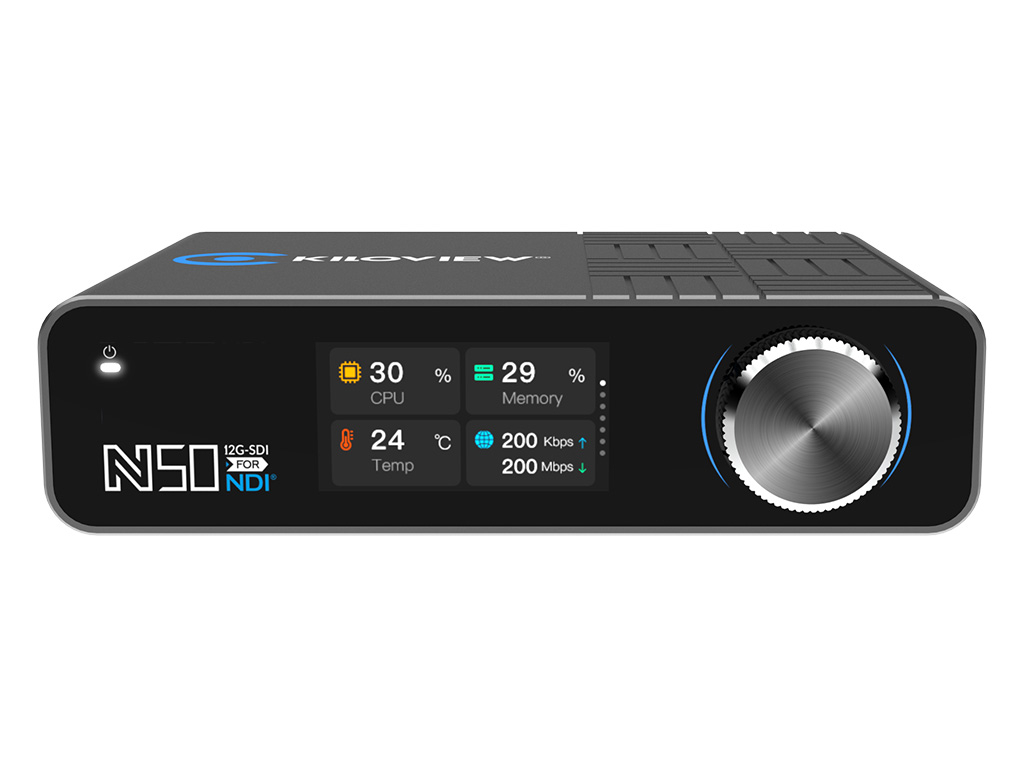

Large-sized Color LCD Screen with Tally

• Clear status display with intuitive navigation: Real-time display of network connection, operating mode, and device information keeps you fully informed, while the intuitive scroll wheel allows quick navigation and precise adjustment of key settings.
• Tally Indicators: Front panel LCD, rear Tally LEDs, and external Tally support provide clear red/green indicators for PGM (program) and PVW (preview) status.
