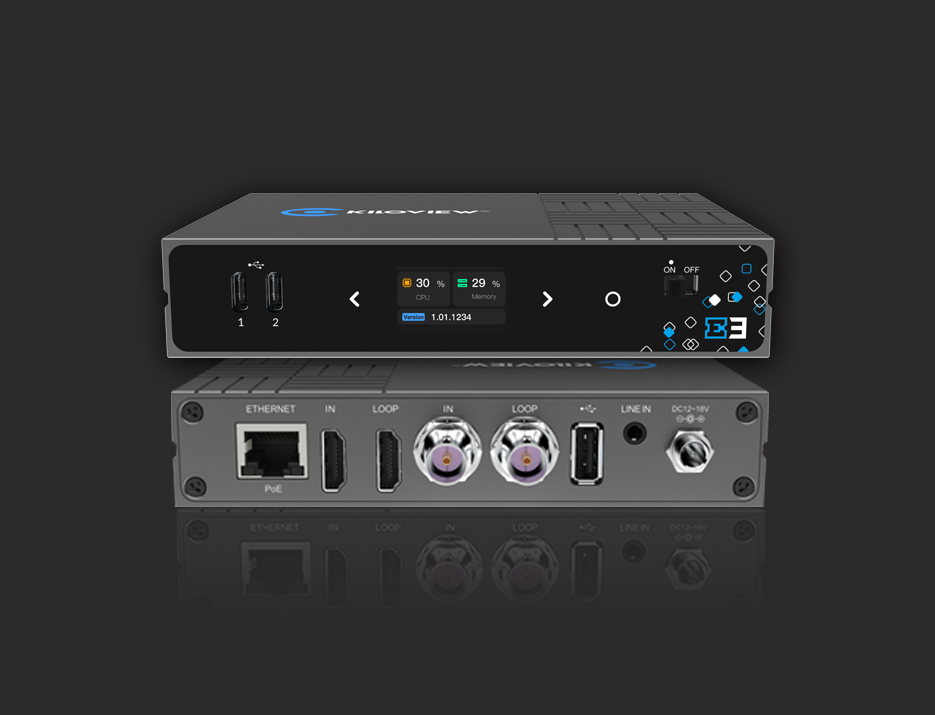

Kiloview E3 Dual-Channel 4K HDMI & 3G-SDI HEVC Video Encoder

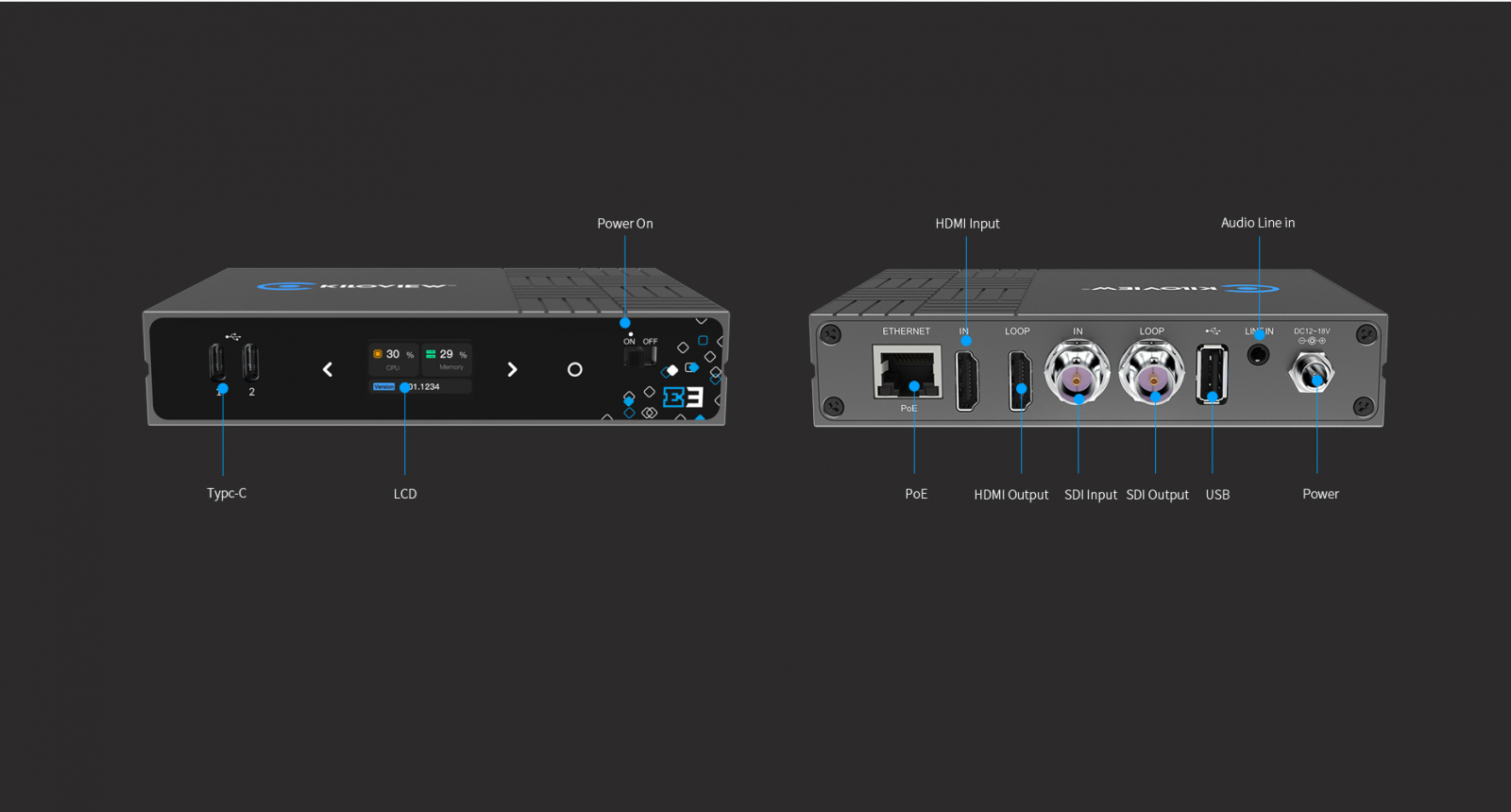

Encoding Both Video Inputs of HDMI & 3G-SDI

E3 allows encoding video sources from either port of 3G-SDI or HDMI, mixing both video sources into one output in PIP or PBP mode or even encoding video sources into up to 1080p60 from both ports of HDMI and 3G-SDI simultaneously for high-quality live streaming.

Up to 3840x2160 @ 30Hz
Up to 1920x1080 @ 60Hz
Flexible Formats Selection
For all IP-based video transmission processes, E3 supports the high efficiency video codec HEVC as well as H.264.

With support of HEVC, E3 can maintain video image quality with lower bitrate, saving more than 50% of your bandwidth.

Compatible with All Protocols
For broad applications, E3 supports a complete range of streaming protocols including NDI HX3/NDI HX2/SRT/RTMP/RTMPS/HLS/TS over UDP/RTP*/RTSP/Onvif*. It can be used for live production with NDI HX, remote production with SRT, live streaming with RTMP or HLS, or any transmission with all different protocols.
*Coming soon with free future update.


Powerful Streaming Capabilities
The E3 input can be up to 4Kp30 from its HDMI port and up to 1080p60 from its 3G-SDI port. With its powerful output capabilities, E3 can go live to up to 8 different platforms simultaneously, max bitrate can be up to 120Mbps.



Pro-Level Video Processing*
Other than powerful encoding performance, E3 can process crop and add custom overlays including images, texts or other OSD to the output video for advanced applications, it’s suitable for your webcast.（Currently not supported, the function will be implemented through future firmware update.）

*Coming soon with free future update.

Powerful Audio Performance, Multi-Channel Audio Encoding Supported*
E3 allows for encoding audio source through its 3.5mm Line input and SDI/HDMI embedded audio input. You can convert audio into multiple formats, including AAC, *MPEG-4, MPEG-3 , MPEG-2, Opus or G.711.

E3 supports 4-channel embedded audio encoding of SDI & HDMI inputs. Along with more functions including audio de-embedding, channel selection, alternate channel and audio output mapping, E3 is ideal for high efficient program production.

*: Currently, only AAC and G.711 are supported. More formats will be supported later.

Built-in LCD Screen and Touch Button

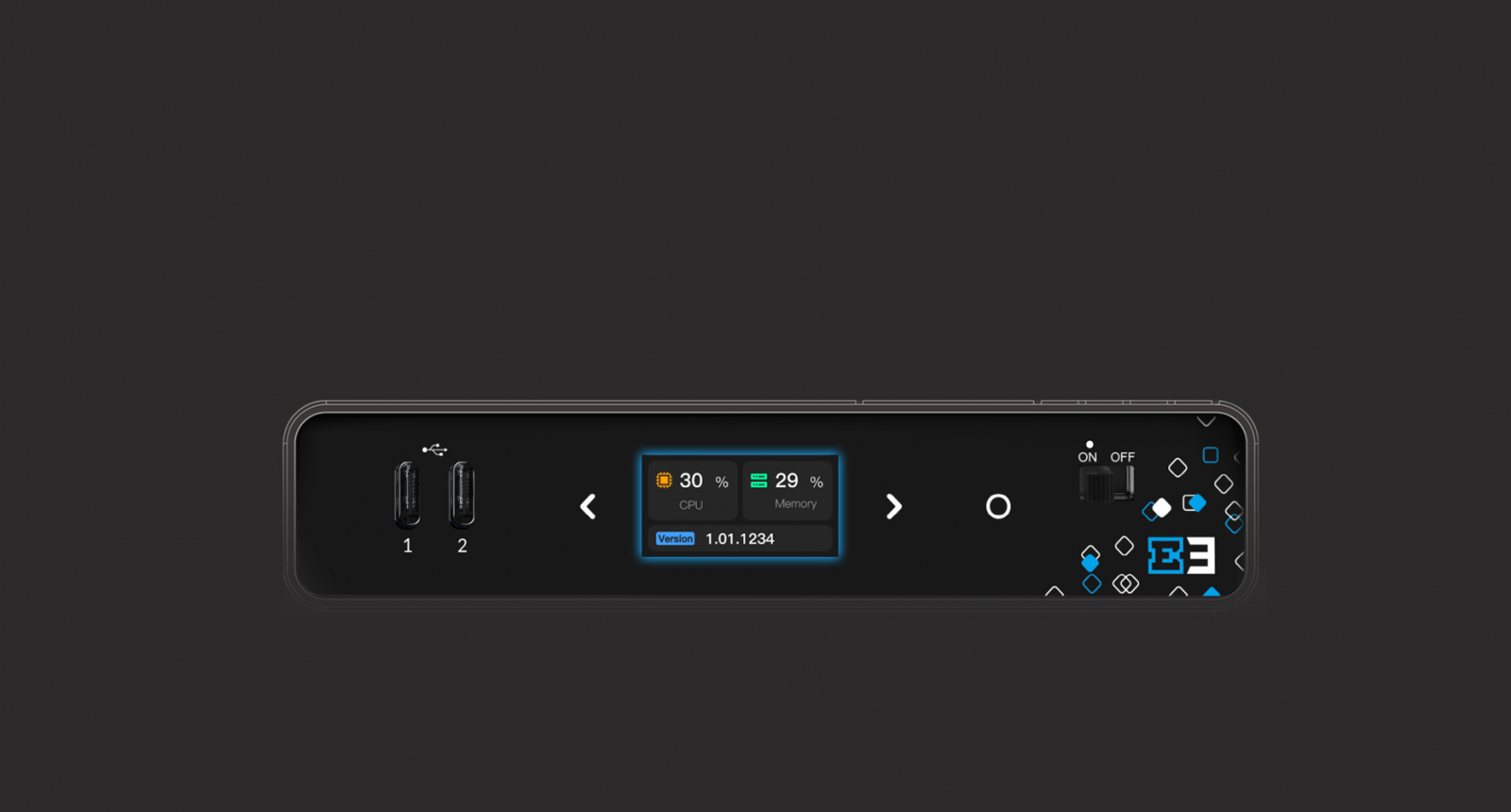

E3 is equipped with a 1.14-inch LCD screen with touch buttons for a better user experience. With the built-in LCD screen, you can easily check the connectivity, IP address, CPU usage, memory usage, resolution and tally status in real-time. The LCD Screen is also a big-sized Tally* to display the preview/program status.



Reliable Recording and Streaming

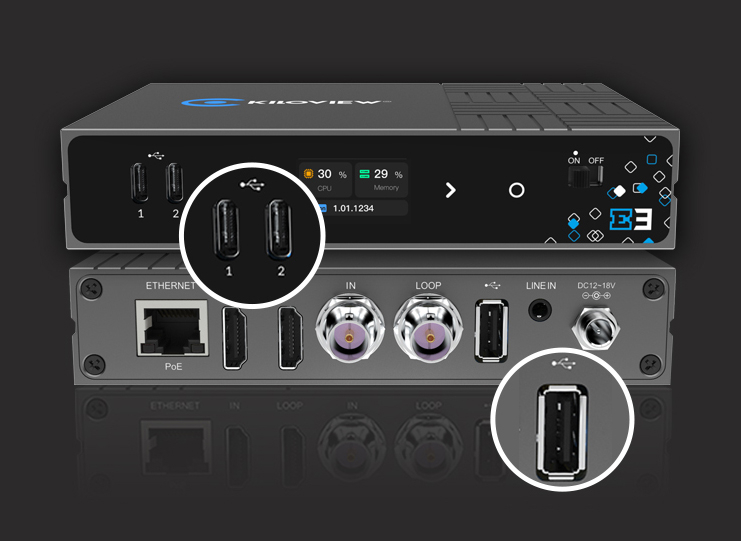

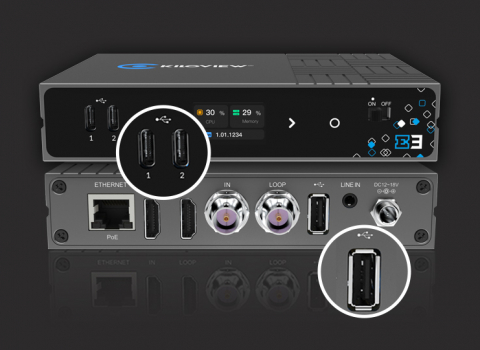

All inputs of E3 can be recorded in .MOV/.MP4 through 3 USB ports or NAS storage. It supports streaming and recording simultaneously for post-production and further application.

More Features

Intercom
Latency<100ms
KiloLink Server*
PTZ Control
PoE
NTP Supported
OSD*
Easy Mounting
