Kiloview D260 H.265 Multi-Interface HD Decoder

Outstanding AV Decoding Performance
Outstanding Video Decoding Performance
D260 supports simultaneous decoding of up to 4 video streams in H.264 (AVC) / H.265 (HEVC) format, each at 1080p60 (backward compatible). All 4 video outputs are available through both HDMI and SDI, ensuring a stable and reliable video decoding experience.

Exceptional Audio Decoding Performance
D260 supports decoding and output of various audio formats, including AAC, MPEG-4, MPEG-2, G.711, Opus, and LPCM. It features multi-channel audio mixing and gain control, allowing flexible audio output via HDMI, SDI, or 3.5mm Line-out, ensuring high-quality audio for video wall displays and audio mixing.

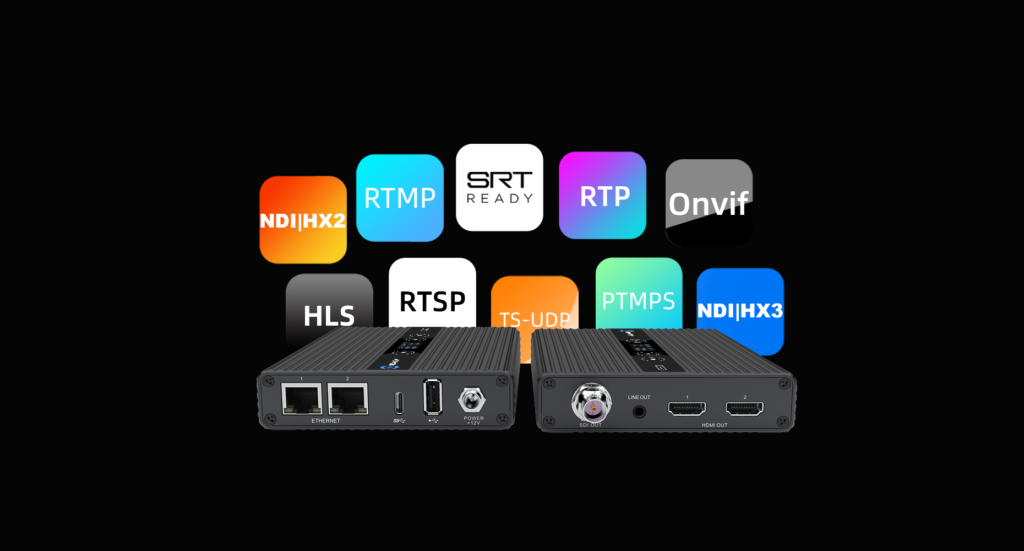

Comprehensive Protocol Support
D260 supports full protocol decoding, including NDI High Bandwidth, NDI HX, NDI HX3, SRT, RTMP, RTMPS, HLS, TS over UDP, RTP, and RTSP. With its comprehensive functionality, it can meet a wide range of streaming requirements.

Flexible Layout and OSD for Easy Output Customization
100% Customizable Layout
Users can fully customize the layout for 1/2/3/4 grids through the backend graphical interface, adjusting parameters such as position, size, and more. You can easily achieve real-time video preview and quick output switching. Additionally, you can save custom layout as a template for quick access and apply it to the current layout.

Personalized Template Creation for Custom Output
The new OSD feature in D260 provides users with an unprecedented personalized output experience. Users can freely create colorful OSD templates for output, incorporating elements such as images, text, colors, and more (e.g., logos, borders, image and text overlays). The designed templates can be directly applied to the corresponding output screens, making them more dynamic and personalized.

Unlimited Preview + 4 Output with Dynamic Switching
 D260 supports “preview + output” mode, allowing unlimited video streams (based on your hardware performance) to be previewed while selecting 4 streams for simultaneous display on the screen. This feature also supports monitoring (PVW/PGM) for dynamic and flexible output management.

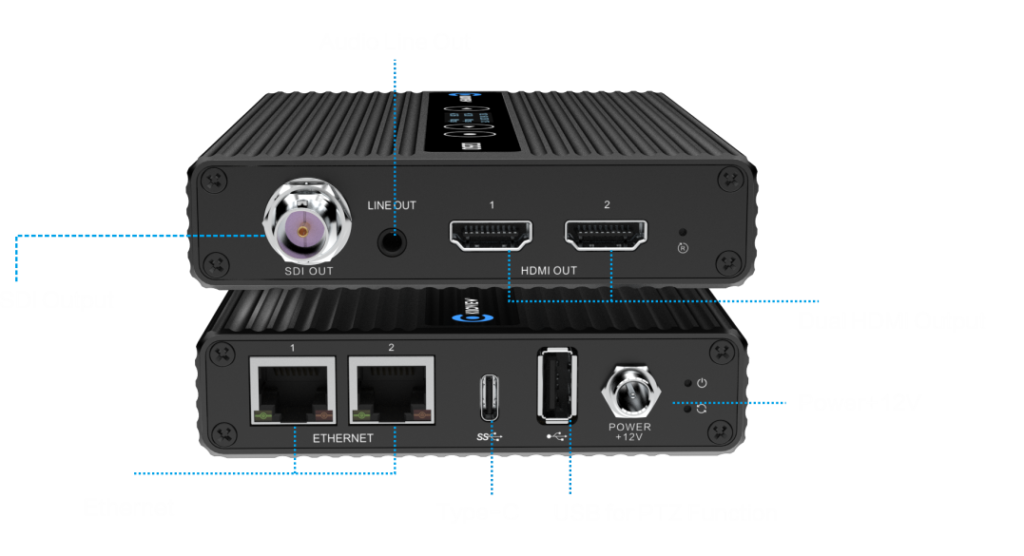

Extended Output Interfaces
D260 features 3G-SDI + 2*HDMI for simultaneous multi-interface output, with a maximum resolution of 1920×1080@60Hz. The multiple video outputs can be independently, combined, or simultaneously mirrored across 2 HDMI and 1 3G-SDI ports. Each interface allows dynamic selection of 1/2/3/4 video streams for display, with adjustable output resolution, scan mode (progressive/interlaced), and frame rate.

HDMI*2
3G-SDI
Brand New UI for Easy Operation
The new UI is intuitive, combining the main screen and sidebar preview for easy viewing of multiple video streams. Drag-and-drop functionality enables seamless real-time previews and output switching. All features are integrated into the web interface for clarity, with support for VU meter monitoring and reverse PTZ control for effortless management during monitoring.

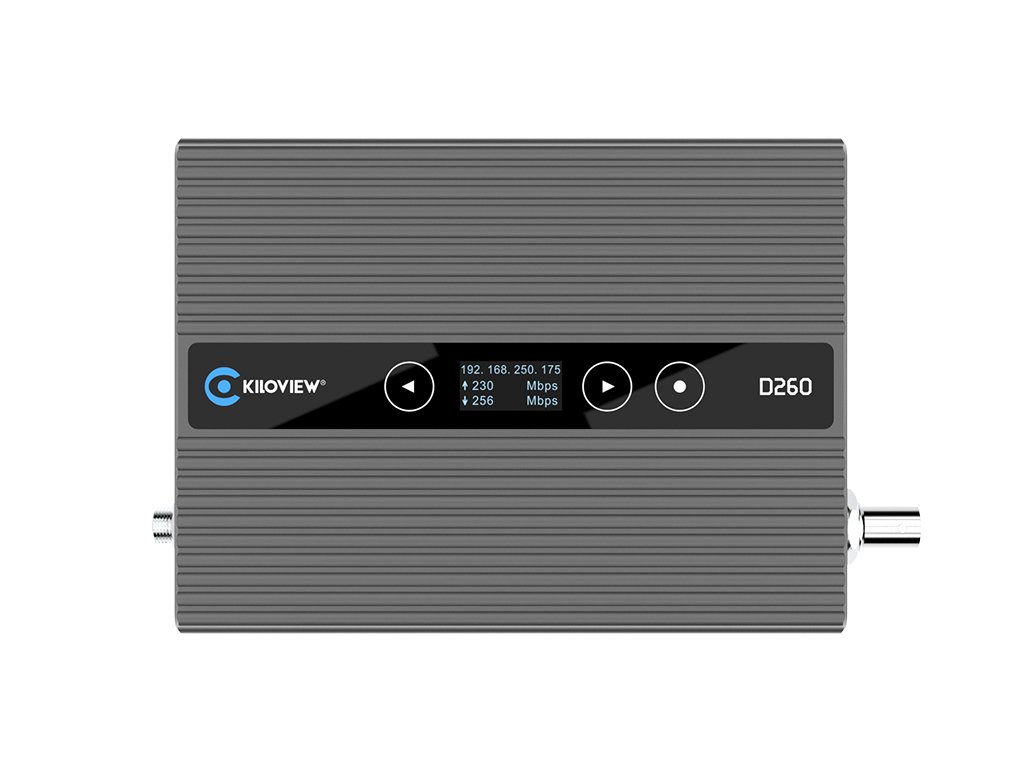

LCD Display and Touch Button
D260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check transmission status in real-time.

Low Latency and High Quality
D260 guarantees outstanding image quality and low transmission latency with a decoding delay of around 150 ms and a packet loss rate of less than 10%.

Dual Gigabit Ethernet Secure and Stable
D260 features dual gigabit Ethernet ports for seamless data transmission between internal and external networks, optimizing network efficiency. With dual-port redundancy, it guarantees uninterrupted network connectivity for reliable service.


More Features
Multi Outputs
Dual Ethernet Ports
RTMP Server
Intercom
OSD
Latency<100ms
Dual USB Ports
Centralized management
