Kiloview N6 (HD HDMI/NDI Bi-Directional Converter)

Kiloview N6 (HD HDMI/NDI Bi-Directional Converter)

Name: Kiloview N6 (HD HDMI/NDI Bi-Directional Converter)
Brand: Kiloview
SKU: N6
Price: 2900 RON
Availability: InStock

2.900,00 RON

HDMI & USB to NDI Encoder/Decoder
Versatile Inputs, Endless NDI Possibilities.

Kiloview N6 is a compact, cost-effective NDI encoder/decoder. Compatible with NDI 6.2, it provides improved stability and performance with the latest NDI ecosystem. With support for both NDI high bandwidth and NDI HX2/3, N5/N6 is capable of processing all NDI sources from any camera, software or device.

Featured with powerful functions such as PoE, LCD display with large tally and external Tally support, PTZ control, 3.5mm audio line in/out, multi-channel audio encoding, on-screen overlays, intercom and centralized management, N6 is the easiest and most cost-effective way to get access to the fabulous NDI world for low latency and high image quality.

La comanda

Durata de livrare: 5-7 zile lucratoare

Limita stoc

Adauga in cos

Cod Produs: N6 Ai nevoie de ajutor? 0722428874

Adauga la Favorite

Descriere
Video (1)

Integrated Encoding & Decoding with NDI HB/HX Flexibility

The N6 supports both NDI High Bandwidth and NDI HX2/HX3 formats in a single, compact unit. It features HDMI input with loop-through and decoding output, supporting resolutions up to 1080p60.
● In encoding mode: the N6 can simultaneously output both NDI High Bandwidth and NDI HX2/HX3 streams from a HDMI source.
● In decoding mode: it decodes any NDI High Bandwidth, NDI HX2, or HX3 stream and outputs directly to baseband HDMI for on-screen monitoring.

From USB to NDI—Simplify Your Setup, Elevate Your Stream

The N6 allows direct input from USB video devices such as webcams, UVC cameras, and built-in laptop cameras—instantly converting them into NDI streams at up to 1080p60. With no need for external capture cards or complex setup, it offers a fast and efficient way to integrate lightweight video sources into professional NDI workflows.

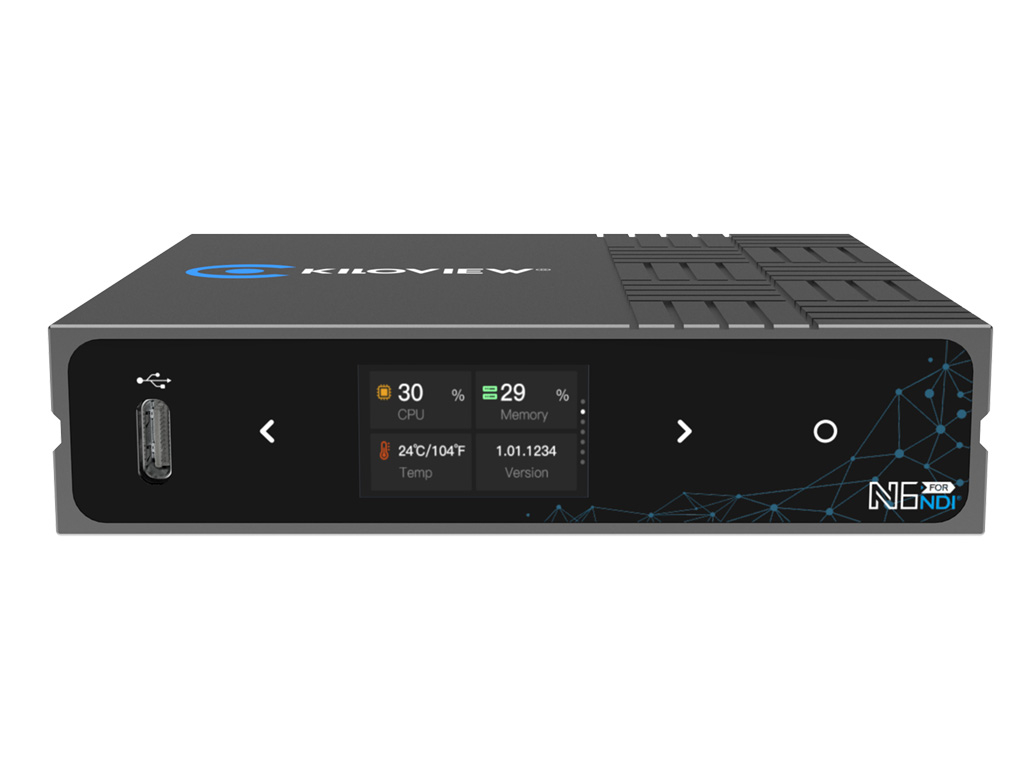

Large-sized Color LCD Screen with Tally

Clear status display with touch buttons: Real-time display of network connection, operating mode, and device information keeps you fully informed, while the touch buttons allow quick navigation and precise adjustment of key settings.
Tally Indicators: Front panel LCD and rear Tally LEDs provide clear red/green indicators for PGM (program) and PVW (preview) status. (It also supports external Tally through USB expansion.)

Central Management with Kilolink Server Pro

The N6 seamlessly connects to the KiloLink Server Pro once registered, enabling centralized remote management with real-time monitoring of device status, including connectivity, video preview, bandwidth, and IP address—all in one interface for streamlined oversight.

Specifications

Model	N6
Video Resolution	• Input support: 19201080p 60/59.94/50/30/29.97/25/24/23.98fps 19201080i 60/59.94/50fps 1280720p 60/59.94/50/30/29.97/25/24/23.98fps • Output support: 19201080p 60/59.94/50/30/29.97/25/24/23.98fps 19201080i 60/59.94/50fps 1280720p 60/59.94/50/30/29.97/25/24/23.98fps

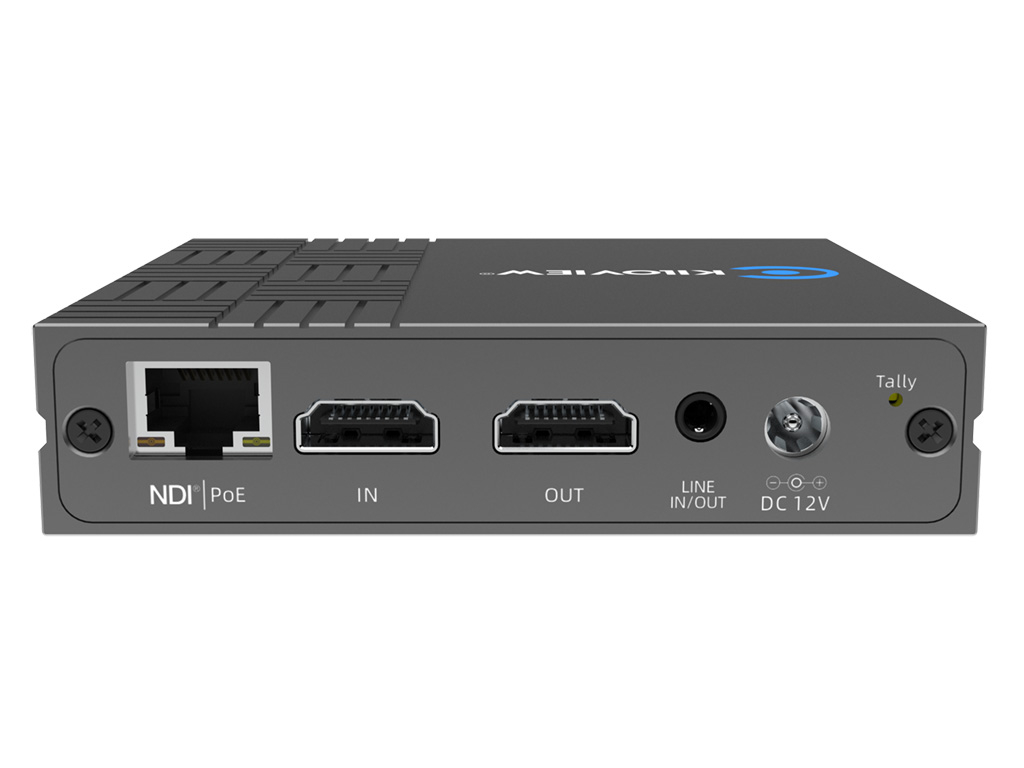

Video Port	1 × 1080p60 HDMI 2.0 input 1 × 1080p60 HDMI 2.0 output for decoding/loop-out for encoding
Video Encoding and Decoding	SpeedHQ(NDI), H.264(AVC), H.265(HEVC)
Streaming Protocols	NDI HB/NDI HX2/HX3
Interlaced Video Support	Interlaced video input, with encoding output limited to progressive format only
Color Space	• Encoding NDI HB: YUV 4:2:2 NDI HX: YVU 4:2:0 • Decoding NDI HB: 4:2:0, 4:2:2 NDI HX: 4:2:0
Color Depth	8-bit
Audio Port	1 × 3.5mm Line in/Line out
Audio Encoding and Decoding	NDI Audio, AAC-LC, more audio formats and channels available through custom development
Audio Sampling	Fixed at 48 kHz
Audio Channels	Encoding: 2 channels Decoding: 2 channels

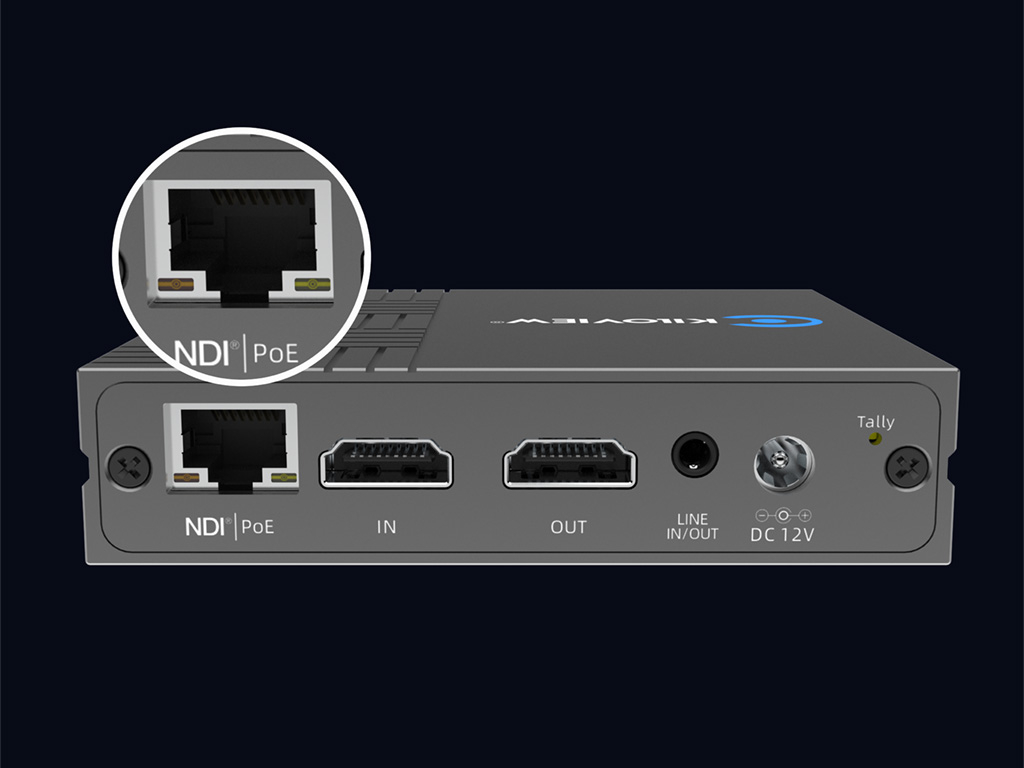

Network Port	1 × 1000Mbps Ethernet port (support PoE)
Physical Controls	1.14'' LCD with touch buttons
Management	Web-based UI or centralized management via KiloLink Server Pro
Tally	• An LCD tally indicator on the front panel • A Tally LED on the rear • External Tally supported
Voice Intercom	USB headset expansion or group calls via Kiloview Intercom System (KIS)
Video Input Loss Alerts	• Default “NO INPUT SIGNAL” image on HDMI disconnect • Custom PNG (1920 × 1080 or 1280 × 720) display supported
PTZ Control	USB-to-serial (RS-232/RS-485/RS-422) and network protocols (Sony Visca, Pelco-D/P) for external PTZ control
USB Port	1 × USB 3.0 Type-C (USB web cam supported)
Mounting	Cold shoe adapter
Power Supply	DC 12V （5.5/2.5）or PoE
Power Consumption	6W (Max)
Weight	500g
Dimensions	100×95×23mm
Working Temperature	-20℃~45℃/-4℉~113℉
