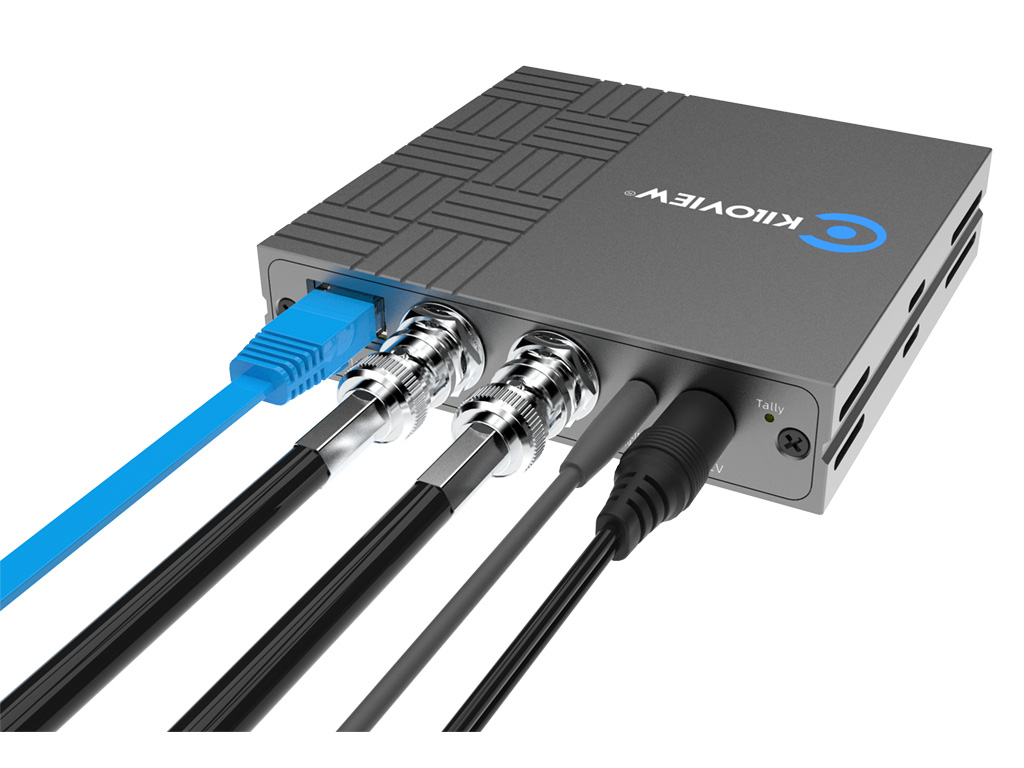

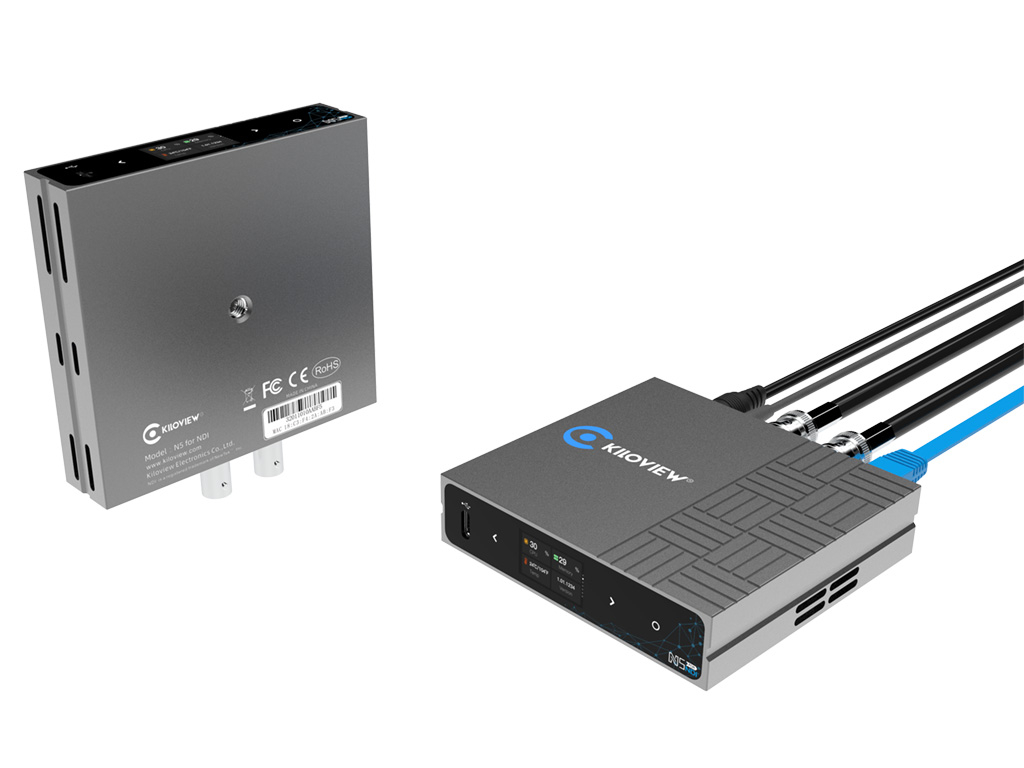

Kiloview N5 (3G-SDI/NDI Bi-Directional Converter)
N5
3G-SDI & USB to NDI Encoder/Decoder
Versatile Inputs, Endless NDI Possibilities.
Kiloview N5 is a compact, cost-effective NDI converter that supports both NDI High Bandwidth and NDI HX2/HX3 formats. With 3G-SDI input and loop-through, it encodes SDI signals into high-quality NDI streams and can also decode them back for SDI output—it’s your most affordable way into the world of NDI.
Additionally, the N5 can be connected to cameras via a USB port to convert USB video outputs into NDI streams. This capability is perfect for a variety of applications such as video conferencing, live streaming, and training sessions.
Durata de livrare: 5-7 zile lucratoare
- Descriere
Integrated Encoding & Decoding with SDI-to-IP Flexibility
The N5 supports both NDI High Bandwidth and NDI HX2/ HX3 formats in a single, compact unit. It features 3G-SDI input with loop-through and decoding output, supporting resolutions up to 1080p60.
● In encoding mode: the N5 can simultaneously output both NDI High Bandwidth and NDI HX2/HX3 streams from a 3G-SDI source.
● In decoding mode: it decodes any NDI High Bandwidth, NDI HX2, or HX3 stream and outputs directly to baseband 3G-SDI for on-screen monitoring.
From USB to NDI—Simplify Your Setup, Elevate Your Stream
The N5 allows direct input from USB video devices such as webcams, UVC cameras, and built-in laptop cameras—instantly converting them into NDI streams at up to 1080p60. With no need for external capture cards or complex setup, it offers a fast and efficient way to integrate lightweight video sources into professional NDI workflows.

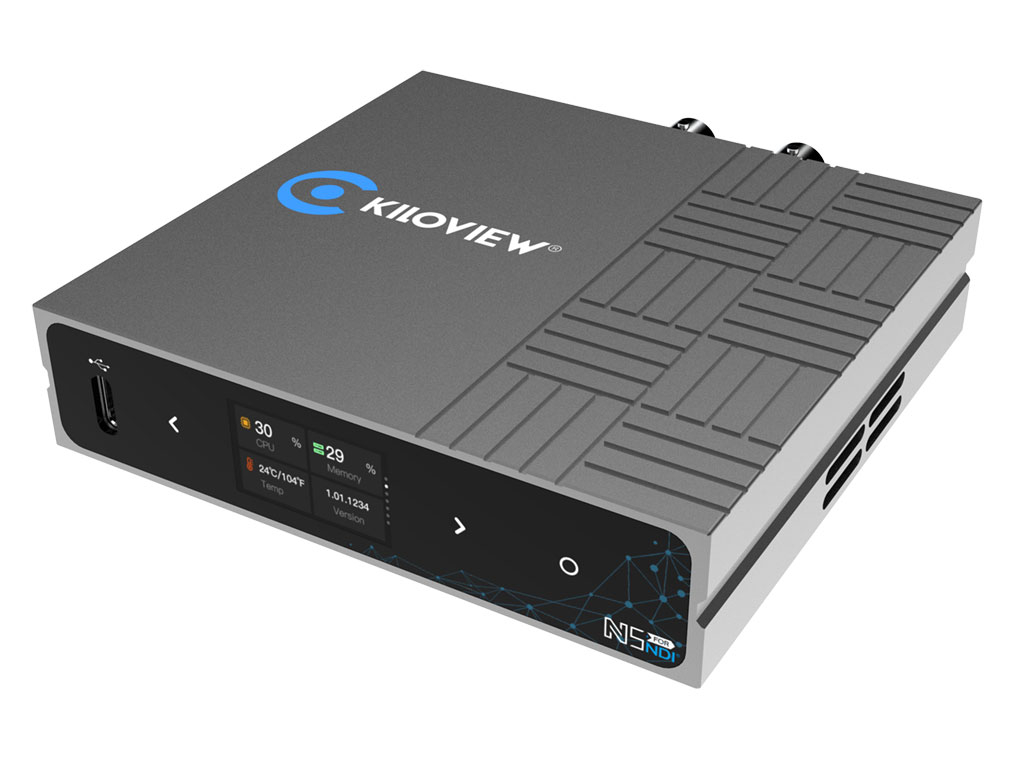

Large-sized Color LCD Screen with Tally
• Clear status display with touch buttons: Real-time display of network connection, operating mode, and device information keeps you fully informed, while the touch buttons allow quick navigation and precise adjustment of key settings.
• Tally Indicators: Front panel LCD and rear Tally LEDs provide clear red/green indicators for PGM (program) and PVW (preview) status. (It also supports external Tally through USB expansion.)
Centralized Management with Kilolink Server Pro
The N5 seamlessly connects to the KiloLink Server Pro once registered, enabling centralized remote management with real-time monitoring of device status, including connectivity, video preview, bandwidth, and IP address—all in one interface for streamlined oversight.
Specifications
|
Model |
N5 |
|---|---|
|
Video Resolution |
• Input support: |
|
Video Port |
1 × 3G-SDI for input |
|
Video Encoding and Decoding |
SpeedHQ(NDI), H.264(AVC), H.265(HEVC) |
|
Streaming Protocols |
NDI HB/NDI HX2/NDI HX3 |
|
Interlaced Video Support |
Interlaced video input, with encoding output limited to progressive format only |
|
Color Space |
• Encoding |
|
Color Depth |
8-bit |
|
Audio Port |
1 × 3.5mm Line in/Line out |
|
Audio Encoding and Decoding |
NDI Audio, AAC-LC, and more audio formats and channels available through custom development |
|
Audio Sampling |
Fixed at 48 kHz |
|
Audio Channels |
Encoding: 2 channels |
|
Network Port |
1 × 1000Mbps Ethernet port (support PoE) |
|
Physical Controls |
1.14'' LCD with touch buttons |
|
Management |
Web-based UI or centralized management via KiloLink Server Pro |
|
Tally |
• An LCD tally indicator on the front panel |
|
Voice Intercom |
USB headset expansion or group calls via Kiloview Intercom System (KIS) |
|
Video Input Loss Alerts |
• Default “NO INPUT SIGNAL” image on HDMI disconnect |
|
PTZ Control |
USB-to-serial (RS-232/RS-485/RS-422) and network protocols (Sony Visca, Pelco-D/P) for external PTZ control |
|
USB Port |
1 × USB 3.0 Type-C (USB web cam supported) |
|
Mounting |
Cold shoe adapter |
|
Power Supply |
DC 12V （5.5/2.5）or PoE |
|
Power Consumption |
6W (Max) |
|
Weight |
500g |
|
Dimensions |
100 × 111 × 23mm |
|
Working Temperature |
-20℃~45℃/-4℉~113℉ |
