Streaming DAC cu amplificator de casti Gato Audio SDA-1

Streaming DAC cu amplificator de casti Gato Audio SDA-1

Name: Streaming DAC cu amplificator de casti Gato Audio SDA-1
Brand: Gato Audio
SKU: SDA-1 NPM
Price: 22475.00 RON
Availability: InStock

22.475,00 RON

The all new SDA-1 is the culmination of years of feedback from users of Gato Audio equipment all over the world. We have combined the very best and most sophisticated D/A converter technology with our unique analogue circuits and a balanced headphone amplifier, creating perhaps the most versatile Gato product for years. Enjoy the latest formats from your favorite hardware source, external streamer or from the built-in streaming board, directly into your hi-fi setup... or a pair of quality headphones.

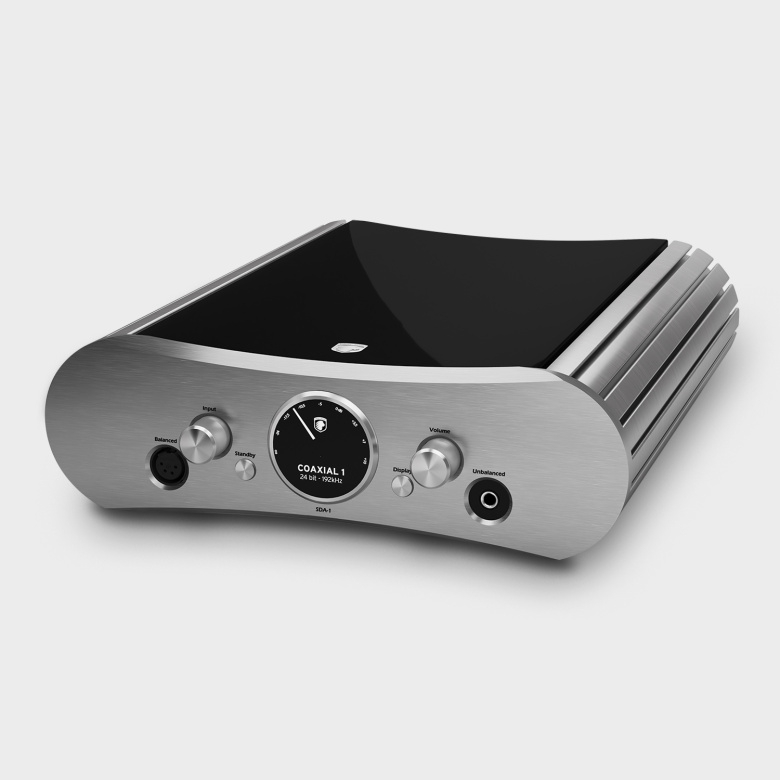

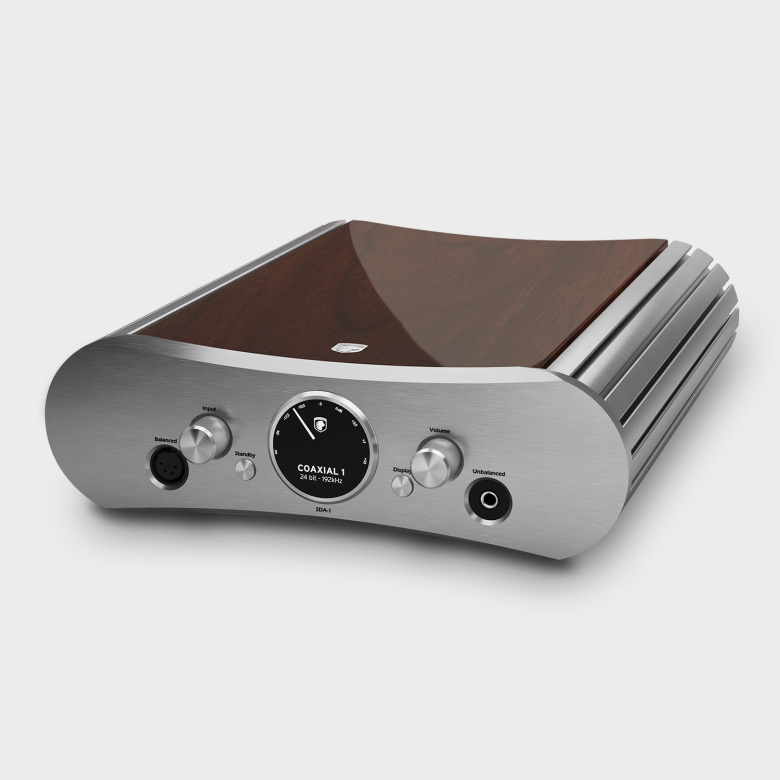

We offer bespoke top covers for your SDA-1 NPM. Have it matched to your decor or super car. We can paint them in virtually any color.

La comanda

Durata de livrare: 30 de zile

Limita stoc

Adauga in cos

Cod Produs: SDA-1 NPM Ai nevoie de ajutor? 0722428874

Adauga la Favorite

Descriere

Output Level 0 dB (Digital Sources)	Unbalanced: 2.2 V, Balanced: 4.4 V
Maximum Output Level (Analogue Source)	Unbalanced: 7 V, Balanced: 11 V
Frequency response	20 Hz - 20 kHz - 0.3 dB
THD + N	0.002 %
Signal To Noise Ratio (A Weighted)	117 dB
Analogue Input	8 V Max

Headphone
Output Impedance	1 Ω
Unbalanced Output	1 W @ 33 Ω, 600 mW @ 50 Ω, 420 mW @ 100 Ω, 200 mW @ 300 Ω, 120 mW @ 600 Ω
Balanced Output	3 W @ 33 Ω, 2,8 W @ 50 Ω, 1,9 W @ 100 Ω, 850 mW @ 300 Ω, 460 mW @ 600 Ω

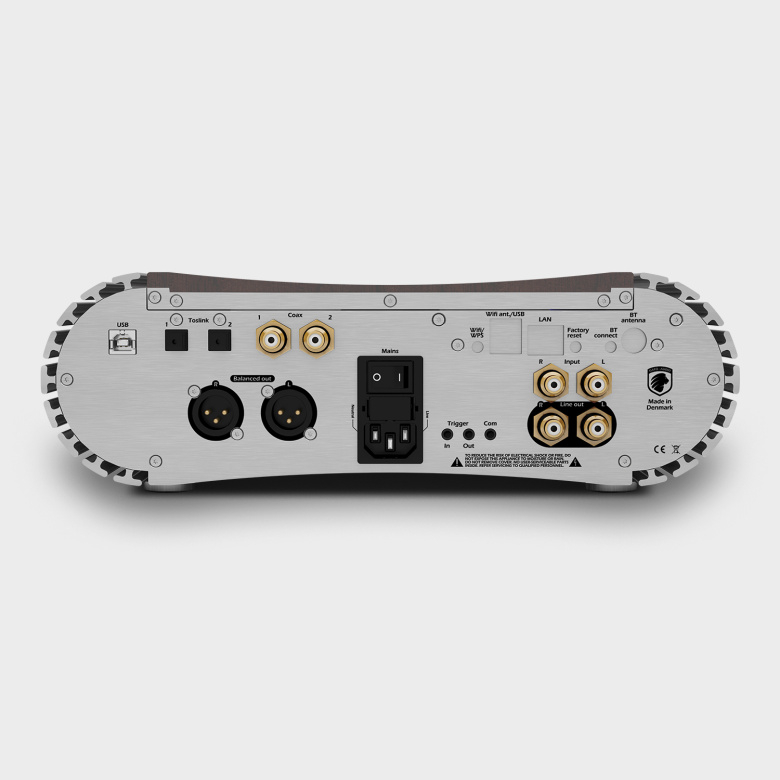

Connectors
Unbalanced analogue inputs	1 pair of gold-plated RCA stereo
USB Input	1 pc USB type B
Toslink Inputs	2 pcs Optical
SPDIF Inputs	2 pcs of gold-plated RCA
Unbalanced Analogue Output	1 pair of gold-plated RCA
Balanced Analogue Output	1 pair gold-plated XLR Neutrik
Unbalanced Headphone Output	1 pc gold-plated 6,3mm jack (with volume control)
Balanced Headphone Output	1 pc gold-plated XLR Neutrik (with volume control)
Ethernet	1 pc 10/100/1000 Gigabit Ethernet
Trigger, 12 V - in	1 pc mini jack
Trigger, 12 V - out	1 pc mini jack

Size and Power
Power Requirements	115 VAC/230 VAC, 50 Hz/60 Hz, <60W max
Fuse	20 mm sand-filled, 1,6 AT
Power consumption stdb/idle/max	< 1W/30W/<60W
Dimensions (WxHxD)	325 x 105 x 396 mm / 12.8 x 4.1 x 15.5"
Weight	10 kg / 22 lb
