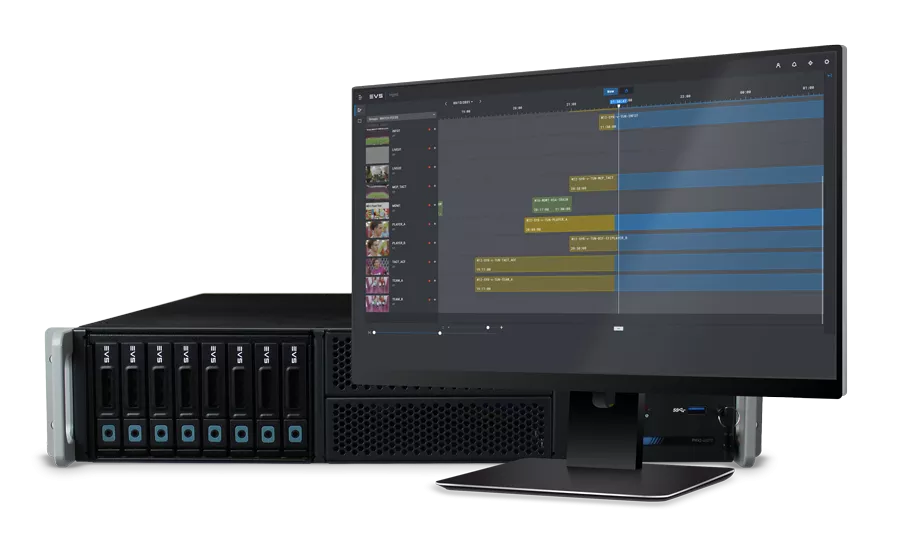

Server video EVS XS-NEO Studio Ingest & Playout

Core benefits

• EVS-built reliability for your peace of mind

  EVS has taken the core benefits of its iconic XT server technology and implemented an innovative software-defined approach for high flexibility combined with EVS-built reliability.

• Accommodates any requirement

  As well as supporting multiple formats and codecs and allowing on the fly changes per channel and flow, XS-NEO® is also designed to work within both SDI and IP infrastructures.

• Highly scalable operations

  As a stack-and scale model and fully integrated into the VIA Media Asset Platform, XS-NEO® enables a new level of channel support and scalability to match your business evolutions.

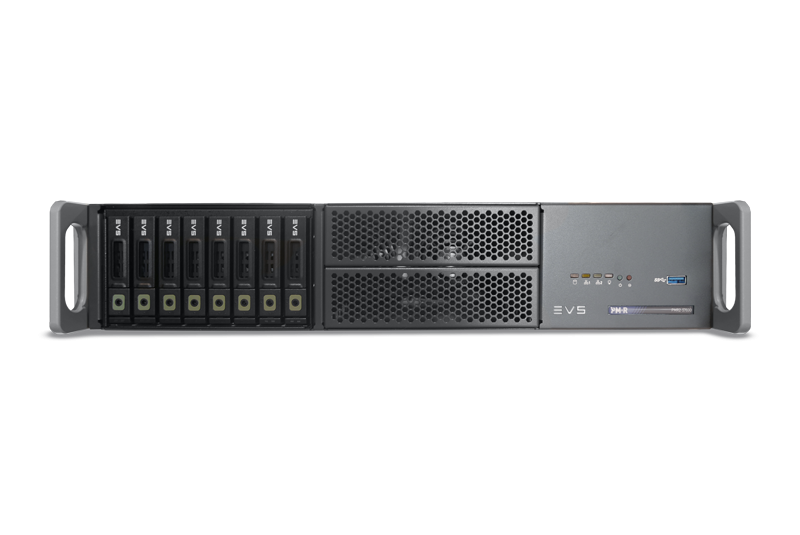

PMX2 processing module

• Video I/O board with 8x HD-SDI/3G-SDI/12G-SDI OR 2x25Gbps connectivity

• Optimized Linux operating system

• 32 core CPU

• 5x 1.6TB SSD drives RAID array OR 5x 3.2TB SSD drives RAID array

• GPU board

• 64GB RAM

• 2x onboard 1-Gbps Ethernet ports

• 2x 10Gbps Ethernet ports for file transfer

• 4x USB 3.0 ports at the back, 1x at the front



  VIA Ingest app

• Control and schedule live feeds

• Control of XS-NEO

• HTML 5 web interface

• Frame accurate multi-camera ingest

• Confidence and progress monitoring
