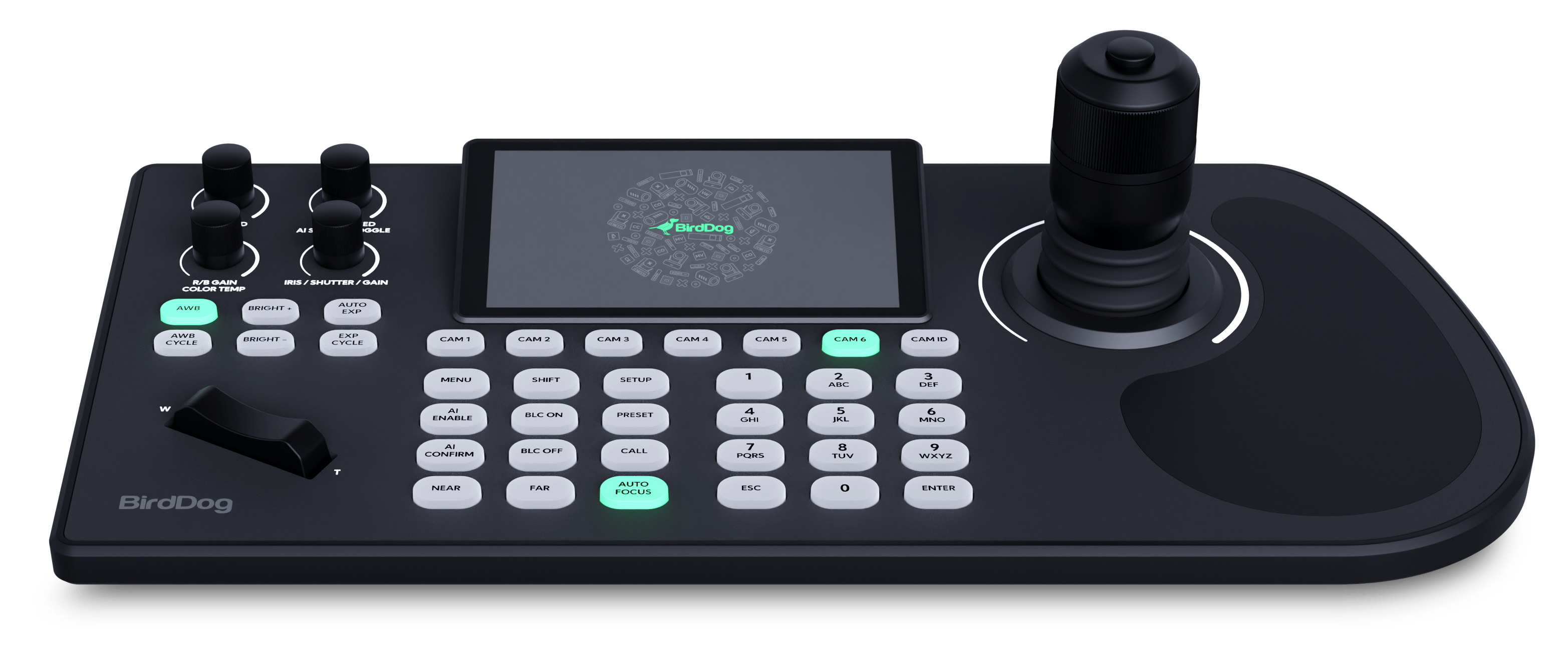

Controler pentru camere robotice PTZ BirdDog KBD
Crafted from Feedback. Built for Brilliance.
BirdDog KBD Controller offers PTZ camera operators a rugged, ergonomic design, a large multi-camera display, and direct access to essential functions. With a built-in tally display and physical feedback for camera switching, it’s intuitive and eco-friendly, made with Ocean-Bound Plastics and recyclable Aircraft-grade Aluminum. NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity ensure versatility no matter what language you speak.
The KBD’s screen offers live previews for NDI-HX2/HX3 cameras and key text-based details for others, ensuring seamless compatibility and clarity across your workflow.
Feature KBD
Camera Control
PTZ Control VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
Fine PTZ Control VISCA-IP, NDI
Focus Control Auto Focus, Manual Focus buttons
Auto Exposure Direct Button
Manual Exposure Toggle Dial adjustment Brightness/Shutter/Gain/Iris
Auto White Balance Direct Button
Manual White Balance Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
Auto Focus Direct Button
Manual Focus Direct Button (Near/Far)
BLC (Backlight Compensation) Direct Button
Zoom Ring on Joystick Yes (enable/Disable)
Programmable Trigger on Joystick Adjustable, One-Push Focus, AI Tracking, One-Push AWB
AI Camera Mode Control Camera Dependent, supported
Copy/Paste Camera Settings Supported on selected BirdDog Cameras (VISCA-IP, NDI)
Camera Access
Max. Cameras support 255
Direct Camera access keys 6
Direct Preset access keys 10
Max Preset support 255 per camera
OSD Camera Menu Menu Button / Interaction with Joystick
Display
Display Diagonal Dimension 5"
Display Resolution 1280x720
Multiview IP Video Supported, NDI HX (Proxy), RTSP (max. 30 fps)
Full Screen IP Video Supported, NDI HX (Proxy), RTSP (max. 30 fps)
IP Video CODEC support h.264, h.265
Tally Borders Selectable, Multiview and Full Screen mode
On Screen Menu Fully configurable
Light/Dark Mode YES
NDI Support
NDI Control NDI HX2, NDI HX3, High Bandwidth NDI
NDI Multiview NDI HX2, NDI HX3
NDI Router Yes, follows current active camera
NDI Discovery Supported
NDI Access Manager Supported
NDI PTZ Sensitivity Standard (NDI); Superfine (BirdDog Specific)
Setup/Configuration
WebUI BirdUI for setup and firmware updates
Light/Dark Mode YES
API-based Camera Selection YES
Serial Connections
RS-232 D-Sub connector (9-pin)
RS-422 Phoenix connector
Mechanical
Joystick Type 4D (Integrated Trigger button)
Keys 37 Keys; Backlit, Individual Contact, Silicon Pad
Toggle Dials 4 knobs; Press Button, Graduated, 360° adjustment
Zoom Rocket Spring loaded, adjustable
Dimensions 377mm x 177mmx 118mm ; 14.84in x 6.96 x 4.64in (LxWxH including Joystick)
Construction Material Aluminium; OBP Ocean-Bound Plastic
Integrated Carry Handle YES
Operating Temperature -10°C - +55°C; 14°F - 130°F
Storage Temperature -10°C - +55°C; 14°F - 130°F
Operating Humidity 20% - 80% (Non-condensing)
Storage Humidity 0% - 90% (Non-condensing)
Power Supply PoE (802.3af), DC12V
Power Consumption ≤5W
Packaging Dimensions 390x215x165mm; 15.35x8.46x6.49 in
BirdDog KBD Controller offers PTZ camera operators a rugged, ergonomic design, a large multi-camera display, and direct access to essential functions. With a built-in tally display and physical feedback for camera switching, it’s intuitive and eco-friendly, made with Ocean-Bound Plastics and recyclable Aircraft-grade Aluminum. NDI, VISCA, ONVIF, RS-232, and RS-422 connectivity ensure versatility no matter what language you speak.
The KBD’s screen offers live previews for NDI-HX2/HX3 cameras and key text-based details for others, ensuring seamless compatibility and clarity across your workflow.
Feature KBD
Camera Control
PTZ Control VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
Fine PTZ Control VISCA-IP, NDI
Focus Control Auto Focus, Manual Focus buttons
Auto Exposure Direct Button
Manual Exposure Toggle Dial adjustment Brightness/Shutter/Gain/Iris
Auto White Balance Direct Button
Manual White Balance Toggle Dial adjustment R-Gain, B-Gain, Color Temperature
Auto Focus Direct Button
Manual Focus Direct Button (Near/Far)
BLC (Backlight Compensation) Direct Button
Zoom Ring on Joystick Yes (enable/Disable)
Programmable Trigger on Joystick Adjustable, One-Push Focus, AI Tracking, One-Push AWB
AI Camera Mode Control Camera Dependent, supported
Copy/Paste Camera Settings Supported on selected BirdDog Cameras (VISCA-IP, NDI)
Camera Access
Max. Cameras support 255
Direct Camera access keys 6
Direct Preset access keys 10
Max Preset support 255 per camera
OSD Camera Menu Menu Button / Interaction with Joystick
Display
Display Diagonal Dimension 5"
Display Resolution 1280x720
Multiview IP Video Supported, NDI HX (Proxy), RTSP (max. 30 fps)
Full Screen IP Video Supported, NDI HX (Proxy), RTSP (max. 30 fps)
IP Video CODEC support h.264, h.265
Tally Borders Selectable, Multiview and Full Screen mode
On Screen Menu Fully configurable
Light/Dark Mode YES
NDI Support
NDI Control NDI HX2, NDI HX3, High Bandwidth NDI
NDI Multiview NDI HX2, NDI HX3
NDI Router Yes, follows current active camera
NDI Discovery Supported
NDI Access Manager Supported
NDI PTZ Sensitivity Standard (NDI); Superfine (BirdDog Specific)
Setup/Configuration
WebUI BirdUI for setup and firmware updates
Light/Dark Mode YES
API-based Camera Selection YES
Serial Connections
RS-232 D-Sub connector (9-pin)
RS-422 Phoenix connector
Mechanical
Joystick Type 4D (Integrated Trigger button)
Keys 37 Keys; Backlit, Individual Contact, Silicon Pad
Toggle Dials 4 knobs; Press Button, Graduated, 360° adjustment
Zoom Rocket Spring loaded, adjustable
Dimensions 377mm x 177mmx 118mm ; 14.84in x 6.96 x 4.64in (LxWxH including Joystick)
Construction Material Aluminium; OBP Ocean-Bound Plastic
Integrated Carry Handle YES
Operating Temperature -10°C - +55°C; 14°F - 130°F
Storage Temperature -10°C - +55°C; 14°F - 130°F
Operating Humidity 20% - 80% (Non-condensing)
Storage Humidity 0% - 90% (Non-condensing)
Power Supply PoE (802.3af), DC12V
Power Consumption ≤5W
Packaging Dimensions 390x215x165mm; 15.35x8.46x6.49 in
Durata de livrare: 7-15 zile
Cod Produs:
BirdDog KBD
Ai nevoie de ajutor?
0722428874
- Descriere
- Video (1)
Built for Seamless Control and Comfort.
KBD is crafted for those who rely on precision and ease in their workflow. With a rugged, ergonomic design, it’s built for comfort, featuring a hand-rest area and tactile controls for all-day use.

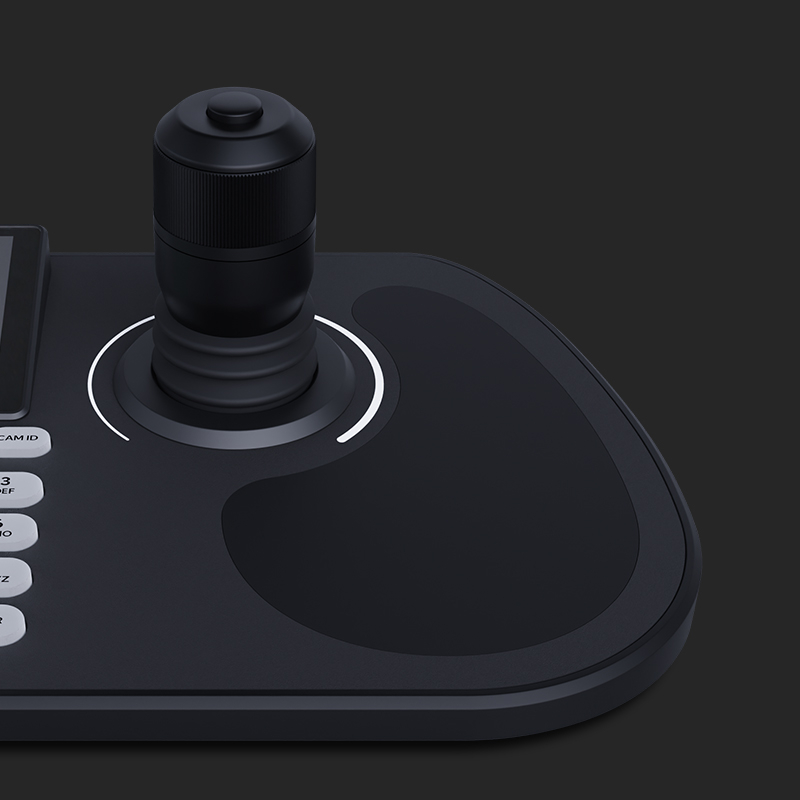

Super-fine Control Mode.
When it’s time to fine-tune, you can easily shift the camera joystick into ‘fine-tune’ mode, increasing the sensitivity of the joystick by 10x, making reframing shots on air more artistic flair than nail-biting scare.

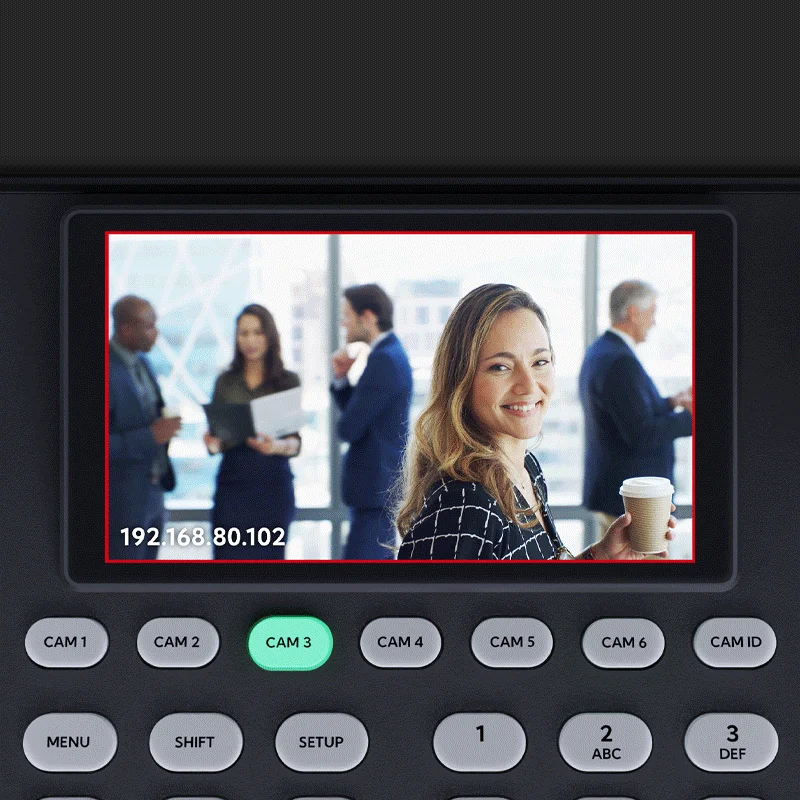

Expanded Screen. Instant Camera Control.
The big screen allows you to monitor up to four cameras at once or focus on one full screen. Pairing and switching between cameras is just a single press away, with a tactile button that gives instant feedback under your finger, making transitions smooth and intuitive.
The KBD’s screen offers live previews for NDI-HX2/HX3 cameras and key text-based details for others, ensuring seamless compatibility and clarity across your workflow.
Built-in Tally Borders.
Pairing and switching between cameras is just a single press away, with tactile buttons providing instant feedback under your finger for smooth, intuitive transitions. When integrated with mixers like TriCaster or vMix, KBD’s built-in tally border shows the live camera directly on the keyboard, so you can stay focused without looking at other screens.
Camera Setting Sync.
An industry-first feature, you can tune one camera to look exactly how you like, and then simply copy those settings directly to another camera of the same model (BirdDog X series function). Making it easy to dial your cameras in and take your production quality to the next level.

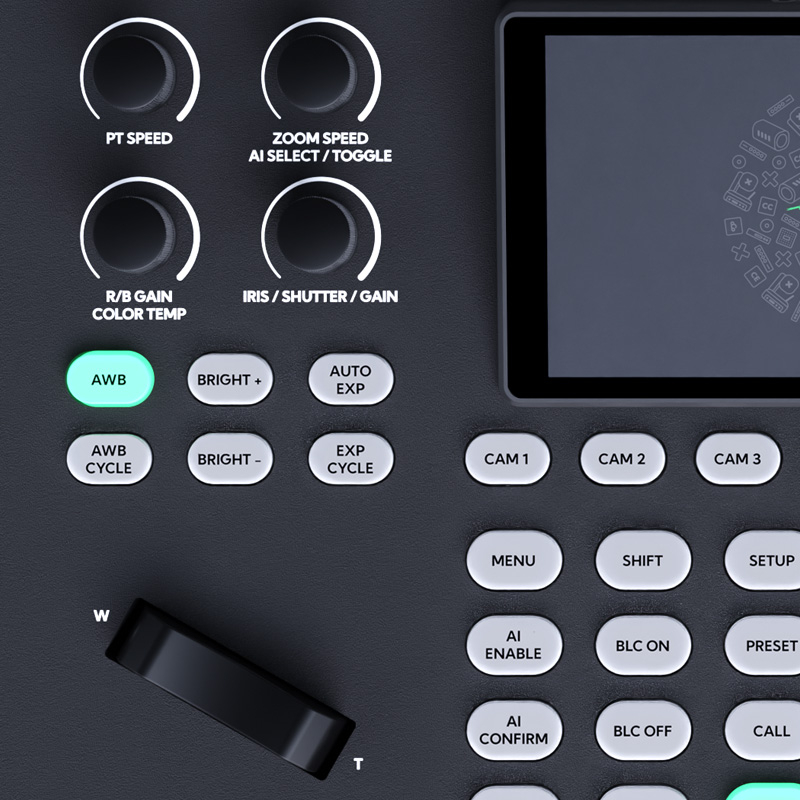

Direct Access to Key Functions.
No more endless menu diving! KBD brings you straight to the essentials. With its streamlined layout, operators can access camera pairing, switching, and configuration in seconds. It’s all there, clear and accessible, thanks to user feedback that’s shaped a truly friendly experience.
Ultimate Connectivity in an Eco-Friendly Design.

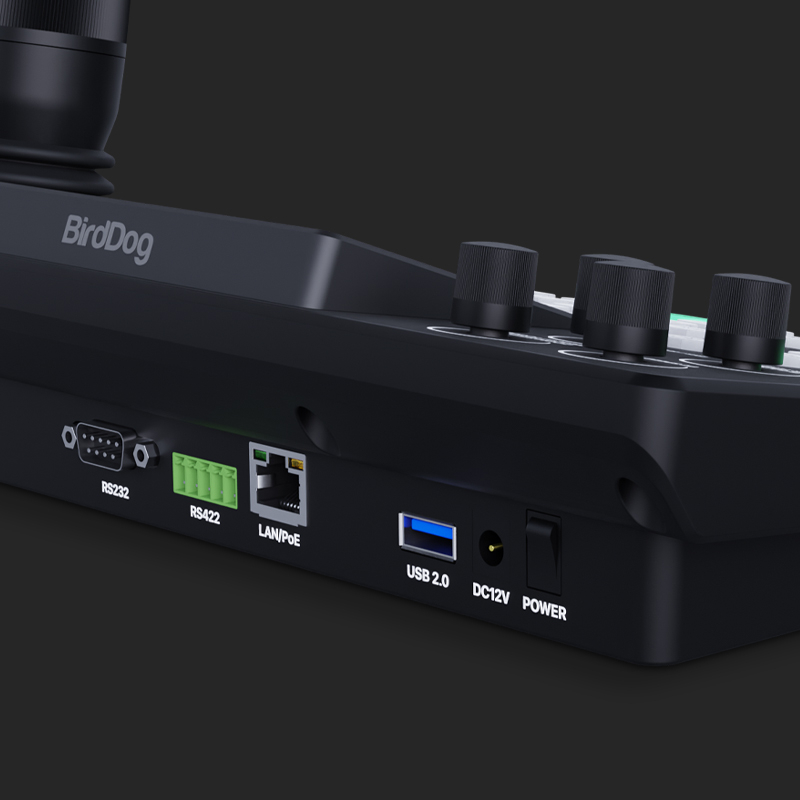

BirdDog KBD connects seamlessly through NDI, VISCA, ONVIF, RS-232, and RS-422, making it versatile for any setup. And with a commitment to sustainability, it’s made using ocean-bound plastics, reducing environmental impact.
Affordable Innovation.
With enhanced features and a lower price than its predecessor, KBD is refined through user insight, offering unmatched comfort, control, and eco-consciousness for the modern PTZ camera operator.
Informatii conformitate produs
KBD is crafted for those who rely on precision and ease in their workflow. With a rugged, ergonomic design, it’s built for comfort, featuring a hand-rest area and tactile controls for all-day use.
Super-fine Control Mode.
When it’s time to fine-tune, you can easily shift the camera joystick into ‘fine-tune’ mode, increasing the sensitivity of the joystick by 10x, making reframing shots on air more artistic flair than nail-biting scare.
Expanded Screen. Instant Camera Control.
The big screen allows you to monitor up to four cameras at once or focus on one full screen. Pairing and switching between cameras is just a single press away, with a tactile button that gives instant feedback under your finger, making transitions smooth and intuitive.
The KBD’s screen offers live previews for NDI-HX2/HX3 cameras and key text-based details for others, ensuring seamless compatibility and clarity across your workflow.
Built-in Tally Borders.
Pairing and switching between cameras is just a single press away, with tactile buttons providing instant feedback under your finger for smooth, intuitive transitions. When integrated with mixers like TriCaster or vMix, KBD’s built-in tally border shows the live camera directly on the keyboard, so you can stay focused without looking at other screens.
Camera Setting Sync.
An industry-first feature, you can tune one camera to look exactly how you like, and then simply copy those settings directly to another camera of the same model (BirdDog X series function). Making it easy to dial your cameras in and take your production quality to the next level.
Direct Access to Key Functions.
No more endless menu diving! KBD brings you straight to the essentials. With its streamlined layout, operators can access camera pairing, switching, and configuration in seconds. It’s all there, clear and accessible, thanks to user feedback that’s shaped a truly friendly experience.
Ultimate Connectivity in an Eco-Friendly Design.
BirdDog KBD connects seamlessly through NDI, VISCA, ONVIF, RS-232, and RS-422, making it versatile for any setup. And with a commitment to sustainability, it’s made using ocean-bound plastics, reducing environmental impact.
Affordable Innovation.
With enhanced features and a lower price than its predecessor, KBD is refined through user insight, offering unmatched comfort, control, and eco-consciousness for the modern PTZ camera operator.
