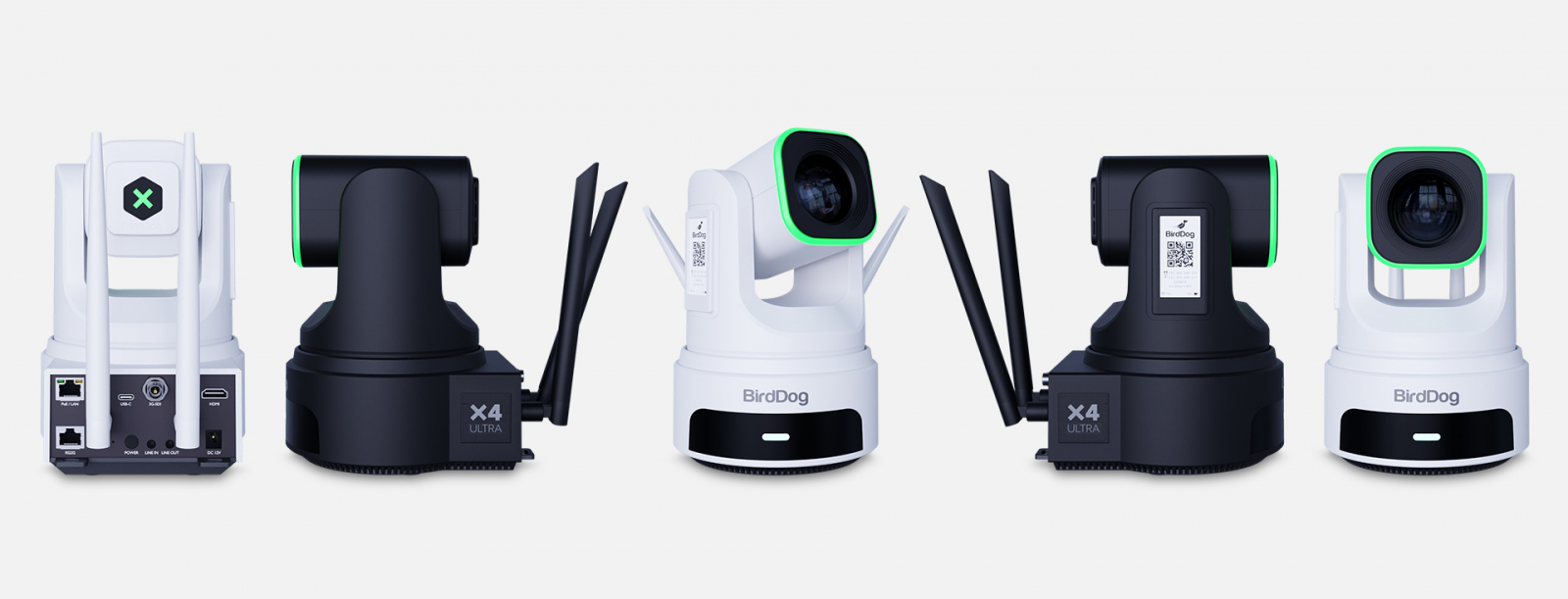

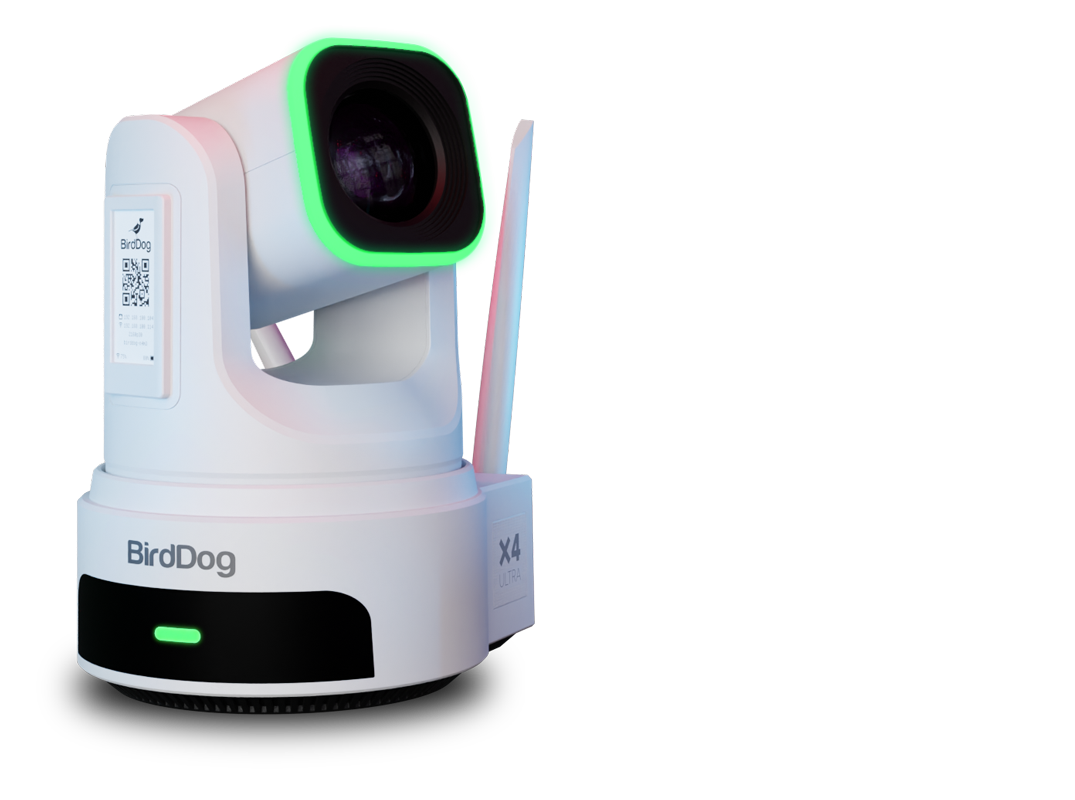

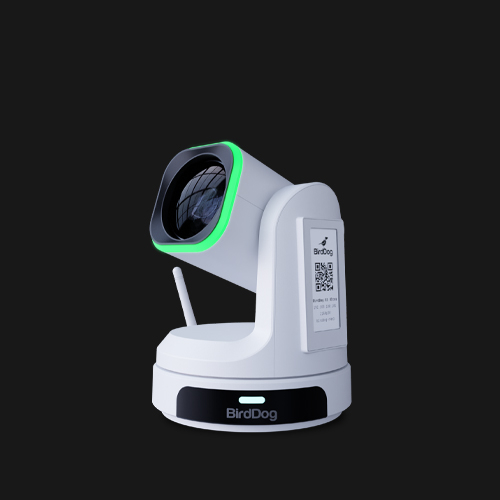

Camera video robotica PTZ BirdDog X4 Ultra

X4 Ultra: Freedom to Create, Anywhere.​
The True Swiss Army Knife for Live Production. A game-changing camera that combines top-tier image quality with unmatched connectivity.​

No cables? No problem. With a built-in battery that lasts up to 4 hours and Wi-Fi 6, X4 Ultra goes where you go. Perfect for capturing those impossible shots in places where wires can’t reach.​

Use it solo, or wirelessly manage up to 4 cameras with Wi-Fi 6, streaming smoothly via NDI|HX3 when paired with our receiver.​

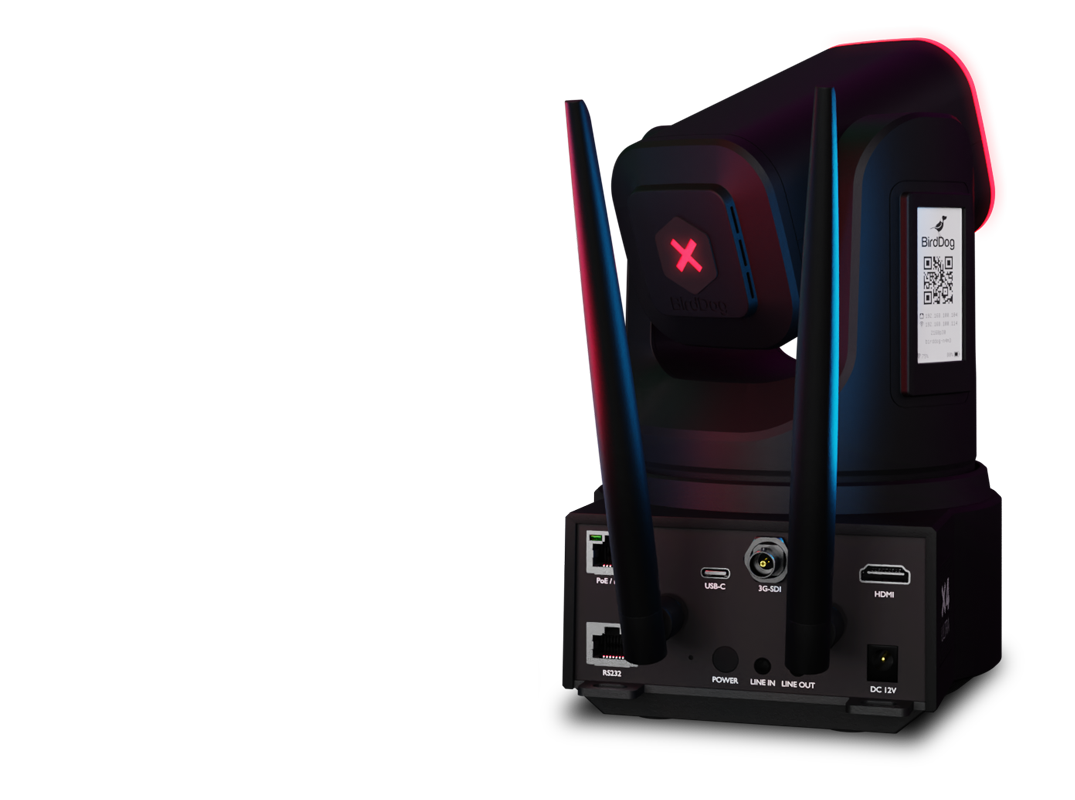

And when you need it, the X4 Ultra comes with: 3G-SDI, NDI, HDMI, USB-C, RTMP & RTSP. All the connections you could want, right there.​

It’s flexible, versatile, and ready for anything. Just pick it up and start shooting.


Feature      X4 Ultra
IMAGING
Image Sensor    Sony 1 / 1.8” CMOS – ULTRA HD
Lens    f= 6.25 - 125mm
Optical Zoom    20x
Video Format    2160p @ 60/59.94/50/30/29.97/25fps,
1080p @ 60/59.94/50/30/29.97/25fps,
1080i @ 59.94/50fps,
720p @ 60/59.94
Horizontal Angle of View    60° (W) ~ 3.5°(T)
Vertical Angle of View    35° (W) ~ 2.0°(T)
Diagonal Angle of View    66.6°(W) ~ 4.0°(T)
Aperture    F1.58 (W) ~ 3.95 (T)
Focus    Auto, Manual
Exposure    Auto, Shutter Priority, Iris Priority, Manual
Shutter Speed    1/1 - 1/10000s
Backlight Compensation    Yes
Digital Noise Reduction    3D Noise Reduction
SNR    ≥45dB
Effective Pixels    8.42 MP
AI Tracking    Presenter Tracking, Zone
MECHANICAL
Pan/Tilt Rotation    ±170°, -30° ~ +90°
Pan Control Speed    1.7-80°/sec
Tilt Control Speed    1.7-60°/sec
Preset Number    255 Presets
Integrated Tally Light    HALO tally and rear number tally system
Display    e-Ink 2.13” with customization logo
I/0 INTERFACE
Video Output Interfaces    3G-SDI, HDMI, USB-C UVC, Network
Video Compression Formats    H.264, H.265
Network Interfaces    1Gbps adaptive Ethernet port; PoE IEEE 802.3at, WiFi 6 2x2 MIMO
(Optional Base station)
Encoder Network Protocols    NDI®|HX2, NDI®|HX3, RTSP, RTMP, SRT
Control Interfaces    1Gbps Ethernet, USB-C, RS-232
Control Protocols    VISCA Baud Rate: 38400/9600/4800/2400,
VISCA-IP, NDI®, ONVIF
Analogue Audio    3.5mm TRS Line input/Mic Input
GENERAL
Environmental Operation    Internal
Input Voltage    DC 12V, POE IEEE 802.3at
Input Current    5.0A (Max)
Battery Capacity    9450mAh
Battery operating time (per charge)    up to 6 hours run time (usage dependent)
Working Temperature    0°C ~ +40°C
Working Humidity    20% ~ 80%
Dimension (W*H*D) mm    140.2*188.9*203.2mm/ 295*245*254mm (before / after packing)
Dimension (W*H*D) in    5.5*7.43*8.0in/ 11.6*9.6*10.0in (before / after packing)
Net and Gross Weight    2.19kg/ (Net/ weight)
