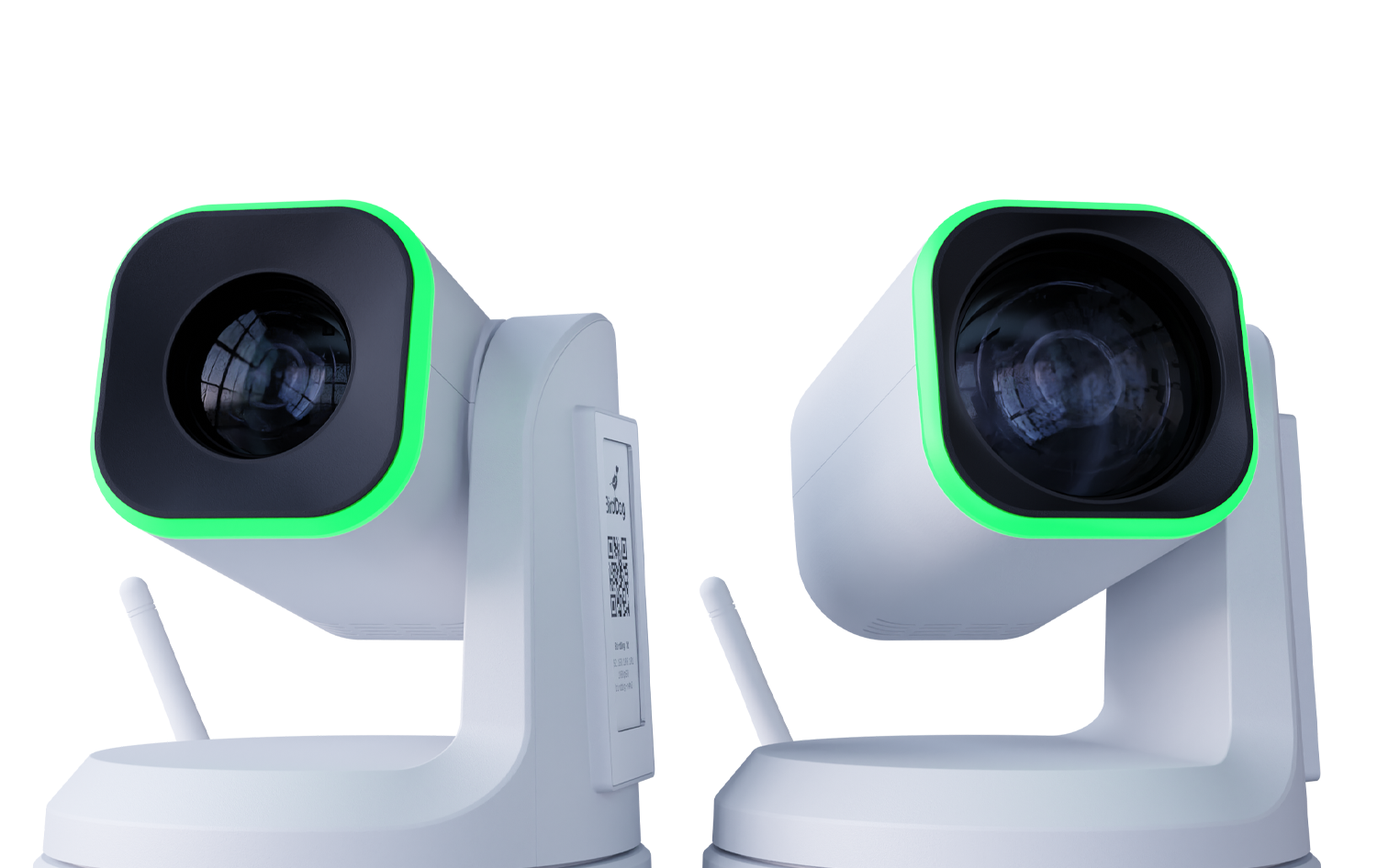

Camera video robotica PTZ BirdDog X1 Ultra

X1 & X1 Ultra: Elevate your creativity and simplify your workflow.​
Unlock a new level of content creation with the X1 and X1 Ultra. PTZ cameras that deliver smooth, controllable movement and high-quality image, all while being incredibly accessible and versatile.​

Whether you’re diving into NDI, baseband video, or even going wireless with Wi-Fi, these cameras integrate smoothly into any workflow.​

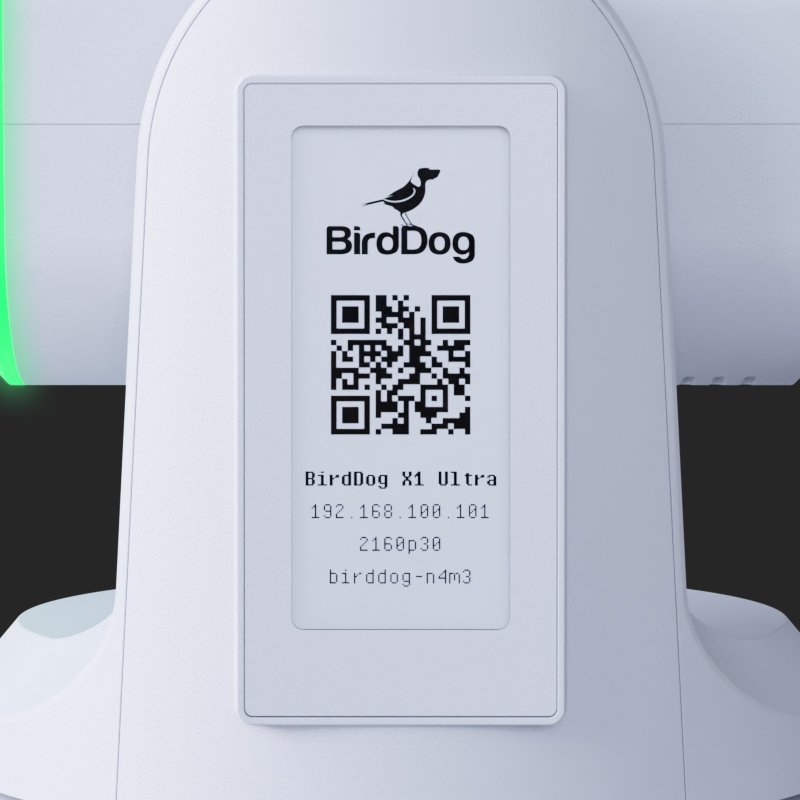

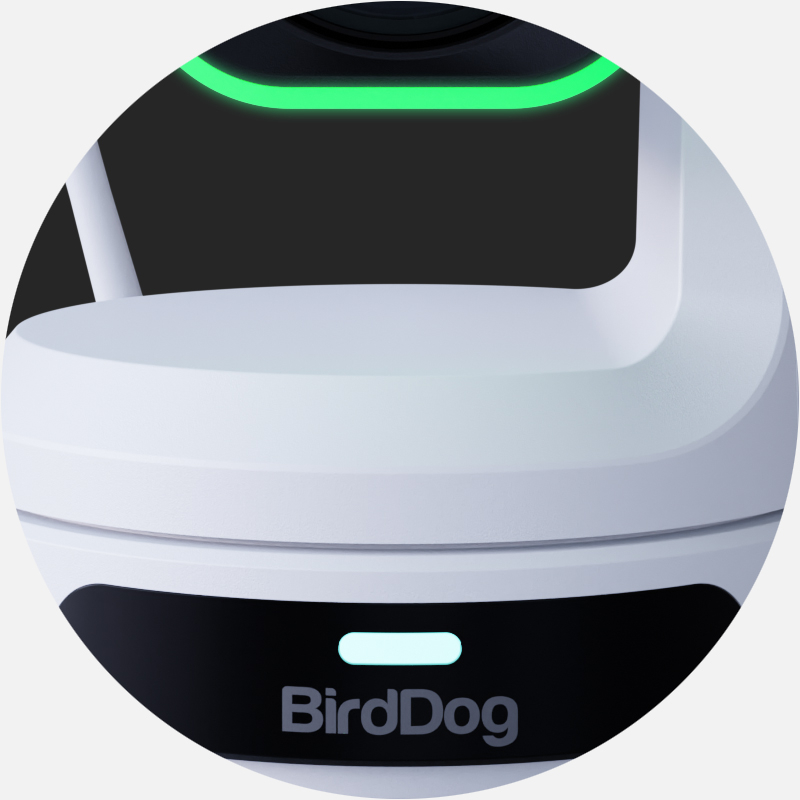

Enjoy effortless control and impressive image quality, with features typically reserved for higher-end models like AI tracking, Halo Tally, built-in NDI|HX decoding and the industry-first E-Ink display. ​

With all these powerful features at your fingertips, the X1 and X1 Ultra are the smart, reliable solution for those ready to take their content creation to the next level.​


Feature    X1    X1 Ultra

IMAGING
Image Sensor    Sony 1/2.8” CMOS • FULL HD    Sony 1/2.8” CMOS • ULTRA HD
Lens    f=5.5mm ~ 110mm    f=4.1mm - 49.2mm
Optical Zoom    20x    12x
Video Format    1080p @ 60/59.94/50/30/29.97/25fps
720p @ 60/50/30/25fps    2160p @ 30/29.97/25fps
1080p @ 30/29.97/25fps
720p @ 30/29.97/25fps
Horizontal angle of view    55.8° (W) – 3.2° (T)    70.28º (W) - 6.57º (T)
Vertical angle of view    32.2° (W) – 1.8° (T)    42.06º (W) - 3.76º (T)
Diagonal angle of view    61° (W) – 3.64° (T)    78.36º (W) - 7.5º (T)
Aperture    F1.6 ~ 3.5    F1.8 ~ 2.68
Focus    Auto, Manual
Exposure    Auto, Shutter Priority, Iris Priority, Manual
Backlight Compensation    Yes
Digital Noise Reduction    2D and 3D Noise Reduction
SNR    >50dB
Effective Pixels    2.07 MP    8.29 MP
MECHANICAL
Pan/Tilt Rotation    ±175°, -90°～+90°
Pan Control Speed    0.1 -80°/sec
Tilt Control Speed    0.1 -60°/sec
Preset Number    255 presets
I/O INTERFACE

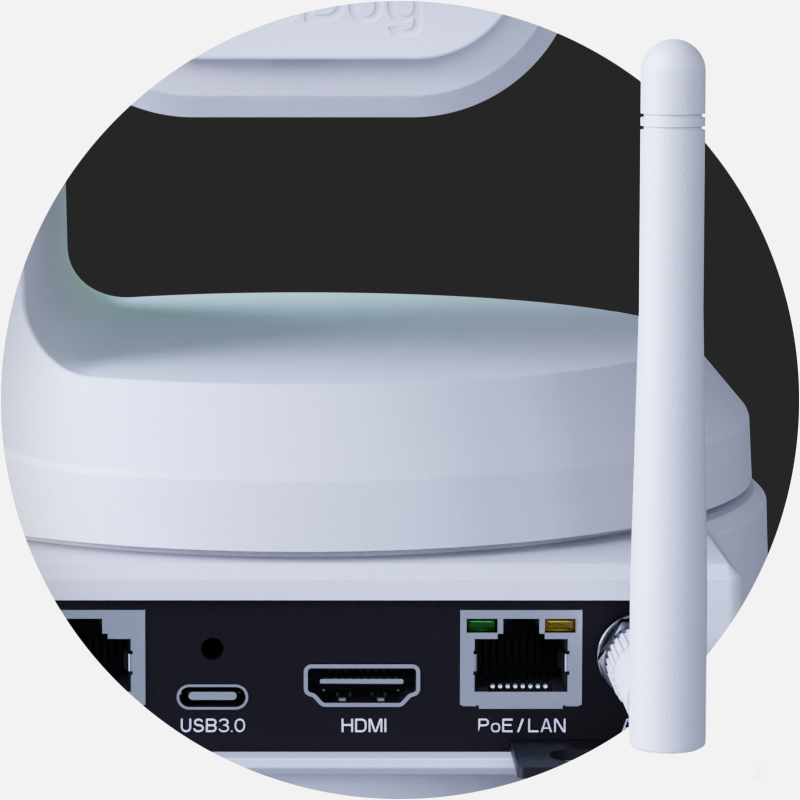

Video Output Interfaces    HDMI, USB-C UVC 1.1, Network
Video Compression Format    H.264, H.265
Network Interfaces    100M adaptive Ethernet port; POE IEEE802.3af, Wi-Fi IEEE 802.11ac
Encoder Network Protocols    NDI|HX2, NDI|HX3, SRT, RTSP, RTMP
HDMI Decoder Network Protocols    NDI|HX2, NDI|HX3
Control Interfaces    10M/100M Ethernet, Wi-Fi IEEE 802.11ac, RS232 (input & output), RS485, TYPE-C(UVC1.1)
Control Protocols    VISCA Baud Rate: 38400/9600/4800/2400, VISCA-IP, NDI
3rd Party Control Protocols    Support for Q-sys, Crestron and BitFocus Companion modules is scheduled for August 2024
GENERAL PARAMETER
Input Voltage    DC 12V, POE IEEE802.3af
Input Current    2.0A (Max.)
Power Consumption    13W (Max.)
Working Temperature    -10℃ ～ +40℃
Working Humidity    20% ～ 80%
Dimension (W*H*D)    171.6*192.6*171.6mm/ 260*217*197mm (before/ after packing)
Net and Gross Weight    1.35kg/2.05kg (Net/Gross weight)    1.43kg/2.096kg (Net/Gross weight)
Included WiFi antenna 2dBi
