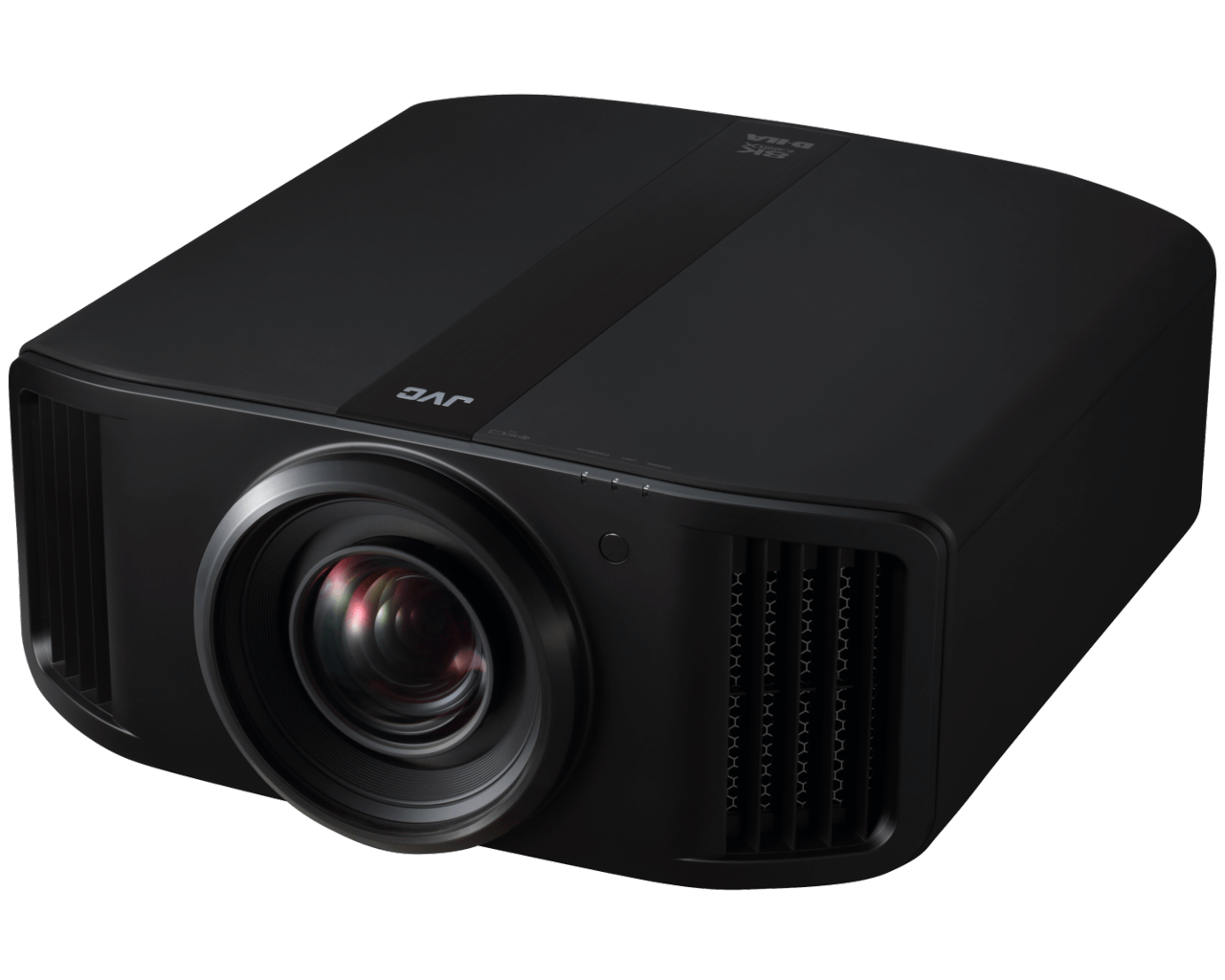

Proiector home theater JVC D-ILA DLA-NZ9

Frame Adapt HDR Generation 2

The Frame Adapt HDR technology, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of HDR10 content per frame and adjust the dynamic range in real time to the optimum range for video projection on projectors, has evolved into the second generation. As the culmination of the HDR image processing technology that we have cultivated up to now, we have completely reexamined the tone mapping algorithm in accordance with the scene and frame, and have achieved HDR images with higher definition and full of three-dimensional feeling by suppressing the whiteness especially in the high brightness area.

Light source control by Gauge

Laser light source adjustment function that can be finely adjusted according to the environment and preference. After the update from the previous 3 steps, fine adjustment of 0 -100 steps is possible, and adjustment based on the brightness on the screen and flexible setting according to the use environment are possible.

USB Back-up

USB backup function that can save and write all settings at once.

This function saves the settings on the main unit menu to a commercially available USB flash drive. Professional adjustments can be saved or backed up in advance to undo unintended adjustments by children or family members.

The Art of Projection next generation

World’s first home projector capable of
inputting 8K60p/4K120p signals

These projectors adopt LSI's developed with the latest technology to process the vast amount of 8K input data, and an up converter to bring any source up to high definition 8K resolution. As a result, more beautiful and realistic video images full of contrast and reality can be enjoyed regardless of the source, from video streaming to 4K UHD-BD videos.

4K120p input ideal for Low Latency Mode

Because these projectors are equipped with 4K120p input, signal latency is infinitesimal, making it effective when displaying high frame-rate gaming content on large screens. What’s more, Low Latency Mode reduces delay in displaying PC signals and games, and improves response to the users’ rapid operations.

• DLA-NZ9 - D-ILA Projector

  Device

  D-ILA Technology Yes


  [1] BLU-Escent is a registered trademark of JVCKENWOOD Corporation.
  [2] ISF is a registered trademark of Imaging Science Foundation, Inc.
  [3] HDR10+™ logo is a trademark of HDR10+ Technologies, LLC.
  [4] This function is supported from software version v2.00 or higher.
  [5] Theater Optimizer can be activated only when the projectors picture mode is set to Frame Adapt HDR.
  [6] HDMI, the HDMI logo and High-Definition Multimedia Interface are registered trademarks of HDMI Licensing LLC.
  [7] FILMMAKER MODE™ logo is a trademark of UHD Alliance, Inc

  General Editing Note

  General Note: Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice. Package Weight 30.7 Kg Package Dimensions (WxHxD) 640 x 415 x 665 (mm) Product Weight 25.3 Kg

  Dimensions & Weight

  Product Dimensions (WxHxD) 500 x 234 x 528 (mm) Batteries Yes, 2 x AAA-size batteries Power Cord Yes User Manual Yes

  In the box

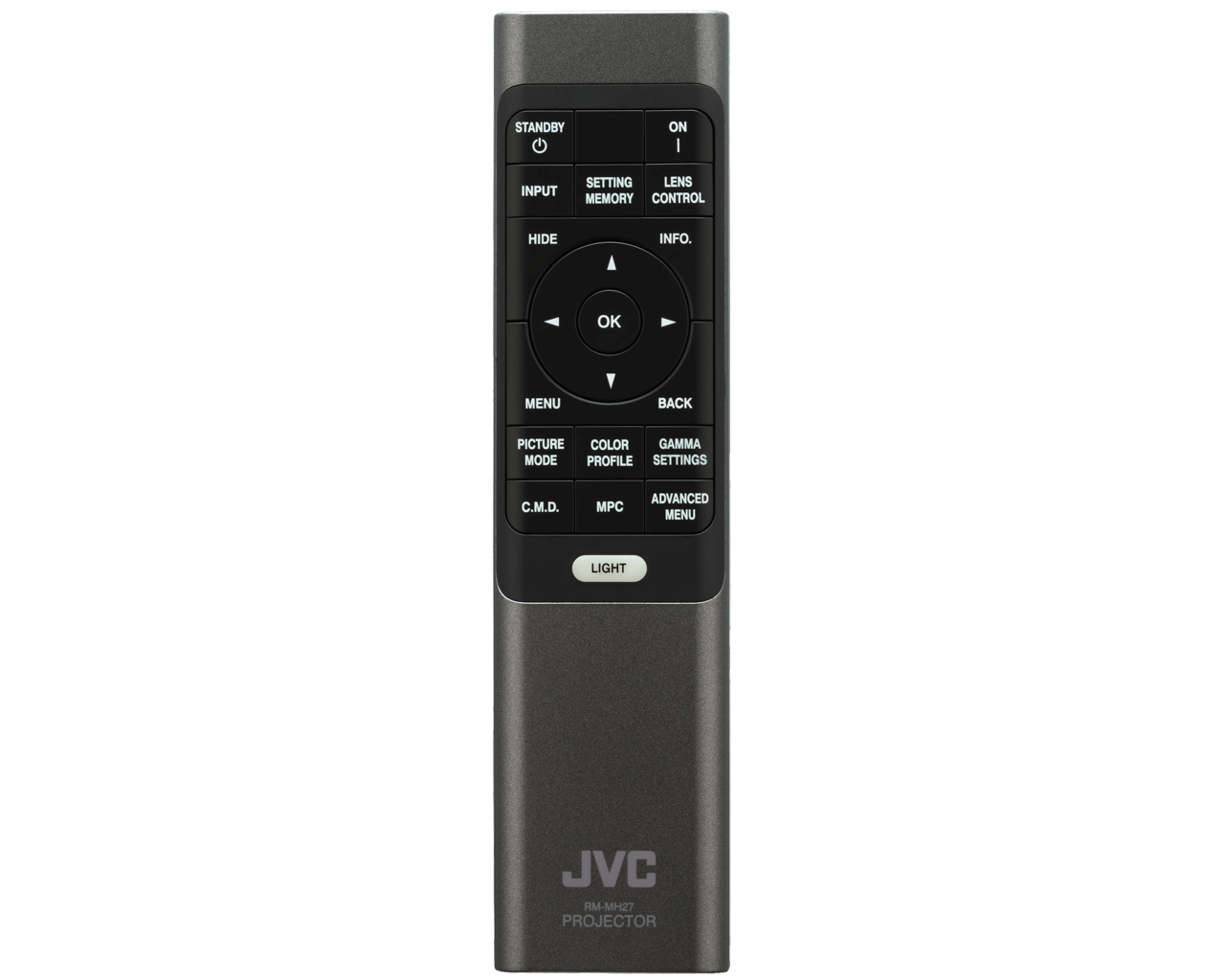

  Remote Control Yes, RM-MH27 Installation Height Below 2,000 m Installation Angle Horizontal +/- 5 degree / Vertical +/- 10 degree Operating Humidity 20% to 80% Operating Temperature 5°C to 35°C Standby Timer Yes Eco Mode Yes Fan Noise 24 dB Switchover time Approx. 15 min. (To standby or networked standby; default) Network Standby 1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C) Standby Eco Mode 0.20W Projector in Use 440W

  Power & Environment

  Power Requirement AC100-240V, 50/60Hz Control4 SDDP Yes Anamorphic Modes 4 Modes (A, B, C, D) Included settings Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect Number of modes 8 Installation Mode Yes Optional Probe needed Yes Auto Calibration Yes Motion Enhance Yes Clear Motion Drive Yes Low Latency Mode Yes Filmmaker Mode [7] Yes MPC Yes Color Management 6-Axis adjustable CMS Gamma Adjust HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, Pana_PQ, 3 Custom modes Gamma Processing Depth 12 bit Color Temperatures Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2

  Picture Settings

  Picture Modes Natural, Cinema, Film, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes 3D Glasses (Optional) Yes, PK-AG3 3D Emitter (Optional) Yes, PK-EM2 Top & Bottom Resolution 720p 60/50, 1080p/24 Side-by-Side Resolutions 720p 60/50, 1080p 60/50/24, 1080i 60/50 Frame Packing Resolutions 720p 60/50, 1080p 24 3D Versions Frame Packing, Side-by-Side, Top & Bottom

  3D

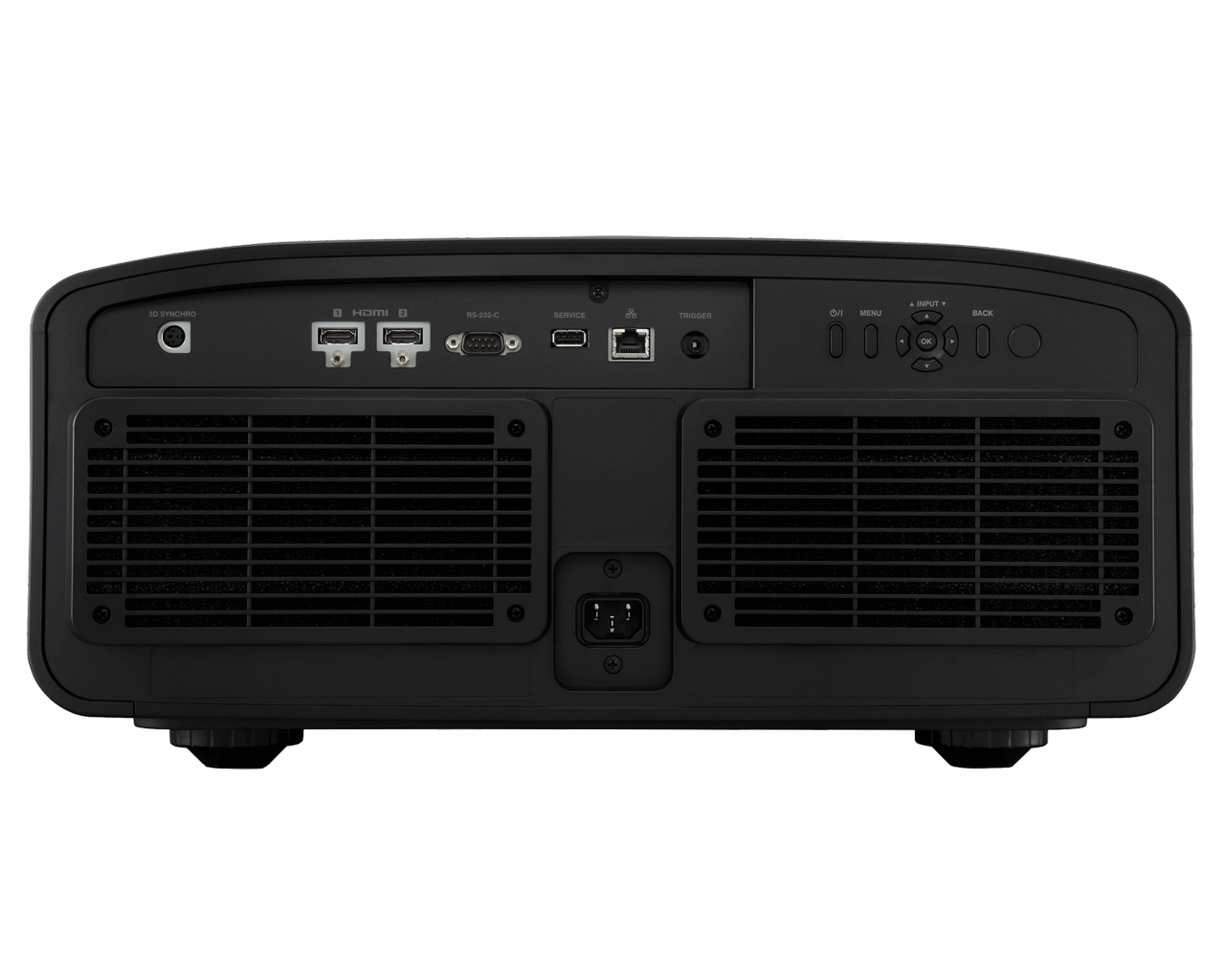

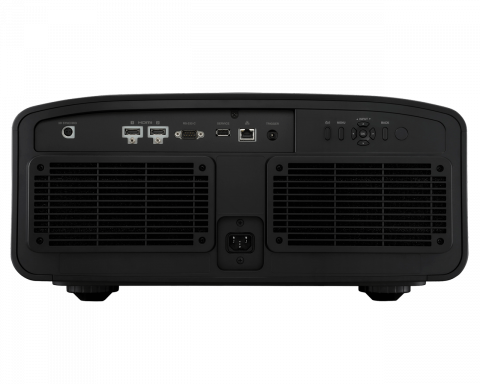

  3D Capability Yes Connector USB (Type A) for firmware update. Service Yes

  D-sub 9-pin

  Connector RS-232 Yes Connector RJ45 LAN Yes Connector Mini DIN 3-pin 3D Synchro Yes Power DC 12V / 100mA Connector Mini-Jack (3,5mm)

  Connections

  Trigger out Yes EDID Modes A and B (older hardware may need to use B settings) Color Space Range Auto/ YCbCr4444 / YCbCr422 / RGB Input Level Adjustment Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255) PC Signal range VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120) Video Signal range 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24 4K60P signal input Yes 4K120p signal input Yes 8K60P signal input Yes HDCP Version 2.3 Data Rate 48 Gbps Number of Inputs 2

  HDMI

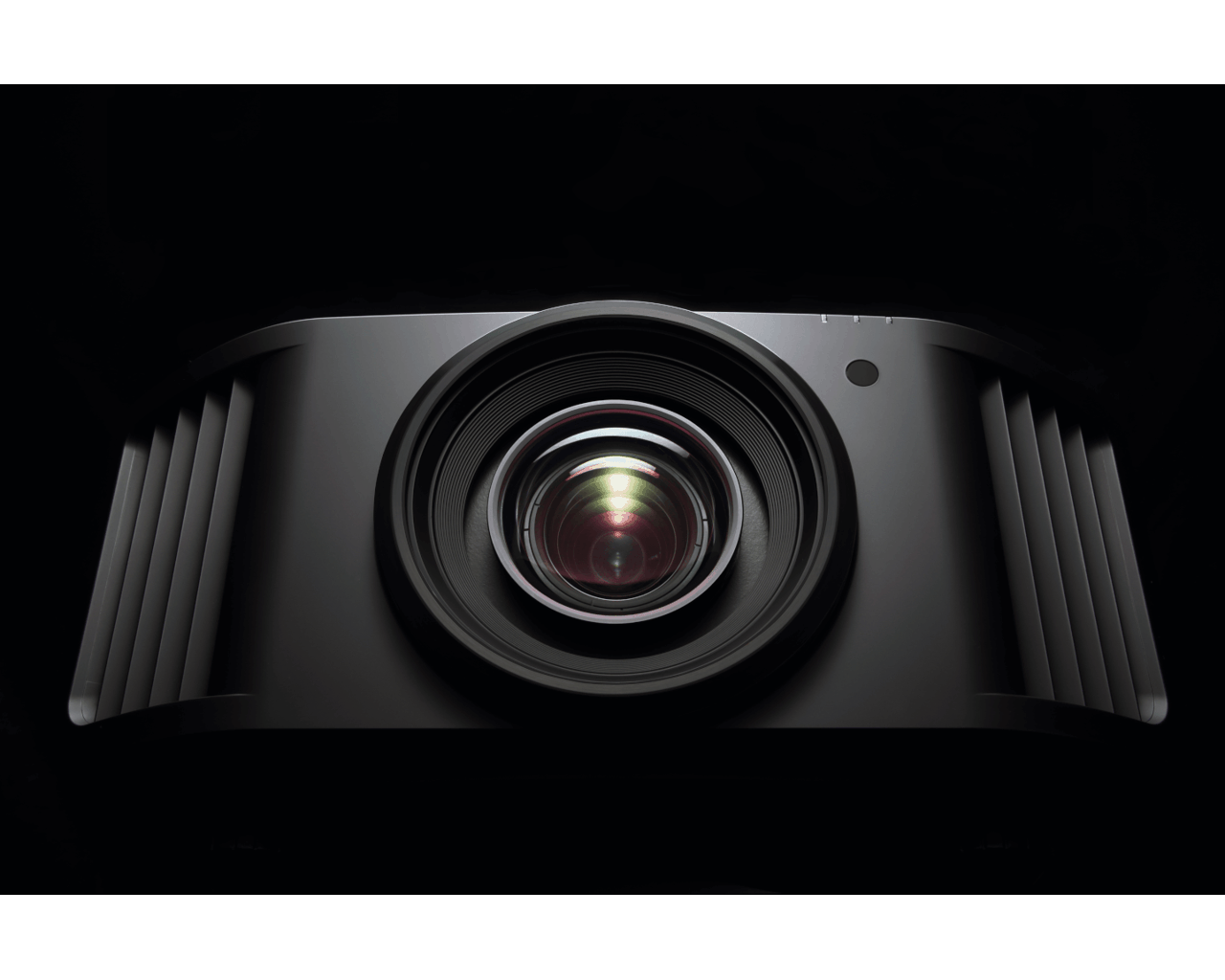

  HDMI [6] Yes Lens Cover Yes Number of user presets 10 Memory Function Yes Projection Display size (diagonal) 60 - 300 inch Motorized Focus Yes Motorized Shift Yes Motorized Zoom Yes Range Vertical ± 100 % Range Horizontal ± 43 % Lens Shift Yes Build 18-element, 16-group in full aluminium lens barrel. Material All-glass Diameter 100 mm Throw Ratio 1.35-2.75:1

  Lens

  Zoom 2 x HDR Picture Modes BT.709 / BT.2020 / DCI / HDR Info data MaxCLL and MaxFALL mastering data Mastering Info Display Yes Auto Tone Mapping Yes HLG Yes Theater Optimizer [5] Yes Frame Adapt HDR [4] Yes HDR10+ [3] Yes

  HDR

  HDR10 Yes ISFccc Certification [2] Yes Color Bit Depth 12 bit 100% REC 709 Yes DCI-P3 Color Gamut Yes Range -15 (stops down) to 0 (opens up) Manual Aperture Yes Modes Mode 1 (gentle), Mode 2 (strong), Off Dynamic Light Power control Yes Native Contrast 100000 : 1 Dynamic Contrast ∞ : 1


  Brightness 3000 lm Life Time (Standard Mode) 20000 hours Type BLU-Escent Laser Diode

  Light Source

  Laser [1] Yes Display Resolution 8192 x 4320 8K/e-shiftX Yes Number Of Chips 3 Native Resolution 4096 x 2160 Chip Type 0.69-inch 4K D-ILA device
