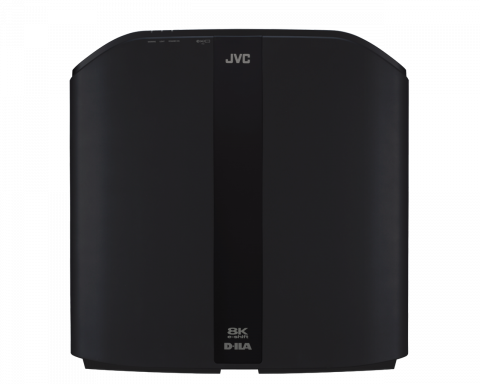

Proiector home theater JVC D-ILA DLA-NZ7

Proiector home theater JVC D-ILA DLA-NZ7

The DLA-NZ7 D-ILA projector is the world first home theater projector to feature 8K/60p/4K120p input. It is equipped with a new 8K/e-shift proprietary technology to reproduce 8K-quality images. The projector is driven by three native 4K D-ILA devices, high-quality 65 mm glass lens, and Ultra-High Brightness of 2,200 lumens. The BLU-Escent laser diode light source also contributes to project images that come close to reality. Compatible with the latest HDR10+, the projector boasts industry leading HDR performance. 8K, Laser, and HDR are the keywords that describe JVCs DLA-NZ7. *As a home theatre projector, as of September 2021; according to a research by JVCKENWOOD.

Features

8K/e-shift technology reproduces 8K image quality
BLU-Escent Laser Light Source
High brightness of 2,200 lm provides vibrant and dynamic images
Native Contrast Ratio of 40,000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1
2x HDMI (48 Gbps, HDCP 2.3) inputs, supporting 8K60P and 4K120P input signals
HDR10+ contains the metadata of the producer’s intentions for each scene, and with such data, the projector is able to automatically reproduce images as the creator intended.
Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images close to reality as seen by human eyes. As a part the Frame Adapt HDR, the projector offers improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation.Additional Frame Adapt HDR picture modes allows for optimum playback with the widest variety of lighting conditions or theater environments.
Theater Optimizer function, which works in Frame Adapt HDR mode, offers optimum HDR images by analyzing usage environments using the screen size and gain information and intelligently adjusts tone mapping. HDR Quantizer with New Auto (Wide) level mode provides brighter/more dynamic HDR images.
Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality
New FILMMAKER MODE™ that faithfully recreates the creator’s intentions*

Cere Oferta

Cod Produs: DLA-NZ7 Ai nevoie de ajutor? 0722428874

Adauga la Favorite

Descriere

Frame Adapt HDR Generation 2

The Frame Adapt HDR technology, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of HDR10 content per frame and adjust the dynamic range in real time to the optimum range for video projection on projectors, has evolved into the second generation. As the culmination of the HDR image processing technology that we have cultivated up to now, we have completely reexamined the tone mapping algorithm in accordance with the scene and frame, and have achieved HDR images with higher definition and full of three-dimensional feeling by suppressing the whiteness especially in the high brightness area.

Light source control by Gauge

Laser light source adjustment function that can be finely adjusted according to the environment and preference. After the update from the previous 3 steps, fine adjustment of 0 -100 steps is possible, and adjustment based on the brightness on the screen and flexible setting according to the use environment are possible.

USB Back-up

USB backup function that can save and write all settings at once.

This function saves the settings on the main unit menu to a commercially available USB flash drive. Professional adjustments can be saved or backed up in advance to undo unintended adjustments by children or family members.

The Art of Projection next generation

World’s first home projector capable of
inputting 8K60p/4K120p signals

These projectors adopt LSI's developed with the latest technology to process the vast amount of 8K input data, and an up converter to bring any source up to high definition 8K resolution. As a result, more beautiful and realistic video images full of contrast and reality can be enjoyed regardless of the source, from video streaming to 4K UHD-BD videos.

4K120p input ideal for Low Latency Mode

Because these projectors are equipped with 4K120p input, signal latency is infinitesimal, making it effective when displaying high frame-rate gaming content on large screens. What’s more, Low Latency Mode reduces delay in displaying PC signals and games, and improves response to the users’ rapid operations.

DLA-NZ7 - D-ILA Projector

Device

D-ILA Technology: Yes

Chip Type: 0.69-inch 4K D-ILA device

Native Resolution: 4096 x 2160

Number Of Chips: 3

8K/e-shift: Yes

Display Resolution: 8192 x 4320

Light Source

Laser ^[1]: Yes

Type: BLU-Escent Laser Diode

Life Time (Standard Mode): 20000 hours


Brightness: 2200 lm

Dynamic Contrast: ∞ : 1

Native Contrast: 40000 : 1

Dynamic Light Power control: Yes

Modes: Mode 1 (gentle), Mode 2 (strong), Off

Manual Aperture: Yes

Range: -15 (stops down) to 0 (opens up)

100% REC 709: Yes

Color Bit Depth: 12 bit

ISFccc Certification ^[2]: Yes

HDR

HDR10: Yes

HDR10+ ^[3]: Yes

Frame Adapt HDR ^[4]: Yes

Theater Optimizer ^[5]: Yes

HLG: Yes

Auto Tone Mapping: Yes

Mastering Info Display: Yes

Info data: MaxCLL and MaxFALL mastering data

HDR Picture Modes: BT.709 / BT.2020 / DCI / HDR

Lens

Zoom: 2 x

Throw Ratio: 1.43-2.92:1

Diameter: 65 mm

Material: All-glass

Build: 17-element, 15-group in full aluminium lens barrel.

Lens Shift: Yes

Range Horizontal: ± 34 %

Range Vertical: ± 80 %

Motorized Zoom: Yes

Motorized Shift: Yes

Motorized Focus: Yes

Projection Display size (diagonal): 60 - 200 inch

Memory Function: Yes

Number of user presets: 10

Lens Cover: Yes

HDMI

HDMI ^[6]: Yes

Number of Inputs: 2

Data Rate: 48 Gbps

HDCP Version: 2.3

8K60P signal input: Yes

4K120p signal input: Yes

4K60P signal input: Yes

Video Signal range: 480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24

PC Signal range: VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)

Input Level Adjustment: Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)

Color Space Range: Auto/ YCbCr4444 / YCbCr422 / RGB

EDID Modes: A and B (older hardware may need to use B settings)

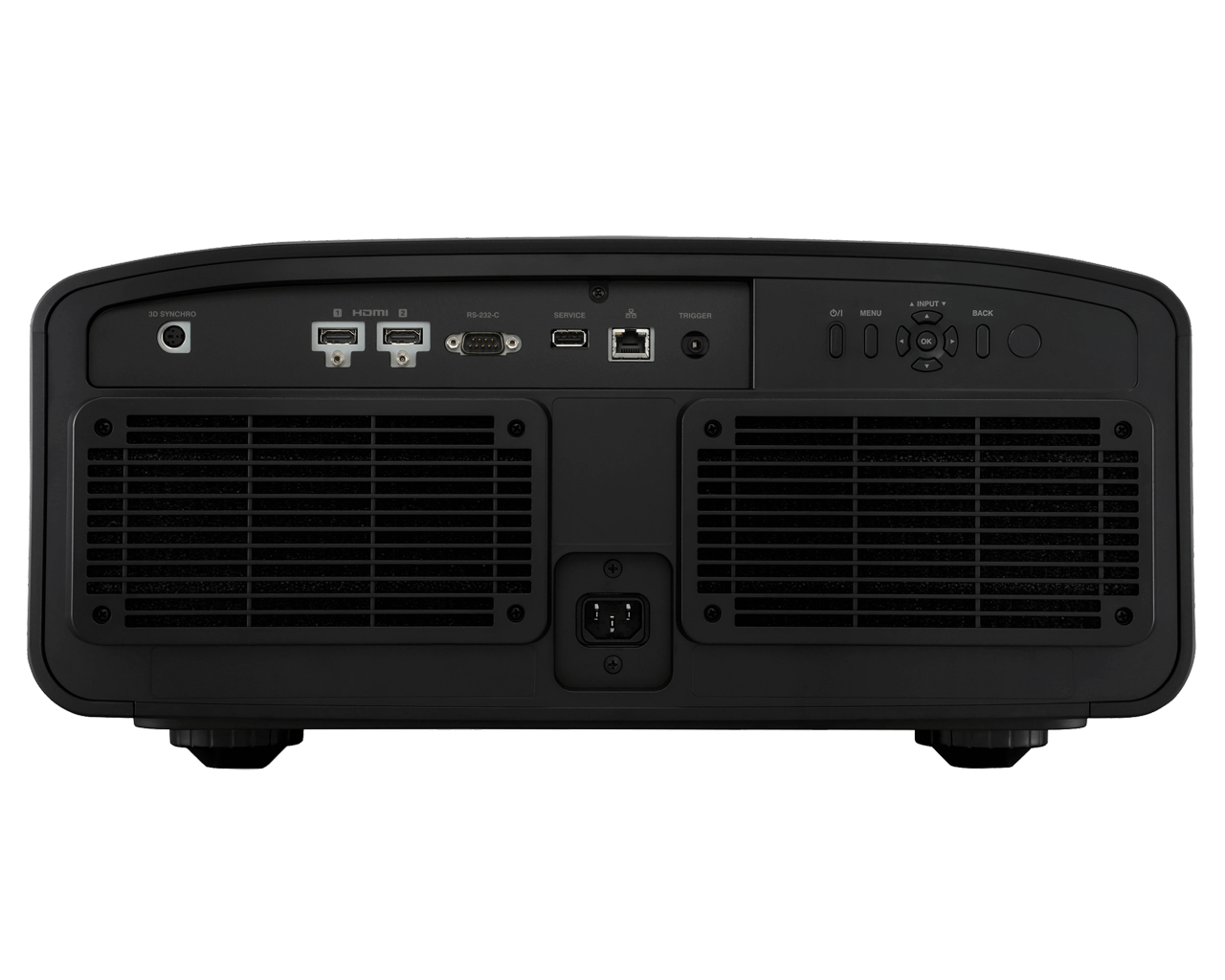

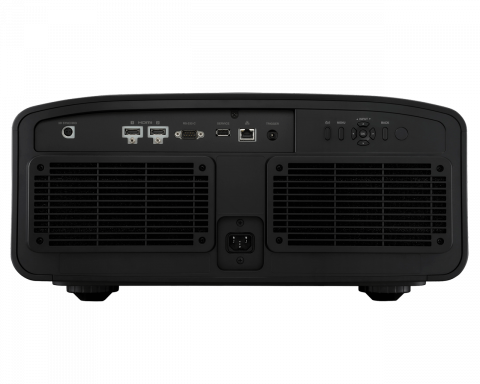

Connections

Trigger out: Yes

Connector: Mini-Jack (3,5mm)

Power: DC 12V / 100mA

3D Synchro: Yes

Connector: Mini DIN 3-pin

LAN: Yes

Connector: RJ45

RS-232: Yes

Connector: D-sub 9-pin

Service: Yes

Connector: USB (Type A) for firmware update.

3D

3D Capability: Yes

3D Versions: Frame Packing, Side-by-Side, Top & Bottom

Frame Packing Resolutions: 720p 60/50, 1080p 24

Side-by-Side Resolutions: 720p 60/50, 1080p 60/50/24, 1080i 60/50

Top & Bottom Resolution: 720p 60/50, 1080p/24

3D Emitter (Optional): Yes, PK-EM2

3D Glasses (Optional): Yes, PK-AG3

Picture Settings

Picture Modes: Natural, Cinema, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes

Color Temperatures: 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2

Gamma Processing Depth: 12 bit

Gamma Adjust: HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Pana_PQ, 3 Custom modes

Color Management: 6-Axis adjustable CMS

MPC: Yes

Filmmaker Mode ^[7]: Yes

Low Latency Mode: Yes

Clear Motion Drive: Yes

Motion Enhance: Yes

Auto Calibration: Yes

Optional Probe needed: Yes

Installation Mode: Yes

Number of modes: 10

Included settings: Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect

Anamorphic Modes: 4 Modes (A, B, C, D)

Control4 SDDP: Yes

Power & Environment

Power Requirement: AC100-240V, 50/60Hz

Projector in Use: 420W

Standby: Eco Mode 0.20W

Network Standby: 1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C)

Switchover time: Approx. 15 min. (To standby or networked standby; default)

Fan Noise: 24 dB

Eco Mode: Yes

Standby Timer: Yes

Operating Temperature: 5°C to 35°C

Operating Humidity: 20% to 80%

Installation Angle: Horizontal +/- 5 degree / Vertical +/- 10 degree

Installation Height: Below 2,000 m

In the box

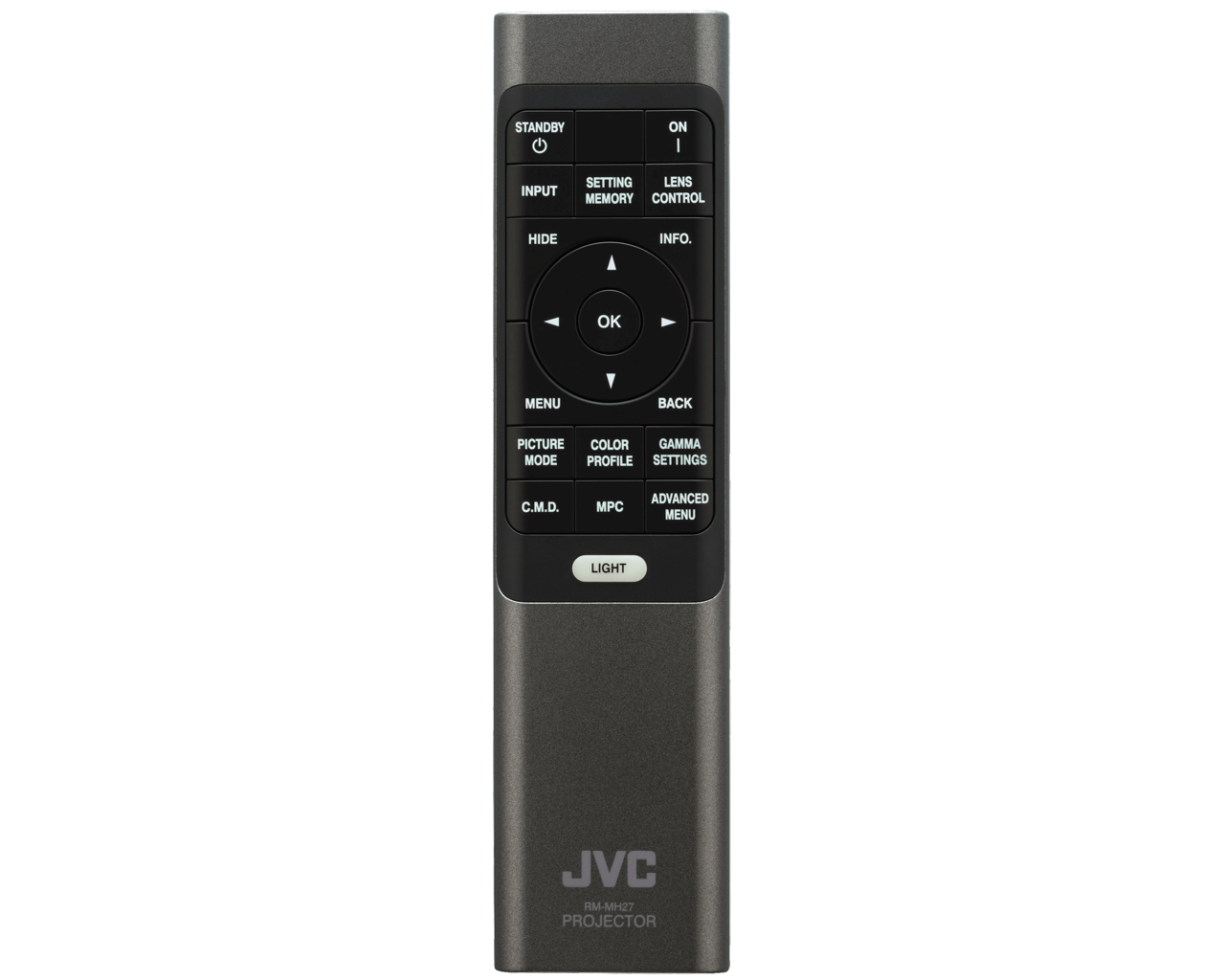

Remote Control: Yes, RM-MH27

User Manual: Yes

Power Cord: Yes

Batteries: Yes, 2 x AAA-size batteries

Dimensions & Weight

Product Dimensions (WxHxD): 500 x 234 x 505 (mm)

Product Weight: 22.5 Kg

Package Dimensions (WxHxD): 640 x 415 x 665 (mm)

Package Weight: 27.9 Kg

General Editing Note

General Note:: Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.

[1] BLU-Escent is a registered trademark of JVCKENWOOD Corporation.
[2] ISF is a registered trademark of Imaging Science Foundation, Inc.
[3] HDR10+™ logo is a trademark of HDR10+ Technologies, LLC.
[4] This function is supported from software version v2.00 or higher.
[5] Theater Optimizer can be activated only when the projectors picture mode is set to Frame Adapt HDR.
[6] HDMI, the HDMI logo and High-Definition Multimedia Interface are registered trademarks of HDMI Licensing LLC.
[7] FILMMAKER MODE™ logo is a trademark of UHD Alliance, Inc
