Proiector home theater JVC D-ILA DLA-25LTD

Ultra-High Contrast Optics with 4K D-ILA device

High-resolution image projection is reliant on the device and the optical system. The refined 0.69-inch 4K D-ILA device has doubled the speed required, to display images from 120 Hz to 240 Hz-equivalent. The new Ultra-High Contrast Optics featured on the DLAｰNZ8 contribute to achieve optical brightness as high as 2,500 lumens, and the new optics has dramatically improved the image quality by thoroughly suppressing the return of unnecessary light to the projection screen.



HDR10+ Support allows a choice for two dynamic
tone mappings

When it comes to reproducing the rich video information of HDR content including the extended brightness range, BT.2020 wide colour gamut and 10-bit gradation, rely on one of the new D-ILA projectors. New models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the latest HDR10+ signal format with dynamic metadata compatibility.

JVC projectors are compatible with the two dynamic tone mappings of HDR10+ and Frame Adapt HDR. HDR10+ contains the metadata of the producer's intentions for each scene, Frame Adapt HDR instantly analyses the peak brightness in HDR10 content using an original algorithm. Ensuring you can watch any HDR content in optimal picture quality.

Essential all-glass lens to depict all the data in the 8K/4K images

The DLA-NZ8 is equipped with an 17-element, 15-group all-glass lens featuring a full aluminum lens barrel. To project high resolution 8K images to every corner of the screen.

Newly developed 8K/e-shiftX technology to achieve
8K resolution

Significant progress has been made to our proprietary 8K/e-shift technology – which combines “e-shift” high-resolution display technology, that doubles the resolution by shifting a pixel by 0.5 pixels, and 0.69-inch native 4K D-ILA device. Shift direction has increased from the conventional two diagonal directions to four directions of up, down, left, and right, to enable display of 8K signal information in its entirety.
The result is an 8K resolution, enhancing the sense of three-dimensionality and immersion.

World’s first home projector capable of
inputting 8K60p/4K120p signals

These projectors adopt LSI's developed with the latest technology to process the vast amount of 8K input data, and an up converter to bring any source up to high definition 8K resolution. As a result, more beautiful and realistic video images full of contrast and reality can be enjoyed regardless of the source, from video streaming to 4K UHD-BD videos.

Reliability-proved BLU-Escent Laser Diode for exceptional brightness and longevity

The light source for these projectors is the latest blue laser diode BLU-Escent, which is featured in JVC projectors. BLUEscent technology has been adopted for home theatre projectors to achieve exceptional brightness and longevity of 20,000 hours*. Laser diode allows dynamic control of brightness to reproduce images that are closer to human perception. Combining the latest BLU-Escent package with the D-ILA device achieves detailed, smooth, powerful video expression.

*In theory, this amounts to 20 years or more while watching a 2.5-hour movie every day.



DLA-25LTD - D-ILA Projector

Device

D-ILA Technology

Yes

Chip Type

0.69-inch 4K D-ILA device

Native Resolution

4096 x 2160

Number Of Chips

3

8K/e-shiftX

Yes

Display Resolution

8192 x 4320

Light Source

Laser [1]

Yes

Type

BLU-Escent Laser Diode

Life Time (Standard Mode)

20000 hours


Brightness

3000 lm

Dynamic Contrast

∞ : 1

Native Contrast

150000 : 1

Dynamic Light Power control

Yes, 2 Modes

Modes

Mode 1 (gentle), Mode 2 (strong), Off

Manual Aperture

Yes

Range

-15 (stops down) to 0 (opens up)

DCI-P3 Color Gamut

Yes

100% REC 709

Yes

Color Bit Depth

12 bit

ISFccc Certification [2]

Yes

HDR

HDR10

Yes

HDR10+ [3]

Yes

Frame Adapt HDR [4]

Yes, 3 User modes

Theater Optimizer [5]

Yes

HLG

Yes

Auto Tone Mapping

Yes

Mastering Info Display

Yes

Info data

MaxCLL and MaxFALL mastering data

HDR Picture Modes

BT.709 / BT.2020 / DCI / HDR

Lens

Zoom

2 x

Throw Ratio

1.35-2.75:1

Diameter

100 mm

Material

All-glass

Build

18-element, 16-group in full aluminium lens barrel.

Lens Shift

Yes

Range Horizontal

± 43 %

Range Vertical

± 100 %

Motorized Zoom

Yes

Motorized Shift

Yes

Motorized Focus

Yes

Projection Display size (diagonal)

60 - 300 inch

Memory Function

Yes

Number of user presets

10

Lens Cover

Yes

HDMI

HDMI [6]

Yes

Number of Inputs

2

Data Rate

48 Gbps

HDCP Version

2.3

8K60P signal input

Yes

4K120p signal input

Yes

4K60P signal input

Yes

Video Signal range

480p, 576p, 720p 60/50, 1080i 60/ 50, 1080p 120/ 100/ 60/ 50/ 30/ 25/ 24, 3840 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 4096 x 2160p 120/ 100/ 60/ 50/ 30/ 25/ 24, 7680 x 4320p 60/ 50/ 30/25 /24

PC Signal range

VGA / SVGA / XGA / WXGA / WXGA+ / SXGA / WSXGA+ / UXGA / WUXGA / WQHD (60) / WQHD (120)

Input Level Adjustment

Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)

Color Space Range

Auto/ YCbCr4444 / YCbCr422 / RGB

EDID Modes

A and B (older hardware may need to use B settings)

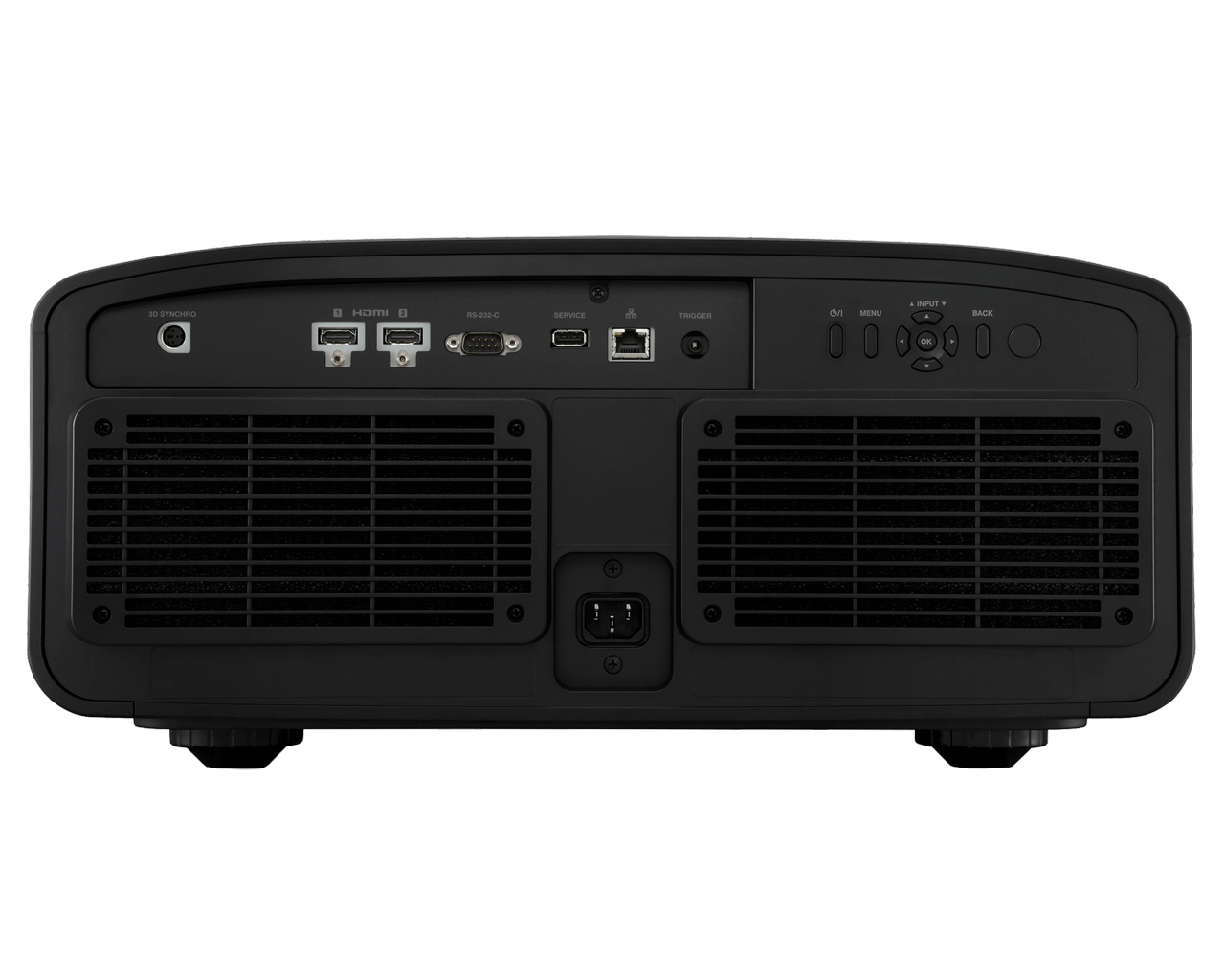

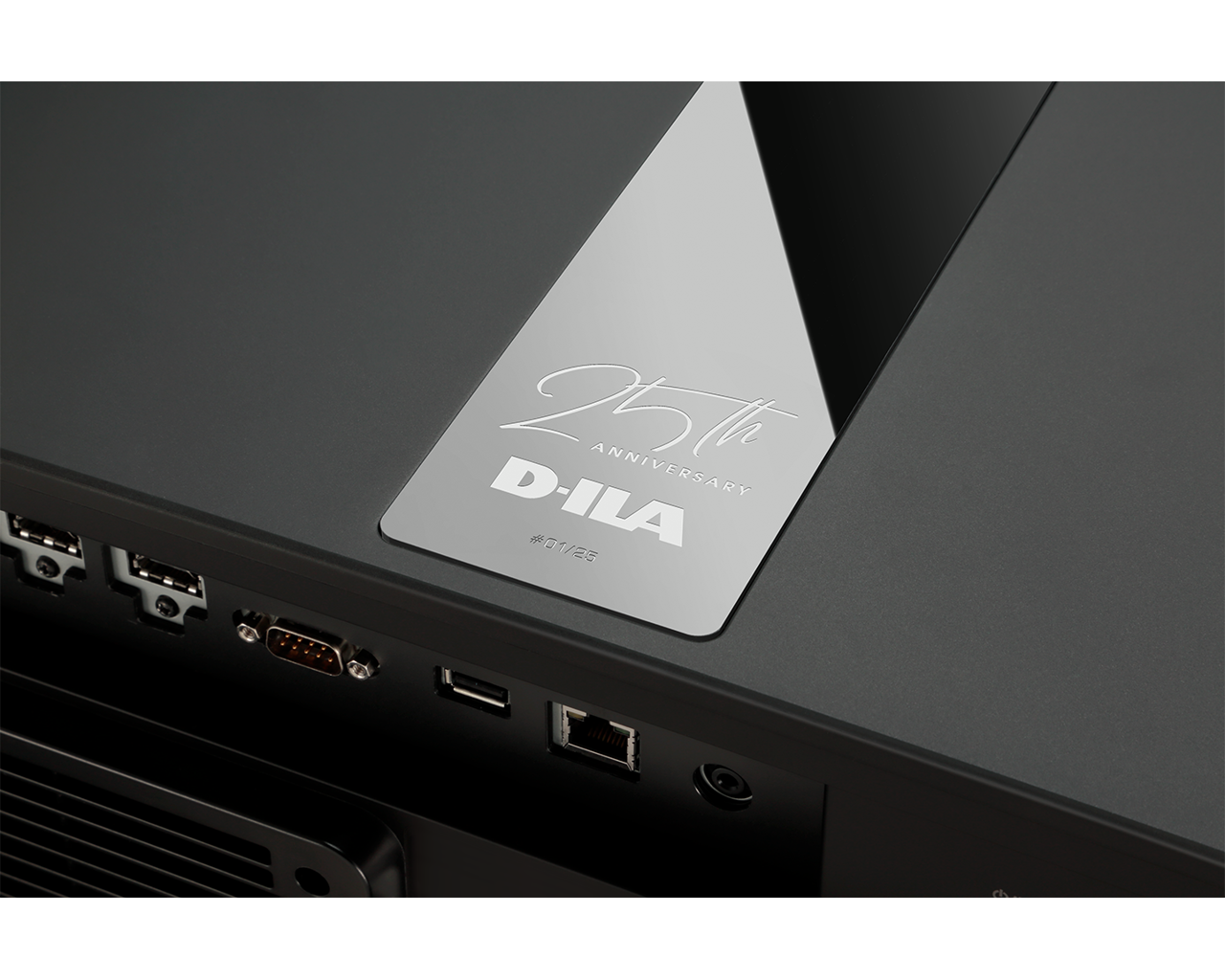

Connections

Trigger out

Yes

Connector

Mini-Jack (3,5mm)

Power

DC 12V / 100mA

3D Synchro

Yes

Connector

Mini DIN 3-pin

LAN

Yes

Connector

RJ45

RS-232

Yes

Connector

D-sub 9-pin

Service

Yes

Connector

USB (Type A) for firmware update.

3D

3D Capability

Yes

3D Versions

Frame Packing, Side-by-Side, Top & Bottom

Frame Packing Resolutions

720p 60/50, 1080p 24

Side-by-Side Resolutions

720p 60/50, 1080p 60/50/24, 1080i 60/50

Top & Bottom Resolution

720p 60/50, 1080p/24

3D Emitter (Optional)

Yes, PK-EM2

3D Glasses (Optional)

Yes, PK-AG3

Picture Settings

Picture Modes

Natural, Cinema, Film, HDR10+, Frame Adapt HDR, HDR10, HLG, Pan_PQ, 6 User modes

Color Temperatures

Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2

Gamma Processing Depth

12 bit

Gamma Adjust

HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, Film 1, Film 2, Pana_PQ, 3 Custom modes

Color Management

6-Axis adjustable CMS

MPC

Yes

Filmmaker Mode [7]

Yes

Low Latency Mode

Yes

Clear Motion Drive

Yes

Motion Enhance

Yes

Auto Calibration

Yes

Optional Probe needed

Yes

Installation Mode

Yes

Number of modes

10

Included settings

Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, Pincushion, and Aspect

Anamorphic Modes

4 Modes (A, B, C, D)

Control4 SDDP

Yes

Power & Environment

Power Requirement

AC100-240V, 50/60Hz

Projector in Use

440W

Standby

Eco Mode 0.20W

Network Standby

1.21W (LAN), 0.94W (RS-232C), 1.22W (LAN + RS232C)

Switchover time

Approx. 15 min. (To standby or networked standby; default)

Fan Noise

24 dB

Eco Mode

Yes

Standby Timer

Yes

Operating Temperature

5°C to 35°C

Operating Humidity

20% to 80%

Installation Angle

Horizontal +/- 5 degree / Vertical +/- 10 degree

Installation Height

Below 2,000 m

In the box

Remote Control

Yes, RM-MH27

User Manual

Yes

Power Cord

Yes

Batteries

Yes, 2 x AAA-size batteries

Dimensions & Weight

Product Dimensions (WxHxD)

500 x 234 x 528 (mm)

Product Weight

25.3 Kg

Package Dimensions (WxHxD)

640 x 415 x 665 (mm)

Package Weight

30.7 Kg

General Editing Note

General Note:

Simulated pictures.The values for weight and dimensions are approximate.E.&O.E. Design and specifications subject to change without notice.

[1] BLU-Escent is a registered trademark of JVCKENWOOD Corporation.
[2] ISF is a registered trademark of Imaging Science Foundation, Inc.
[3] HDR10+™ logo is a trademark of HDR10+ Technologies, LLC.
[4] This function is supported from software version v2.00 or higher.
[5] Theater Optimizer can be activated only when the projectors picture mode is set to Frame Adapt HDR.
[6] HDMI, the HDMI logo and High-Definition Multimedia Interface are registered trademarks of HDMI Licensing LLC.
[7] FILMMAKER MODE™ logo is a trademark of UHD Alliance, Inc
