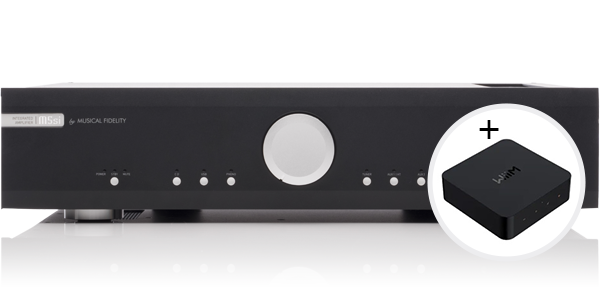

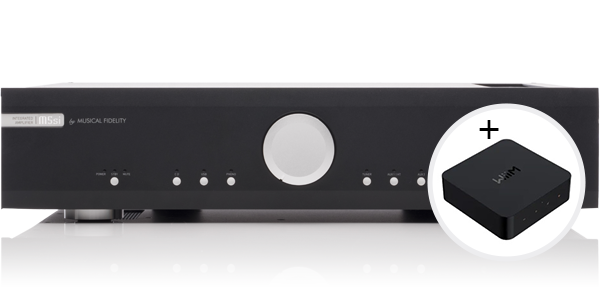

The M5si Stream is a sensational integrated amplifier. Now with a WiiM Pro as streaming add-on.
M5si Stream - Overview
The M5si is a real high end amplifier. At 150wpc, with high current delivery, it will drive virtually any loudspeaker easily. It has inputs for phono (MM), 4 line inputs and USB ‘B’ up to 24bit 96 kHz.
Fully Discrete Power Amplifier
With very low distortion, outstanding noise ratio and an extremely flat frequency response, it is configured as two independent monoblocs with a separate preamp, but all mounted on one pcb. Its technical performance is about equal to the M6si. The M5si produces an extraordinary sweet clear lucid sound. Significantly it was developed after our amazing legendary Nu-Vista 800. Consequently some of the Nu-Vista 800’s subtle pcb layout solutions have found their way into the M5si. And in turn those solutions stem from our legendary TITAN power amp.
Durata de livrare: 30 de zile
M5si Stream - Specifications
Amplifier
Power output: 150 Watts per channel into 8 Ohms; 270W into 4 ohms; 512W peaks into 2 ohms
THD (+ noise): <0.010 % typical 20Hz - 20 kHz
Signal to Noise Ratio: >100dB ‘A’ - weighted
Frequency Response: +0, –0.1dB, 10Hz to 20 kHz

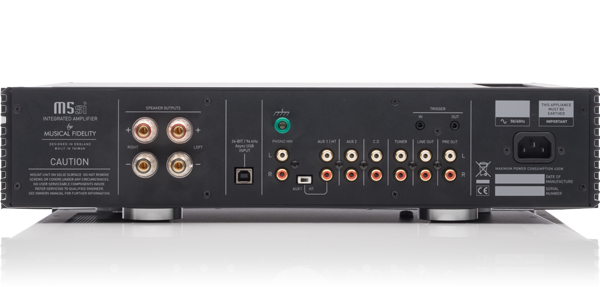

Inputs
4x Line Level RCA
1x USB type ‘B’ connector - asynchronous data stream at up to 24-bit/96kHz
1 x MM phono input
Trigger in
Phono Input
Sensitivity: 3mV nominal (MM)
Signal / noise ratio: >70dB ‘A’-weighted
Input impedance: 50k Ohms (MM)
Frequency response: RIAA/IEC ±0.5dB 20Hz-20kHz
Outputs
Trigger out
Fixed, line level output
Variable, preamp output
General
Dimensions - WxHxD (mm): 440 x 100 x 405
Weight (unpacked / packed): 14.6 kg/ 18.8 kg
M5si Stream - Downloads
Product Information Sheet
M5si Stream Information Sheet (English)
Manual
